WCDMA RX chain activation for manual measurement
Steps
1. In Phoenix, select Testing→WCDMA→Rx Control . The Phoenix Rx Control window opens.

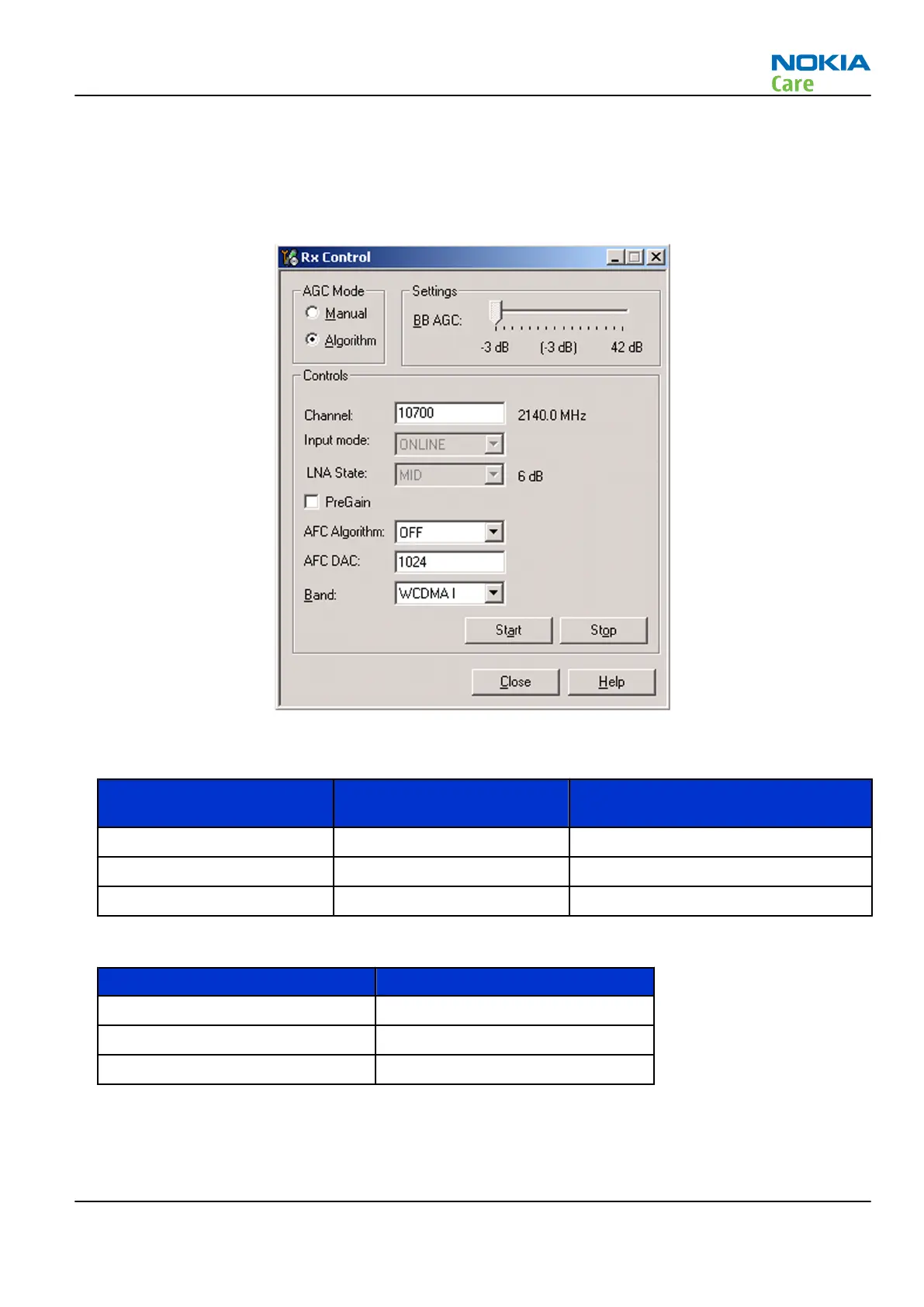

Figure 20 Phoenix Rx Control window with sample settings (WCDMA band I)
2. Make settings for the band to be tested according to the following table:
Band to be tested Phoenix Channel
Signal generator to antenna
connector
WCDMA I 10700 2141.0MHz
WCDMA IV 1675 2141.0MHz
WCDMA VIII 3013 943.6MHz
3. Make the following general settings (the same values for all bands):
Setting Value
AGC Mode Algorithm
AFC Algorithm OFF
AFC DAC 1024
4. Click Start to activate the settings.
If the settings are changed later on (for example, change of channel) you have to click Stop and Start
again.
