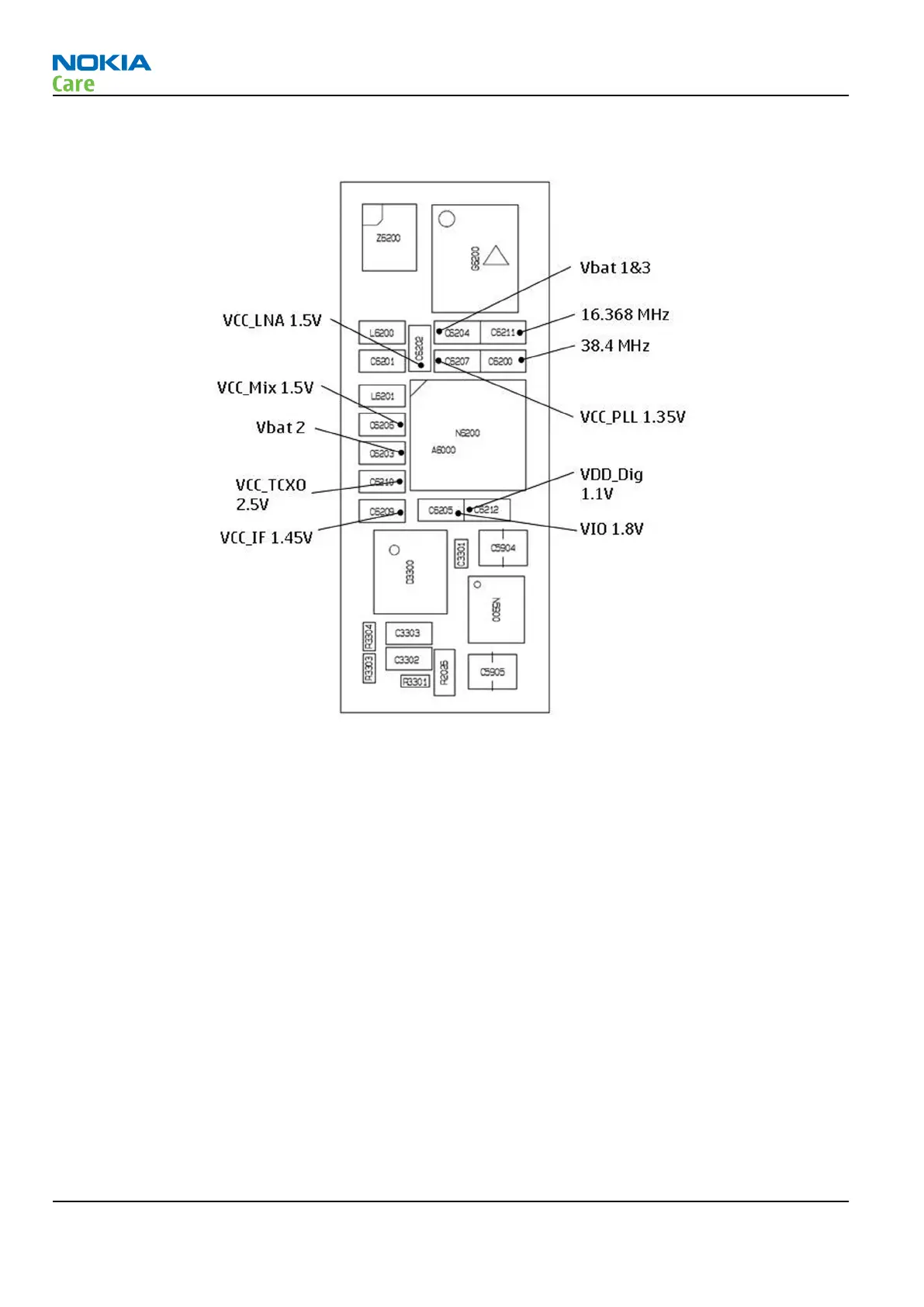

GPS layout and basic test points
Figure 11 GPS layout and basic test points
VBat, ASIC internal LDO voltages, and clocks are available as shown in figure above.
GPS settings for Phoenix
GPS control
Context
Use the following to test GPS using Phoenix.
Steps
1. Start Phoenix service software.
2. From the File menu, select Scan Product and check that the correct product version is displayed.
RM-509; RM-510; RM-511
