AFP-3030 Installation Manual — P/N DOC-01-037:B 25/08/2016 24
Connecting Power Sources and Outputs Installation

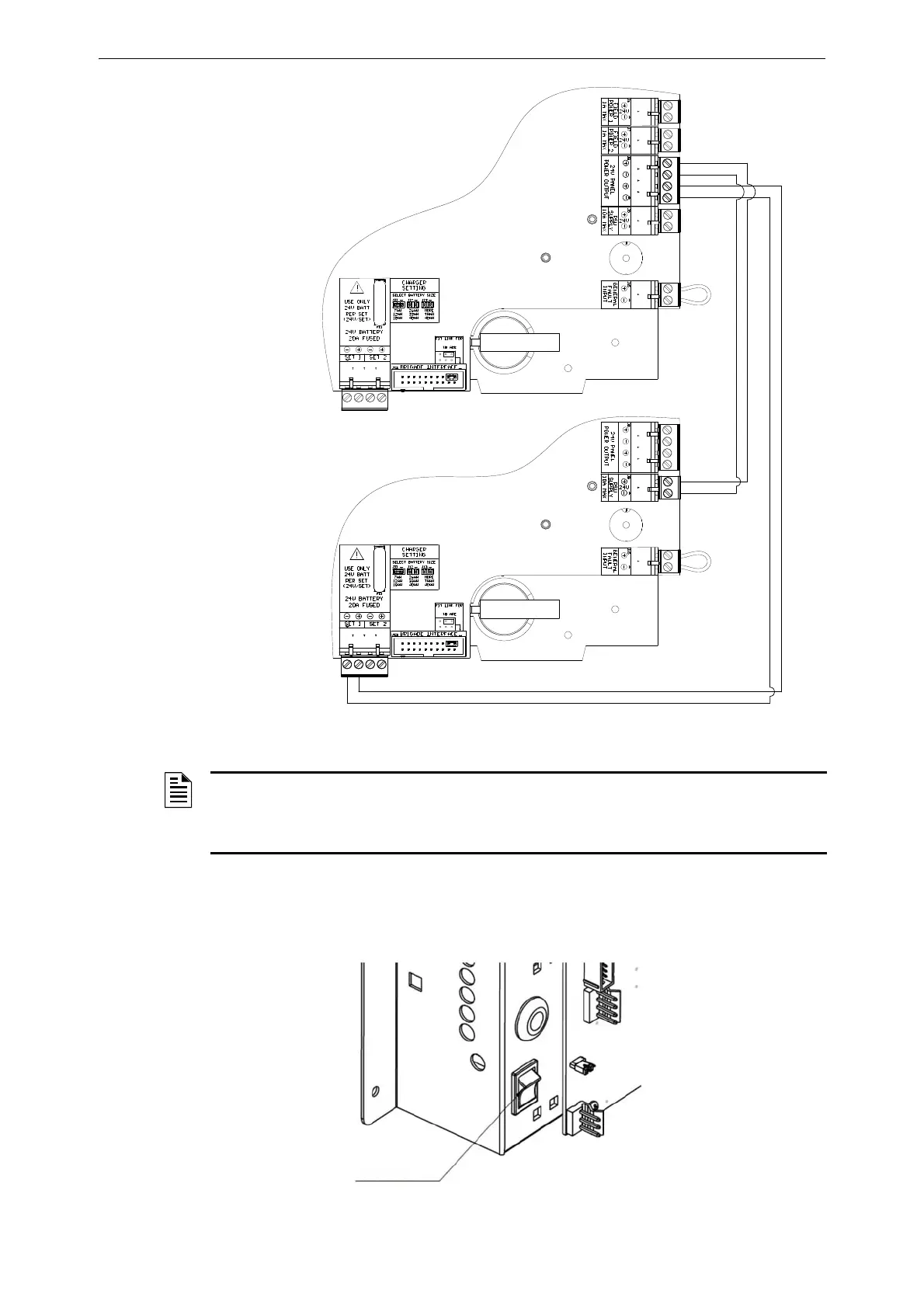

Figure 3.18 Connecting a Secondary CPU to the Main CPU within the same cabinet
3.10.3 Checking AC Power
Power up the fire panel by switching on the PSU switch. The device will be on when the PSU
switch is illuminated (red).
Figure 3.19 Location of the PSU Switch
Main CPU
(Locally Powered)
Red (+)
Black (-)
Red (+)
Black (-)
Secondary CPU
NOTE: The Remote/Secondary CPU must be programmed with the Main PS Node number of
the CPU from which it is drawing power. This node number must be separate from its own node
number. Refer to the ‘SUPERVISION’ section of the AFP-3030 Programming Manual for more
information.
