AFP-3030 Installation Manual — P/N DOC-01-037:B 25/08/2016 40
CAB900 Mounting Details Cabinet and Mounting Information
B.2 CAB900 Mounting Details

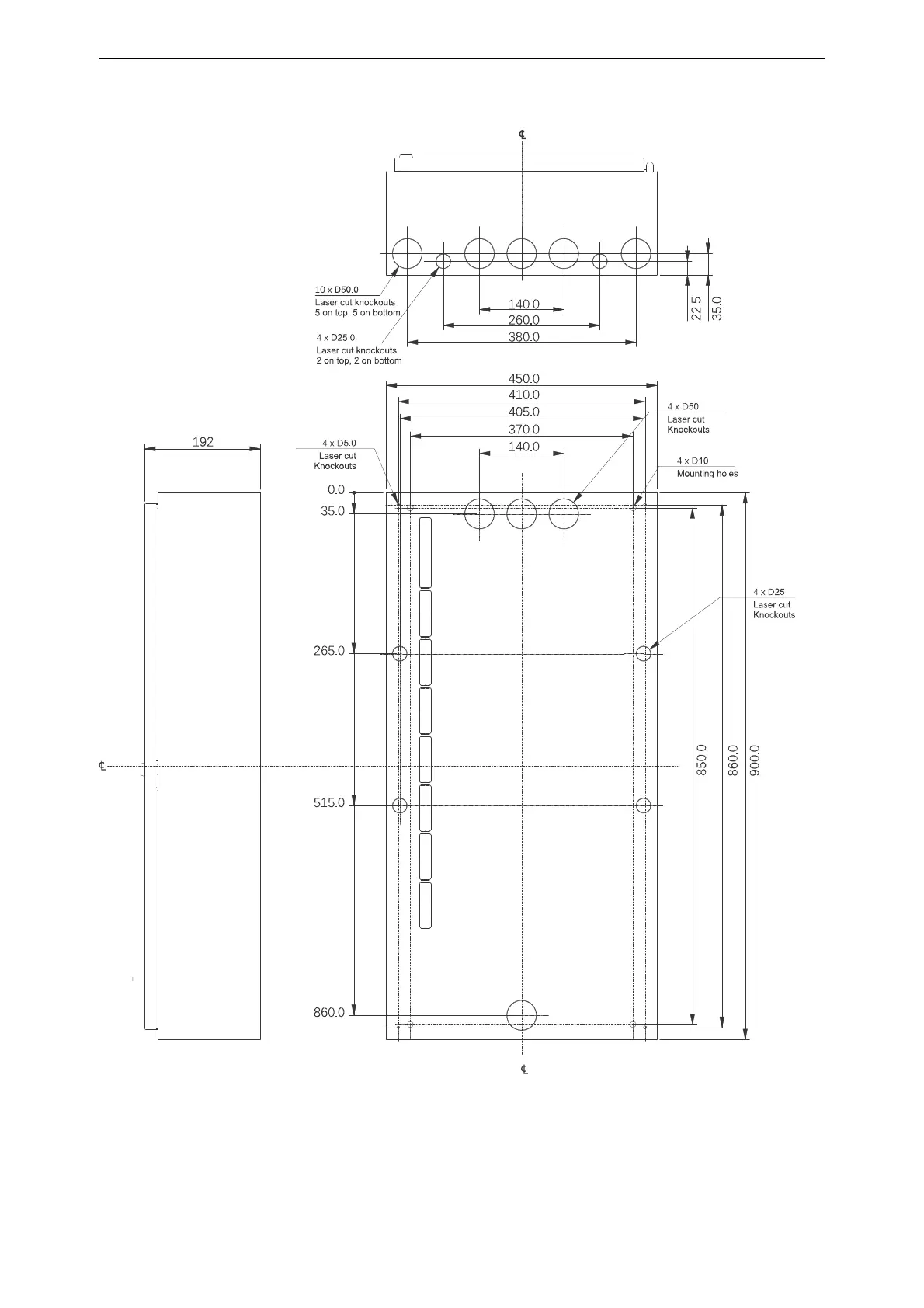

Figure B.2 CAB900 Mounting Details and Dimensions
NOTE: All dimensions in Millimeters
