ID50 Series Panel - Operating Manual
Automatic Alarms - What to do
9 997-264-000-8, Issue 8
January 2007
3.3 Fault
Automatic panel actions:
If a fault occurs, the panel automatically does the
following:
a. Operates the internal buzzer (2 sec. on, 1 sec. off).
b. Flashes the appropriate FAULT LEDs, including
numbered ZONE FAULT/ DISABLE / TEST LED(s) if
appropriate.
c. Operates any control outputs which are associated in
the Control-by-Event Rules with fault events.
Recommended operator actions:
1 A fault message typically displays information as
follows (not all items apply to all types of fault):
a. Fault condition.
b. Fault number currently displayed.
c. Total number of faults logged.
d. A text message describing the fault.
e. Zone Number.
f. Device Address.
g. Device Type.
h. Time fault was logged.
Depending upon the fault message, either:
i If the fault message relates to a specific loop device,
investigate whether the cause of the fault is
immediately apparent and can be corrected.
Note: Press the ‘
6
’ button to view additional zone text
information. To return to the fault message press
any numeric/cursor key (if no key is pressed within
ten [10] seconds the display automatically returns
to the fault message).
ii. If the fault message relates to a system fault condition,
as displayed below, note the full description of the
fault and notify the authorised servicing company.
Note: Items e, f, and g are not applicable.

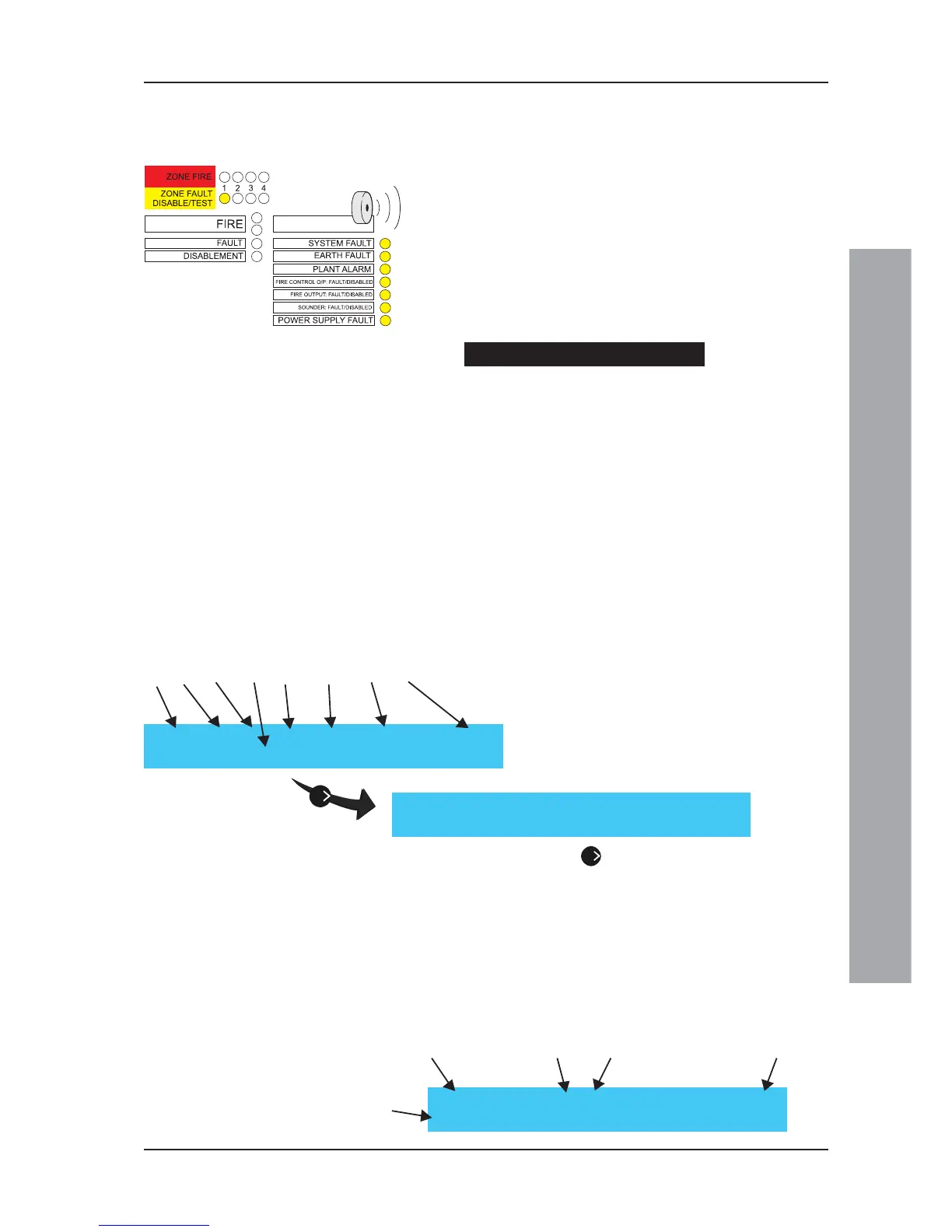

FAULT 01 / 03 Z01 M12 MCP 14:55
NO REPLY FROM DEVICE >
ABC D E F G H
FAULT 01 / 03 Z01 : M12 MCP 14:55
< - - - Zone Text - - - > < - - - Device Text - - - >
FAULT 01 / 03 14:55
EARTH FAULT
ABC
D
H
6
