ID50 Series Panel - Operating Manual
Operator Actions at Panel
39 997-264-000-8, Issue 8
January 2007
4.12.2 Devices - User Option

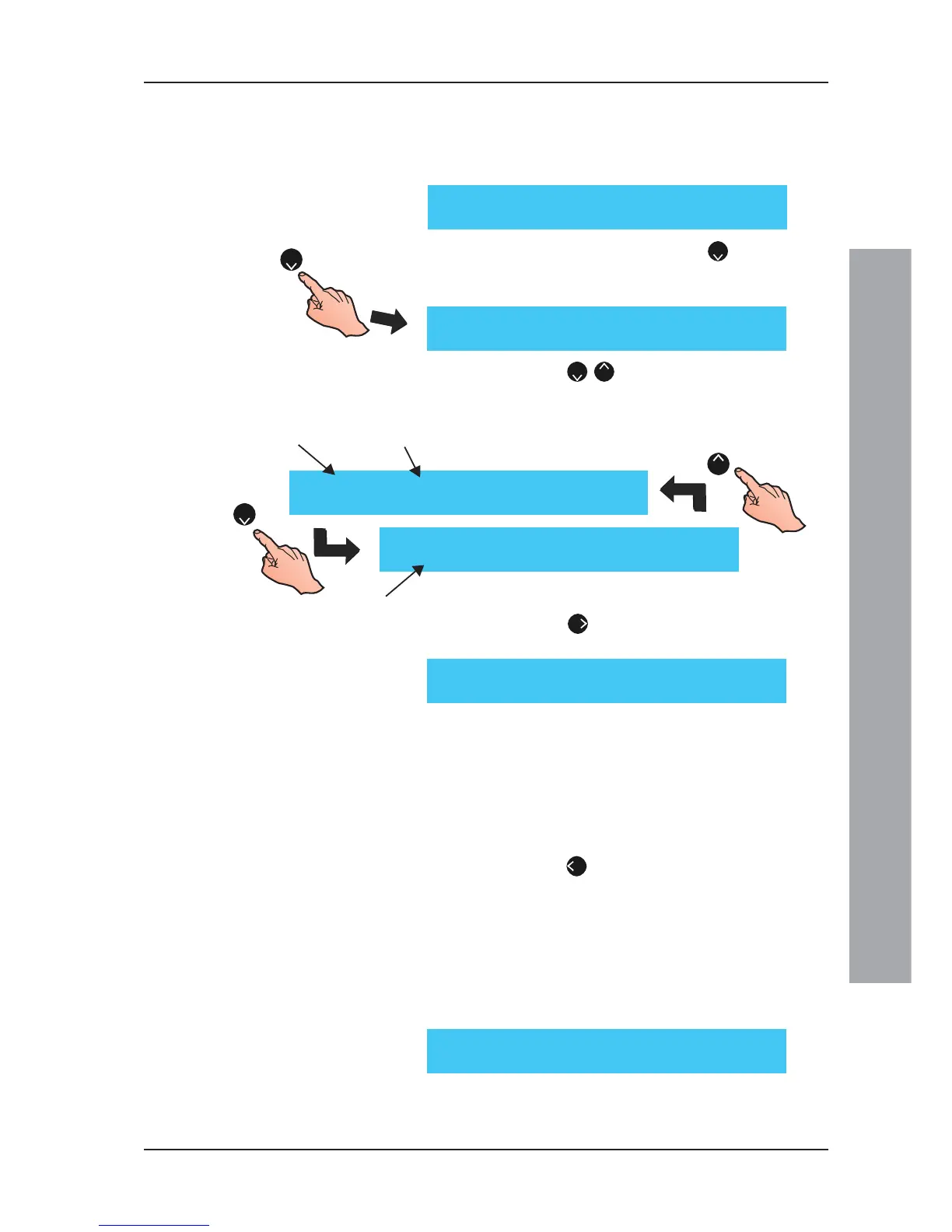

The Devices User Option allows the user to observe all
loop devices in turn. To view Devices, from the View Mode
menu:
1 On the numeric keypad, press the ‘
2
’ button to select
the Devices display.The LCD displays the last-viewed
sensor address:
2 Press the ‘
2
/
8
’ buttons to scroll through device
address entries until the desired sensor is displayed.
3 Press the
6
’ button to view additional device
information.
Note: Three percentage values are displayed [this is the
device’s alarm level status, e.g. 100% (default) is
equivalent to alarm]. The value on the left is the
current alarm status level. The other percentage
values are historical; the previous two alarm status
percentages are displayed, the one on the left being
the more recent.
4 Press the ‘
4
’ button to return to the View Mode
menu.
AWACS
TM
Devices (ID60 only)
The ID60 panel allows the configuration of all sensor
types, except HEAT sensors, to use the AWACS
TM
multi-
sensing algorithm. For these devices an additional screen
is available which displays the current percentage values
for alarm and pre-alarm.
[U0 View] 1:Log 2:Devices 3:Faults
4:Input Events 5:Disabled ↕ : More
[U0 Sensor 02 - OPT] >: Next ↕ : More
PW1:286 2:283 3:285 4:1003 5:0292 <:Exit
[U0 Sensor 03 - OPT] >: Next ↕ : More
PW1:286 2:283 3:285 4:1003 5:0292 <:Exit
Device
Type
Device
Address
Pulse Width
Time Periods
2
2
8
[U0 Sensor nn - OPT] >: Next ↕ : More
Level 050% -
〉〉
〉〉
〉 050% -
〉〉
〉〉
〉 050%
[U0 Sensor nn - AAA] >: Next ↕ : More
PW1:286 2:283 3:285 4:1003 5:0292 <:Exit
[U0 Sensor nn - AVS] >: Next ↕ : More
AWACS - Alarm: 000%, Prealarm: 000%
