ID50 Series Panel - Operating Manual
Automatic Alarms - What to do
5 997-264-000-8, Issue 8
January 2007
3 Automatic Alarms - What to do
Before any automatic alarms have been sounded the
panel only operates in display mode (quiescent state).
The user must then turn the keyswitch to the right or enter
a Level 2 access code to enable the panel’s pushbuttons.
Only one alarm condition can be displayed at a time
on the LCD. If fire alarms, faults and/or warning conditions
(Plant Alarm) are present on the panel at the same time,
they are displayed in the following priority order:
a. Fire Alarms.
b. Pre-alarms
c. Faults.
d. Warnings.
The alarm condition is registered in a log.
The user must then enter a Level 2 access code, or turn
the keyswitch to the right, to enable the panel’s
pushbuttons. When the Level 2 access code is active,
the ‘
2
/
8
’ buttons can be used to scroll through the
alarms and the ‘
4
’ button will display the first alarm.

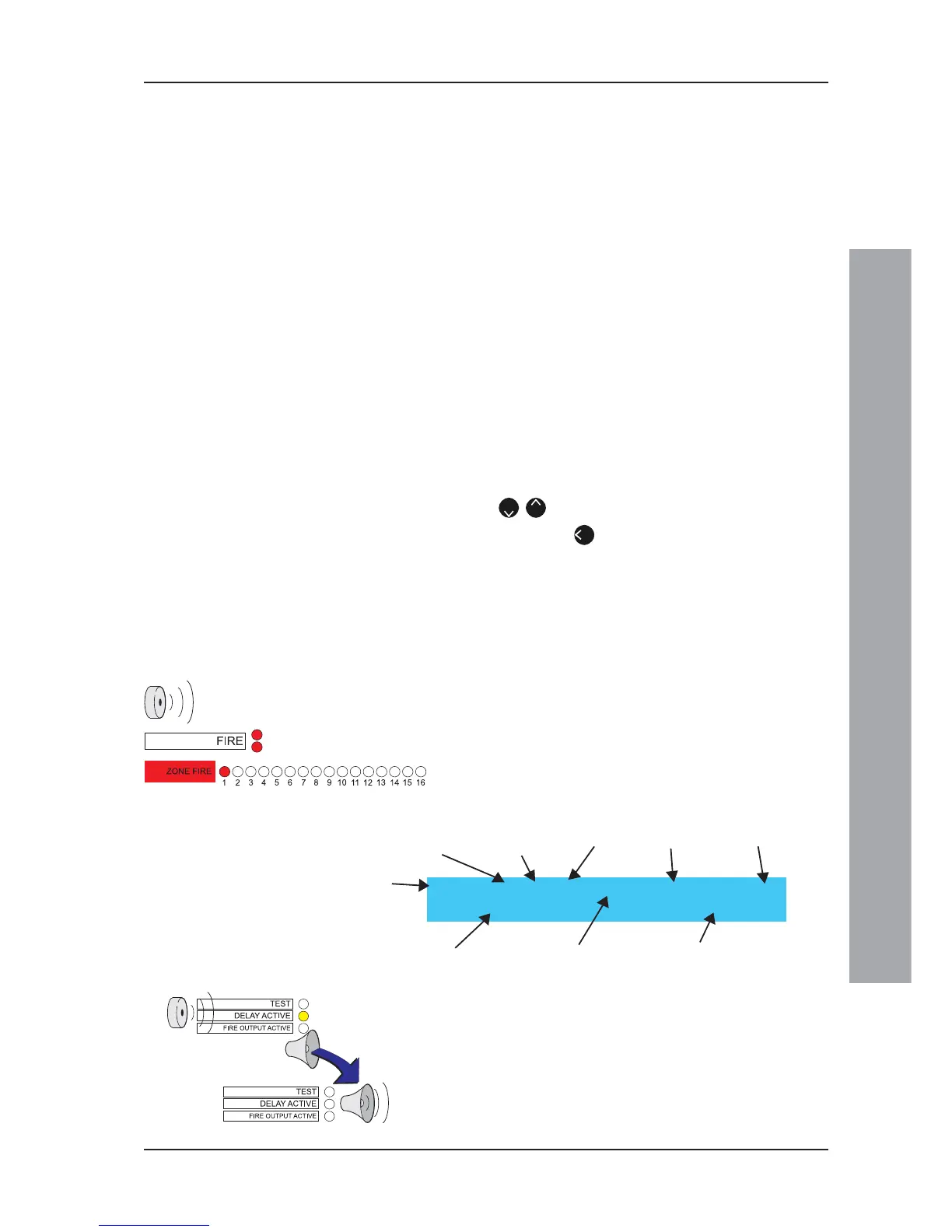

3.1 Fire
Automatic panel actions:
If the system detects a fire alarm, the panel always does
the following automatically:
a. Operates the internal (high-pitched) buzzer.
b. Illuminates the red FIRE LEDs, and the numbered
red ZONE FIRE LED.
c. Displays information on the LCD regarding the fire
condition. The information includes device address
and device location (see example below).
FIRE 02 / 05 Z01 M12 MCP 11:59
MAIN BUILDING BASEMENT ROOM 23
Note: If a delay is configured DELAYED is displayed on
the top line of the LCD. When a delay is active the
DELAY ACTIVE LED illuminates and the remaining
time before the first day mode delay expires is
displayed every 5 secs. The LED only extinguishes
when the delay period has expired.
d. Operates the sounders and output modules according
to the panel’s Control-by-Event (CBE) Rules
(configured during the Commissioning stage).
ALARM
CONDITION
ZONE
NUMBER
DEVICE
ADDRESS
ZONE TEXT
TIME OF LOGGED
ALARM CONDITION
DISPLAYED
ALARM
CONDITION
LOGGED
ALARM
CONDITIONS
DEVICE
TYPE
DEVICE
TEXT
To Next Page
