Notifier ID50 SERIES User Manual

ID50 Series Panel - Operating Manual
Panel Controls & Indicators
4997-264-000-8, Issue 8
January 2007

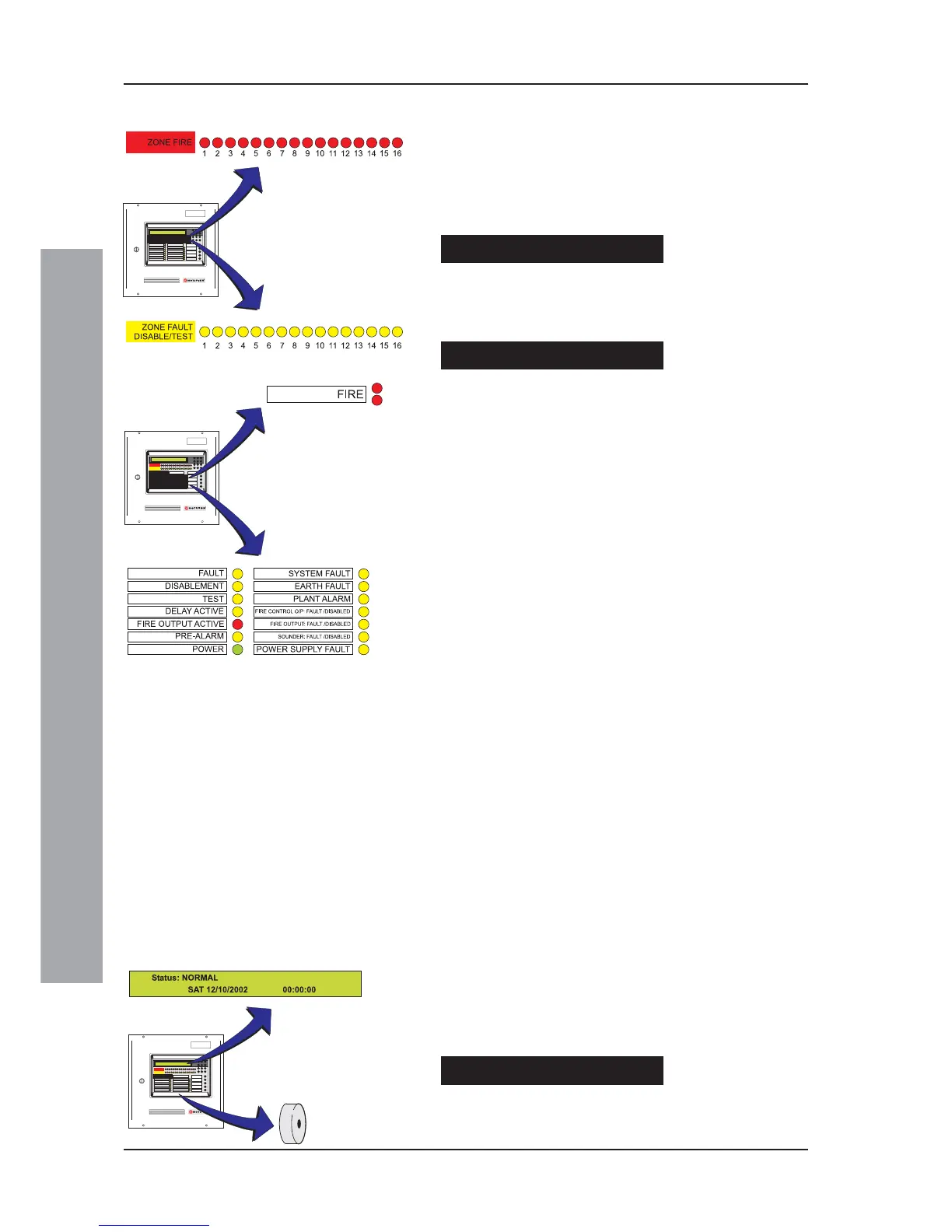

2.2 Indicators
The panel status indicators comprise three groups:
a. Zone Status LED indicators.
b. Panel/System LED indicators.
c. Visible/Audible indicators.
Zone Status LED Indicators
• ZONE FIRE - these LEDs indicate affected zone(s).
• ZONE FAULT/DISABLE/TEST - these LEDs indicate
affected zone(s).
Panel/System LED Indicators
• FIRE - these LEDs indicate a fire condition.
• Other System Status LEDs:
FAULT indicates a fault has been
detected by the panel.
DISABLEMENT indicates the presence of a
manually-configured
disablement.
TEST indicates a test is in progress.
DELAY ACTIVE indicates delays are active.
FIRE OUTPUT ACTIVE indicates fire outputs have
been operated.
PRE-ALARM
1
indicates a pre-alarm
condition exists.
POWER indicates status of power
supply.
SYSTEM FAULT indicates the CPU has reset
or a system fault has occurred.
EARTH FAULT indicates an earth fault has
occurred.
PLANT ALARM
2
indicates a fault or warning
from a plant-monitoring device.
FIRE CONTROL O/P: FAULT/DISABLED
indicates a fire control output
fault or disablement.
FIRE OUTPUT: FAULT/DISABLED
indicates a fire output fault or
disablement
SOUNDER: FAULT/DISABLED
indicates a sounder circuit
fault or disablement
POWER SUPPLY FAULT
indicates an unsatisfactory
power supply to the panel.
1
This LED is also configurable as SOUNDERS SILENCED.
2
This LED can be configured as: FAULT O/P: FAULT/
DISABLED.
Visible/Audible Indicators
• Liquid Crystal Display (LCD) - (Section 4.1.1).
• Internal Buzzer - (Section 4.1.2).
