ID50 Series Panel - Operating Manual
Operator Actions at Panel
33 997-264-000-8, Issue 8
January 2007
4.10.4 Delays - User Option
The Disable / Enable Delays option allows the user to
cancel or initiate the Delays function of the panel, which
is configured during commissioning (refer to 997-263
ID50 Series Panel Installation, Commissioning and
Configuration Manual, Sections 5.5.5.4 Primary/
Extend Delay Timers and 5.7.8 CBE Zones).
To Disable / Enable Delays:
1 Using the numeric keypad, press the ‘
4
’ button to
select the Disable/Enable Delays option:
2 At the prompt, press the ‘
5
’ button to confirm the
Delays operation. If delays are disabled, the LCD
prompts to enable delays, and vice versa.
When the delays are disabled, the DELAY ACTIVE
LED is extinguished. When the delays are enabled,
the LED is illuminated.
If a Day Mode time period is configured, the CBE Rule
delays will activate when Day Mode is started either:
a. Using the Disable / Enable menu, or
b. When Digital / ÜE Input 1 is operated (if this input
is configured during commissioning for Day Mode
Start).
These delays will be deactivated when Day Mode is
ended, either automatically at the end of the configured
Day Mode period, or by one of the following:
a. Using the Disable / Enable menu,
b. When the Digital / ÜE Input 1 is operated,
c. Delays are disabled using the Disable / Enable
menu.

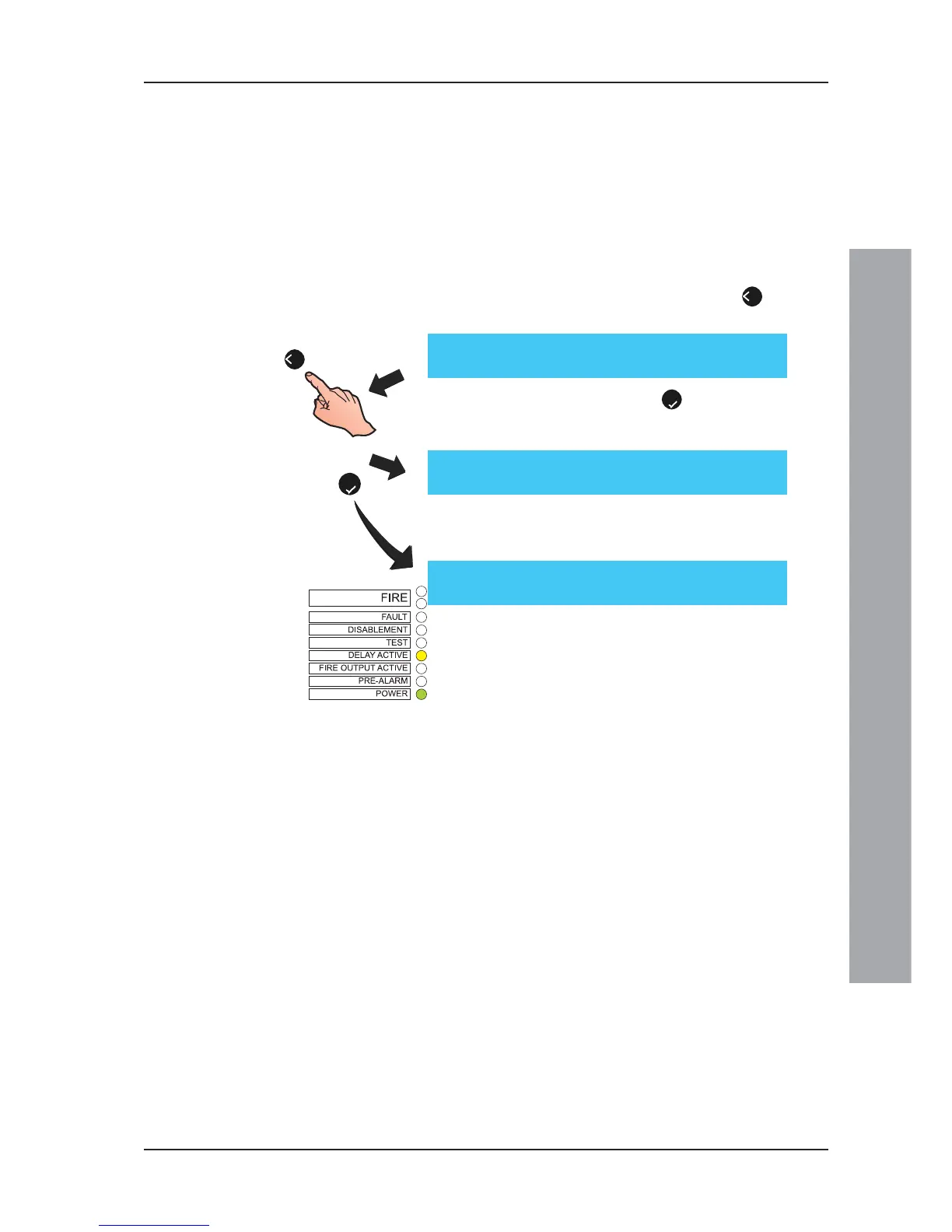

[U0 Disable/Enable] 1:Zone 2:Outputs
3:Day Mode 4:Delays
Disable Delays
Press ✓ to confirm <:Cancel
[U0 Disable/Enable] 1:Zone 2:Outputs
3:Day Mode 4:Delays
5
4
To Next Page
