INSTALLATION, USE & CARE INSTRUCTIONS
INSTALLATION
12
INSTALL THE UNIT
1. Run house power cable between service panel and unit
location. Stub out a 2-foot length of power cable inside
the cabinet. Insert the power cable in the unit through the
7/8” diameter strain relief previously installed.
NOTE: Not necessary if the optional HCK44 cord
connection kit is used.
2. Insert the unit in the cabinet, until you feel a ‘click’ from
both sides of the unit, confirming that the Ease of Install
Hooks rest on the top of the cabinet bottom sides , or
cabinet brackets or (FIG. 23). Move the unit from
left to right, from rear to front and up to ensure the Ease
of Install Hooks are retaining the unit inside the cabinet.
NOTE: The unit will be protruding below the cabinetry until
tightened.

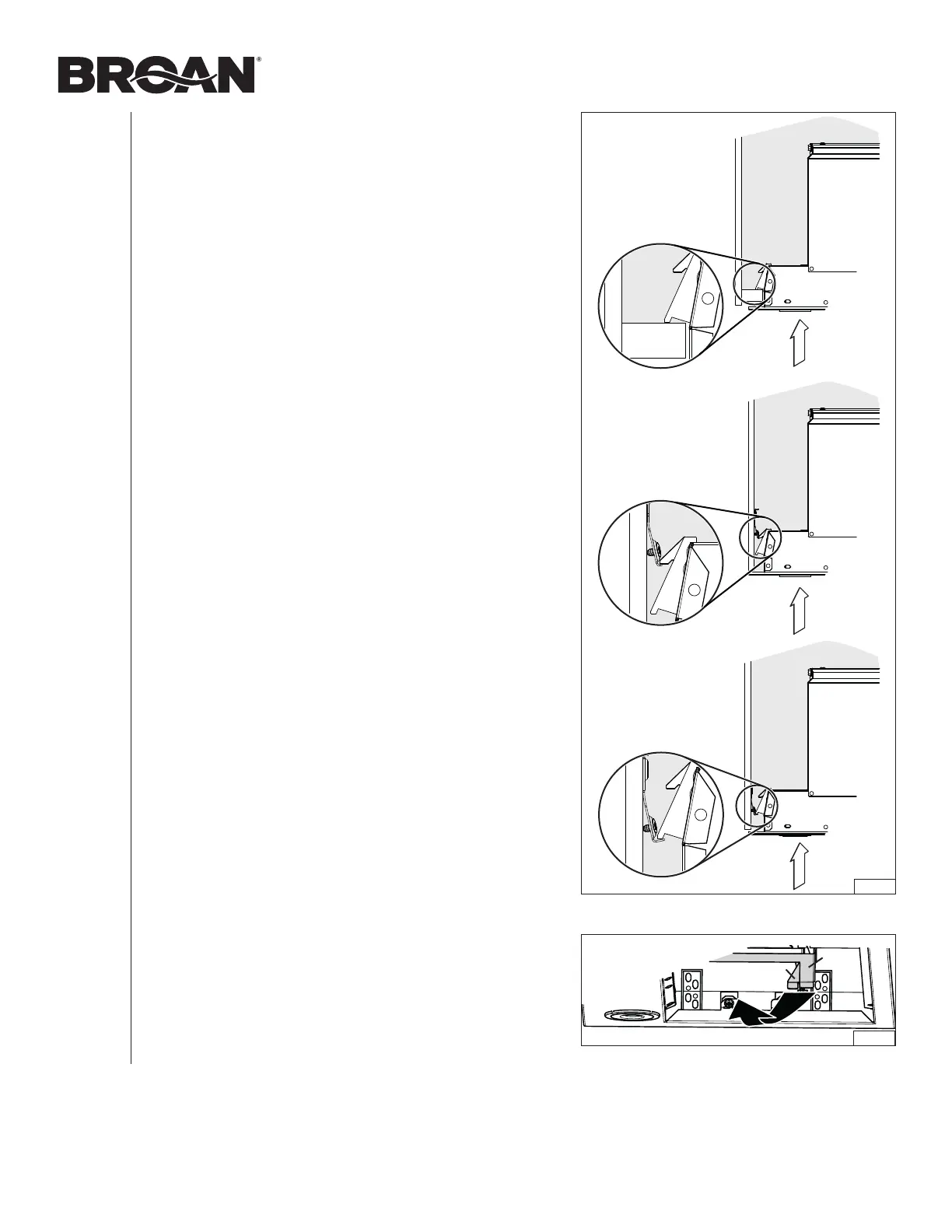

FIG. 23
FIG. 24
NOTE: If, for any reason, the unit has to be removed
from the cabinet, it is possible to disengage the
Ease of Install Hooks. To do so, while holding and
pushing on one side of the unit, lift simultaneously
the Ease of Install Hooks levers (1 and 2, grey
parts in FIG. 24) in the other side of the unit until
the hooks are retracted.
1
2
