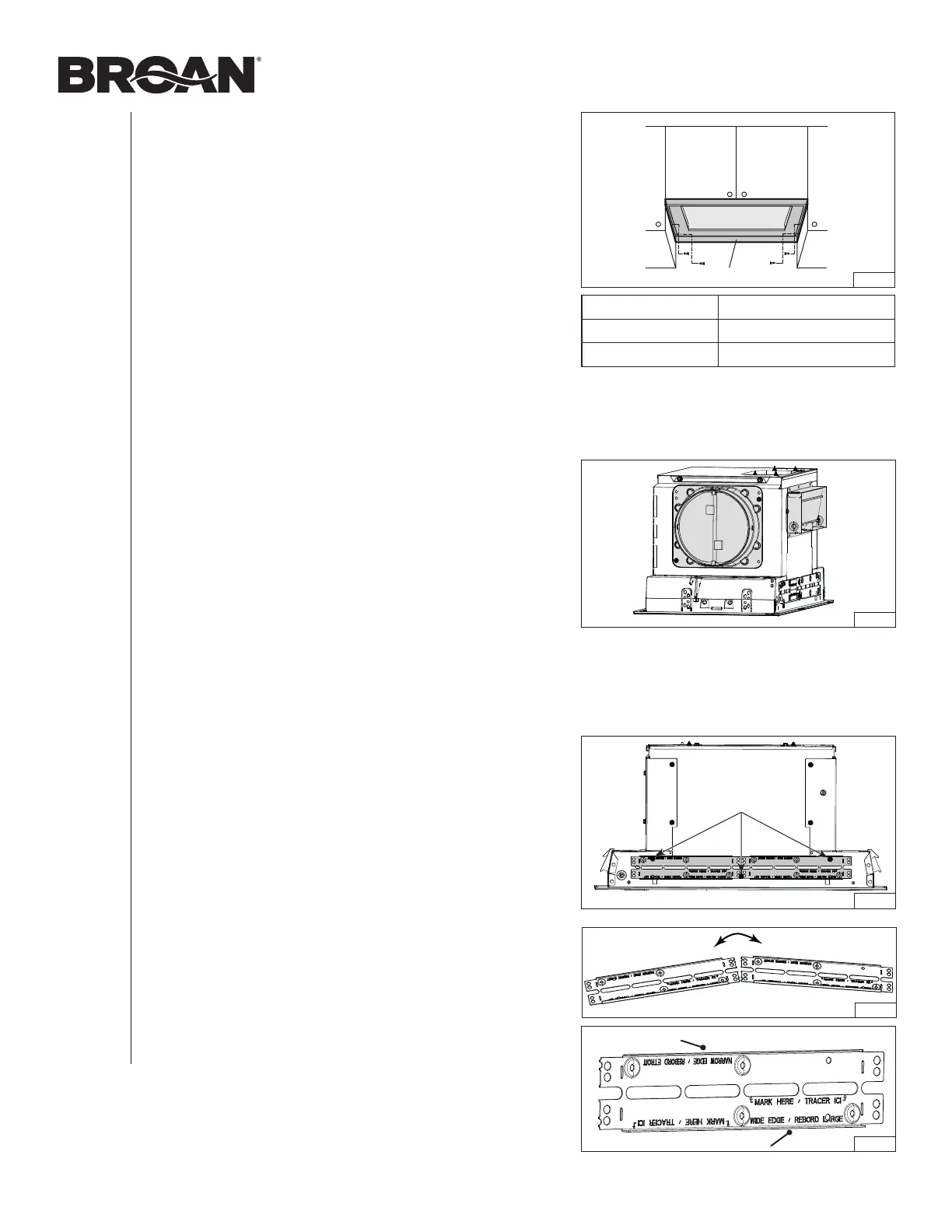

INSTALLATION, USE & CARE INSTRUCTIONS
INSTALLATION
6
OPTIONAL LINERS
For installations where the unit unit is less than 30” above
cooktop, this powerpack insert should be mounted into a metal
liner (FIG. 2) to protect cabinetry combustible material from
heat, in order to meet building code requirements. This will
allow easier cleaning and provide protection to the cabinetry.
Refer to table at right to find the liner model corresponding to
the cabinet style and width.
Visit www.broan-nutone.com or www.broan-nutone.ca to view
specific model information.
LINER MODEL CABINET NOMINAL WIDTH
LB30SS 30"
LB36SS 36"
REMOVE THE CABINET BRACKETS
Detach the cabinet brackets (grey part in FIG. 4) from the back
of the powerpack insert by removing its 3 retaining screws.
Discard the screws.
Fold up and down the bracket until it is split in two separate
parts (FIG. 5). Keep the brackets for possible further use.
NOTE: Both cabinet brackets have one wide edge and one
narrow edge (FIG. 6), to cover all installation
configurations depending on cabinet widths.
FIG. 5
Wide edge
Narrow edge
FIG. 6
REMOVE THE ADAPTER/DAMPER AND
6-IN. ROUND DAMPER ASSEMBLY
Detach and set aside the 3¼” x 10” adapter/damper and
the 6-in.-round damper assembly (grey parts in FIG. 3) from
back and one side of the powerpack insert by removing their
2 retaining screws. Discard the screws.
FIG. 3
METAL LINER
FIG. 2
FIG. 4
SCREWS
To Next Page
