INSTALL THE UNIT (CONT’D)
HORIZONTAL EXHAUST INSTALLATION ONLY (CONT’D)

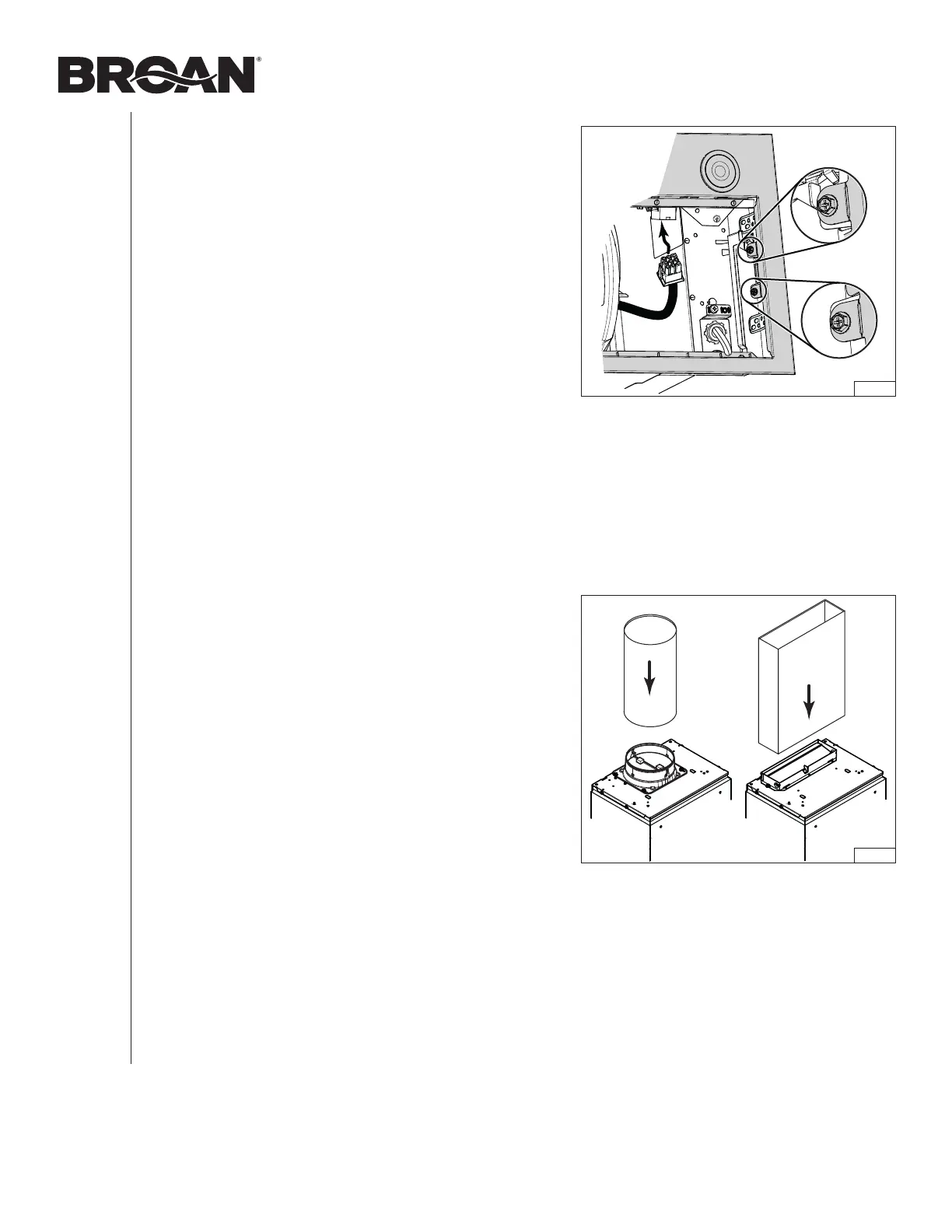

6. Reinstall and secure the faceplate to the unit using its
4 retaining screws (two per side, circled in FIG. 28). Plug
the blower cable to its connector on faceplate (FIG. 28).
FIG. 28
FIG. 29
CONNECT DUCTWORK
VERTICAL EXHAUST INSTALLATION ONLY
Ducted Installation
Use 6-in. round, 8-in. round (PM600SSV only) or
3¼” x 10” metal duct to connect the adapter damper on the
top of the unit to the ductwork above (FIG. 29, 8-in. round
not shown). Seal the joint using aluminum duct tape.
Non-Ducted Installation
A non-duct kit is required for this type of installation
(purchase separately, model number: HARKPM21).
To install, follow the instructions packed with the kit.
