NVIDIA DGX H100 Service Manual
18.6. Install Rack Mount Kit - Front
1. To install the rack mount kit on the rack, start with either side. We will describe the installation
of the left side.

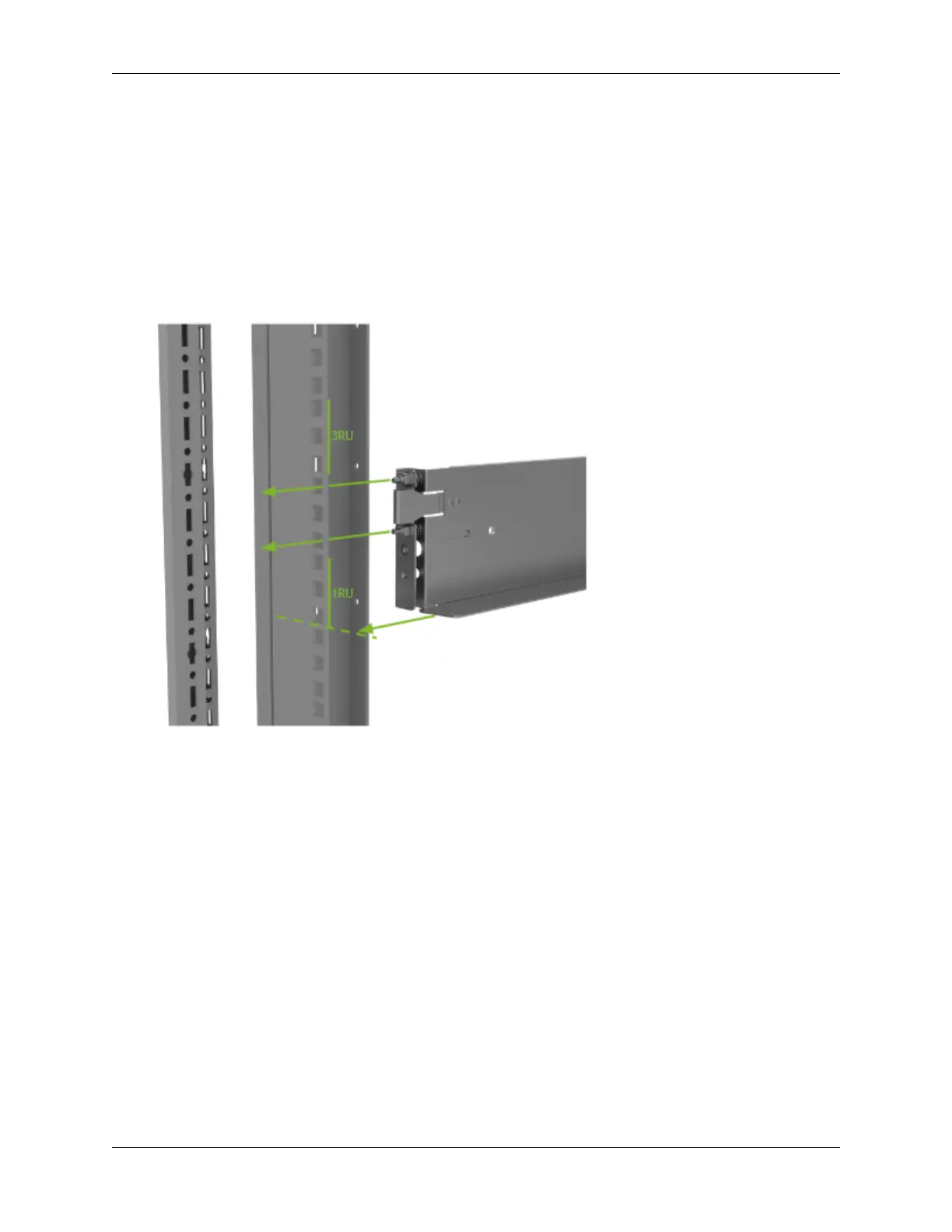

2. The rst step is to align the lip to the bottom of the rack unit where the system needs to be
installed as shown in the diagram.
3. Insert the spring loaded prongs into the rack post’s holes and open the clips to make sure the
prongs are inserted as far as they will go.
4. Close the clip and make sure the rack kit is securely attached to the rack.
5. Install the at head screw and the countersunk washer in the bottom hole as pictured to secure
the rack mount kit to the post.
114 Chapter 18. Rack Mount Kit Replacement
