PART NAMES AND FUNCTIONS
1-10

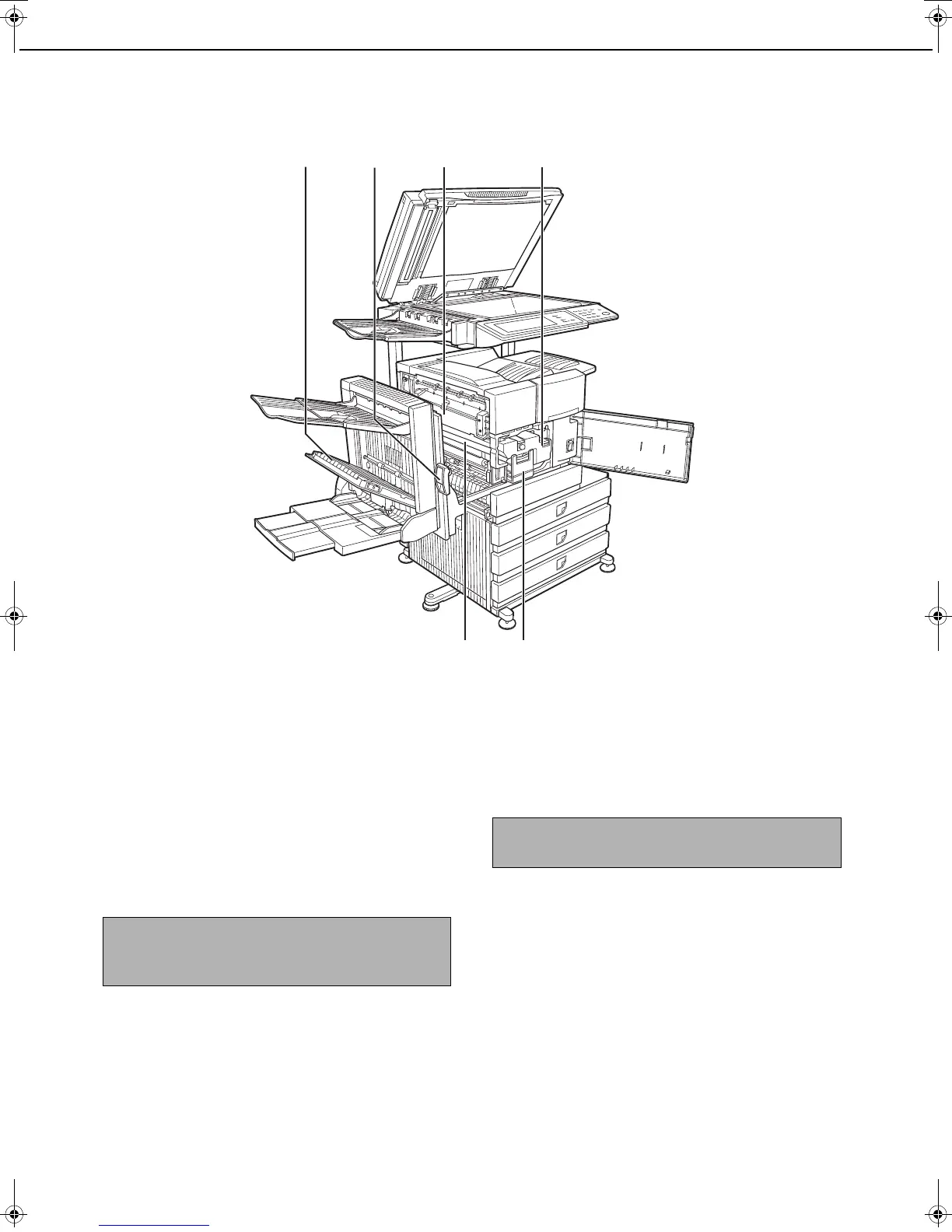

Interior
(
14
) Duplex module side cover
Open when a misfeed has occurred in the duplex
module.
(
15
) Side cover latch
Push up to open the side cover when a misfeed
has occurred in the main unit.
(
16
) Fusing unit
Lift up to open the side cover when a misfeed has
occurred in the main unit.
(
17
) Toner cartridge (drum/toner cartridge)
The toner cartridge must be replaced when
indicated on the operation panel. (See page 2-15)
(
18
) Photoconductive drum
Images are formed on the photoconductive drum.
(
19
) Cartridge lock lever
When replacing the drum, toner or developer
cartridge, turn down this lever and pull it out.
(14) (15) (16) (17)
(18) (19)
CAUTION
The fusing unit is hot. Take care in removing misfed
paper.
NOTE
Do not touch or damage the photoconductive drum.
Copy_SEC.book 10 ページ ２００７年９月１２日 水曜日 午後１時３３分
