SADDLE STITCH FINISHER
3-22

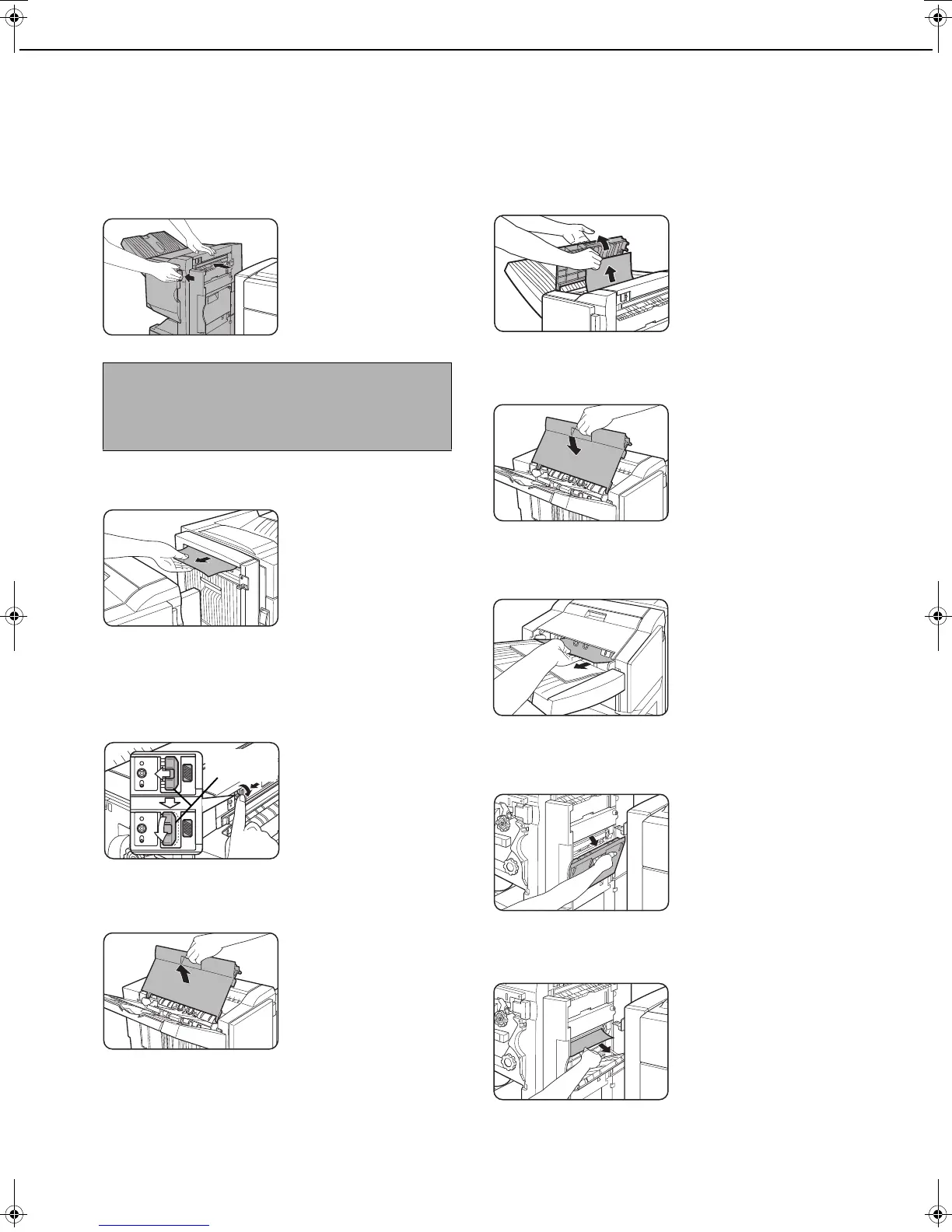

Misfeed in the saddle stitch finisher
When a misfeed occurs in the saddle stitch finisher, remove the misfed paper following the procedure below.
1
Press the detach button and separate the
saddle stitch finisher from the machine.
2
Remove any misfed paper from the
machine.
3
If there was no misfed paper in step 2, pull
roller rotating knob B on the punch unit
toward you and rotate it. (Only when an
optional punch unit is installed.)
Rotating roller rotating
knob B releases the
caught paper.
4
Open the top cover.
5
Remove the misfed paper.
Remove the paper
gently, taking care not to
tear it.
6
Close the top cover.
7
Remove any misfed paper from the stapler
compiler.
Remove the paper
gently, taking care not to
tear it.
8
Open the cover of the saddle stitch
section.
9
Remove the misfed paper.
Remove the paper
gently, taking care not to
tear it.
CAUTION
The saddle stitch finisher and the machine are
connected at the rear. Exercise caution when pulling
them apart.
Roller rotating
knob B
