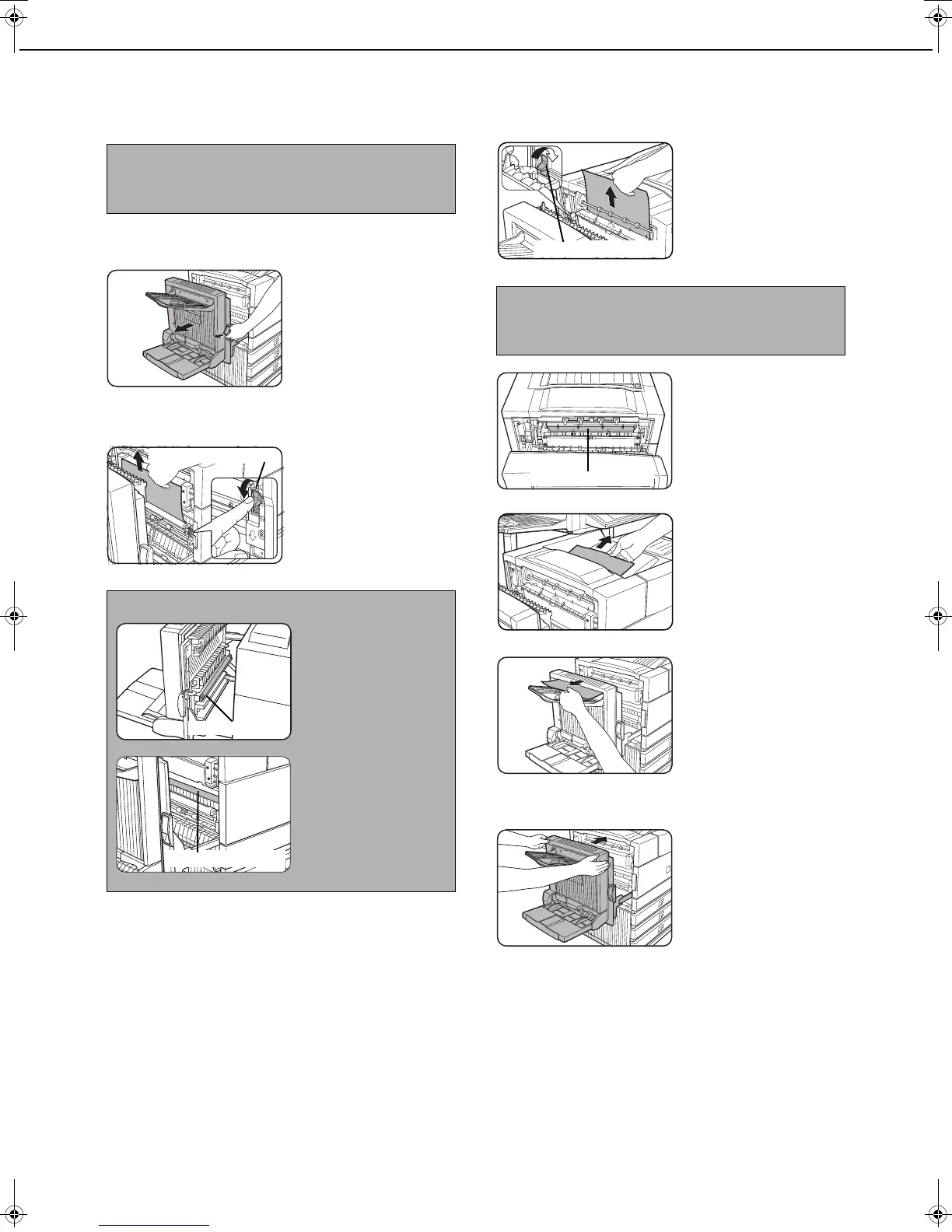

MISFEED REMOVAL
2-18
Misfeed in the transport area, fusing area, and exit area
1
Unlatch the duplex module and slide it to
the left.
Unlatch the module and
gently move the module
away from the machine.
If the machine is not
equipped with a duplex
module, open the side
cover similarly.
2
Remove the misfed paper as shown in the
illustrations below.
If paper is misfed in the
transport area, turn
roller rotating knob A in
the direction of the arrow
to remove the misfed
paper.
o
If paper is misfed in the
fusing area, turn roller
rotating knob B in the
direction of the arrow to
remove the misfed
paper.
If the misfed paper is
inside the fusing area,
turn down the fusing unit
open tab to open the
fusing unit and remove
the misfed paper.
If paper is misfed in the
exit area, remove it as
shown while taking care
not to tear the paper.
If the duplex module is
equipped with an exit
tray and paper is misfed
in the exit area, remove
the misfed paper as
shown in the illustration.
3
Gently close the duplex module.
If the machine is not
equipped with a duplex
module, close the side
cover.
After closing, confirm
that the misfeed
message is cleared and
the normal display
appears.
CAUTION
The fusing unit is hot. Take care in removing paper.
(Do not touch the metal parts.)
NOTE
Do not touch or
damage the transfer
roller.
Do not touch or
damage the
photoconductive
drum.
Roller rotating knob A
Transfer roller
Photoconductive drum
CAUTION
The fusing unit is hot. Take care in removing paper.
(Do not touch any metal parts.)
Roller rotating knob B
Fusing unit open tab
