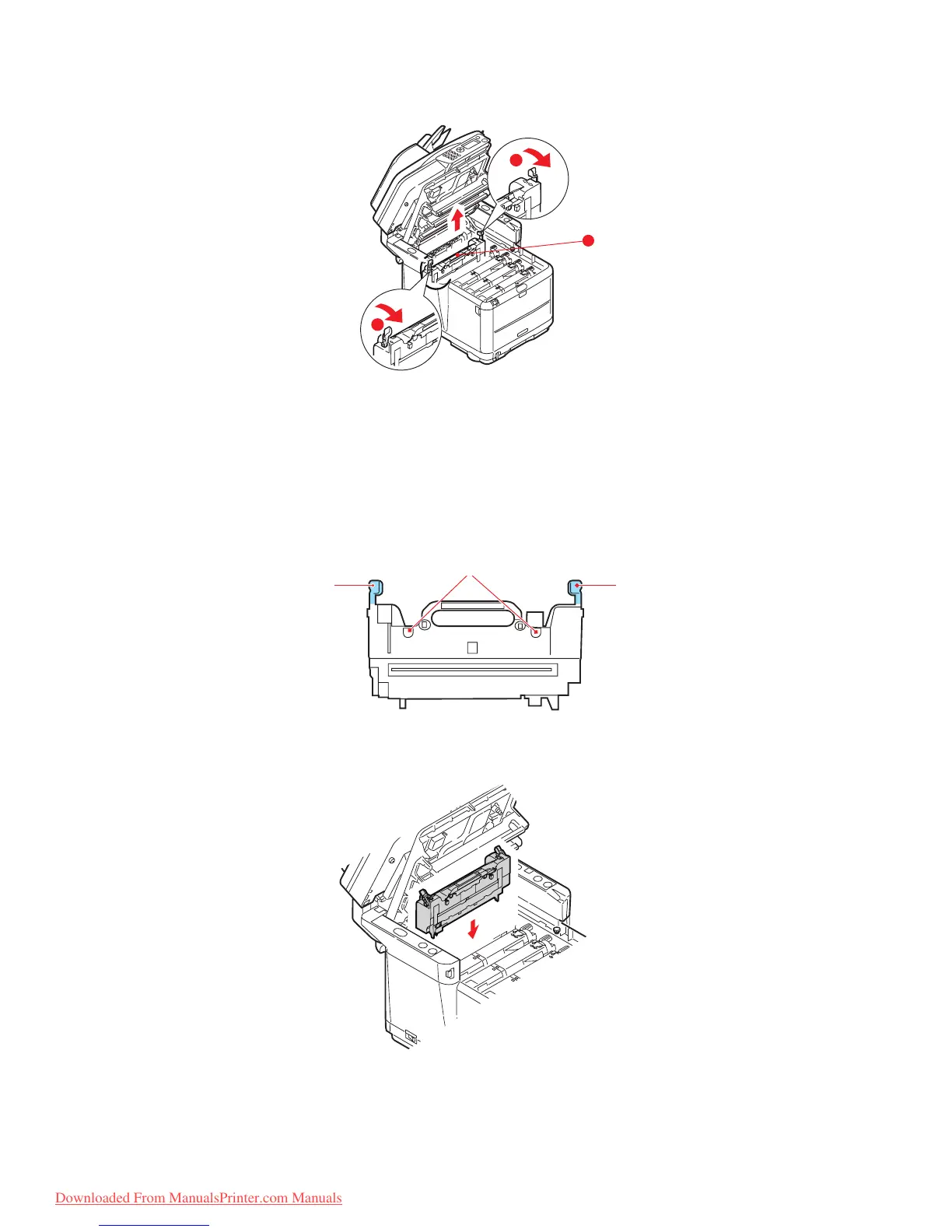

4. Identify the fuser handle (1) on the top of the fuser unit.
5. Pull the two fuser retaining levers (a) towards the front of the printer so that they
are fully upright.
6. Holding the fuser by its handle (1), lift the fuser straight up and out of the printer. If
the fuser is still warm, place it on a flat surface which will not be damaged by heat.
7. Remove the new fuser from its packaging and remove the transit material.
8. Holding the new fuser by its handle, make sure that it is the correct way round. The
retaining levers (2) should be fully upright, and the locating lugs (3) should be
towards you. There is one locating lug at each end of the fuser.
9. Holding the fuser by its handle, lower it into the printer, locating the two lugs into
their slots in the metal partition which separates the fuser area from the image
drums.
a
a
1
3
22
