18 CREATION OF A “PLAY BACK” CYCLE

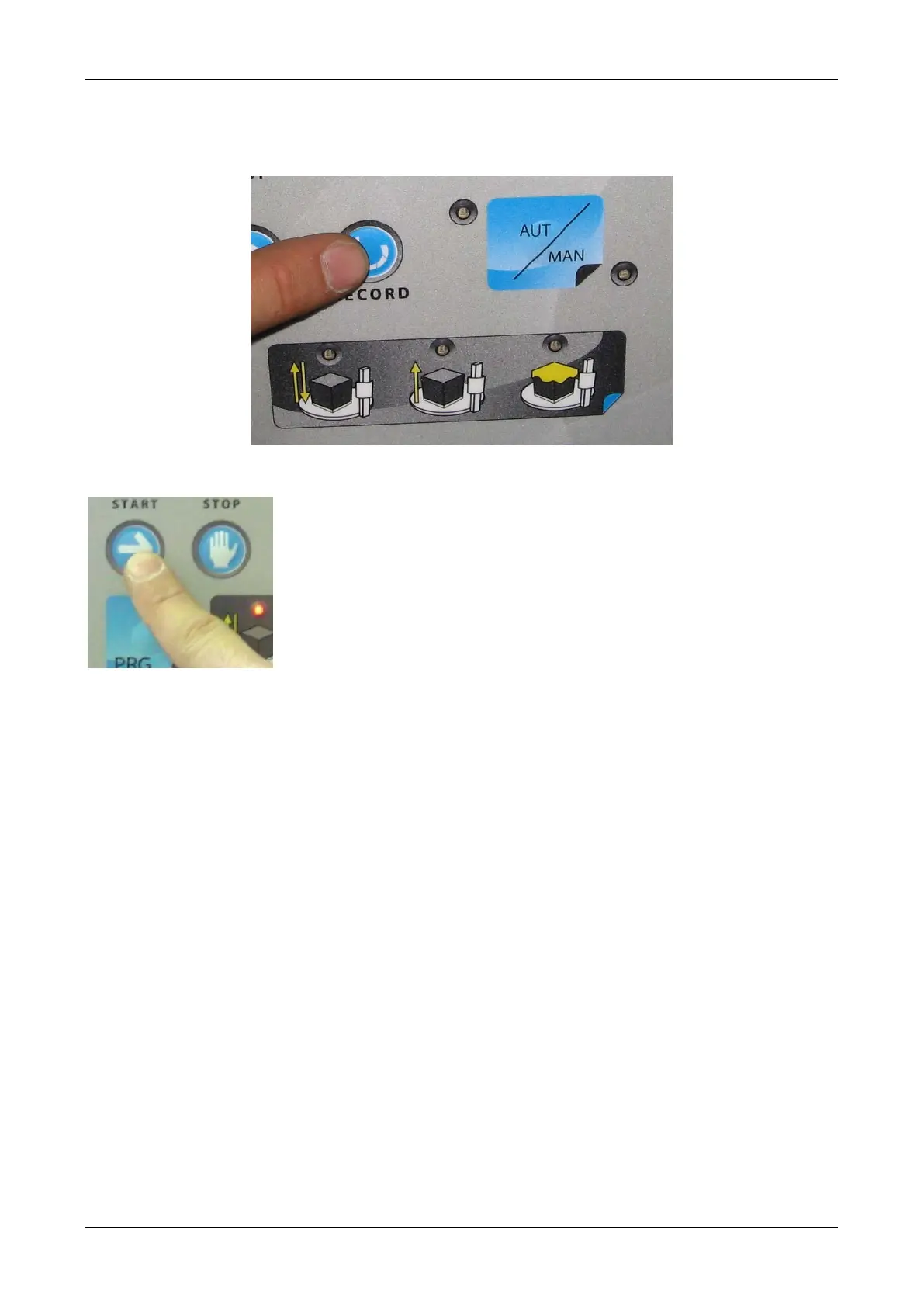

When the machine is at rest, press RECORD, the START led flashes and the “-rEc” wording is
displayed. The machine waits for the pressure of the START button to continue.
After the pressure of the START button, the wording “StArt” is displayed
and the STOP, TABLE ROTATION, CARRIAGE ASCENT and
CARRIAGE DESCENT leds flash. At this point, the user chooses how
to start the cycle, which must be recorded:
- Pressing STOP: the machine will start the registration with a pause.
- Pressing STOP, TABLE ROTATION, CARRIAGE ASCENT or
CARRIAGE DESCENT: the machine will start recording the relating
control of the pressed button.
After pressing one of the shown buttons, the registration starts, the three
standard cycle leds flash and the wording “StP” is displayed as well as
the number of steps, matching with the commands, ordered by the user.
Moment by moment, the machine detects the movement sequence,
their duration and the time elapsing between one movement and the
next one.
CRESCO UCP REV10 26
