Omron CP1E-ED User Manual

8 Using Expansion Units and Expansion I/O Units
8-4
CP1E CPU Unit Hardware User’s Manual(W479)

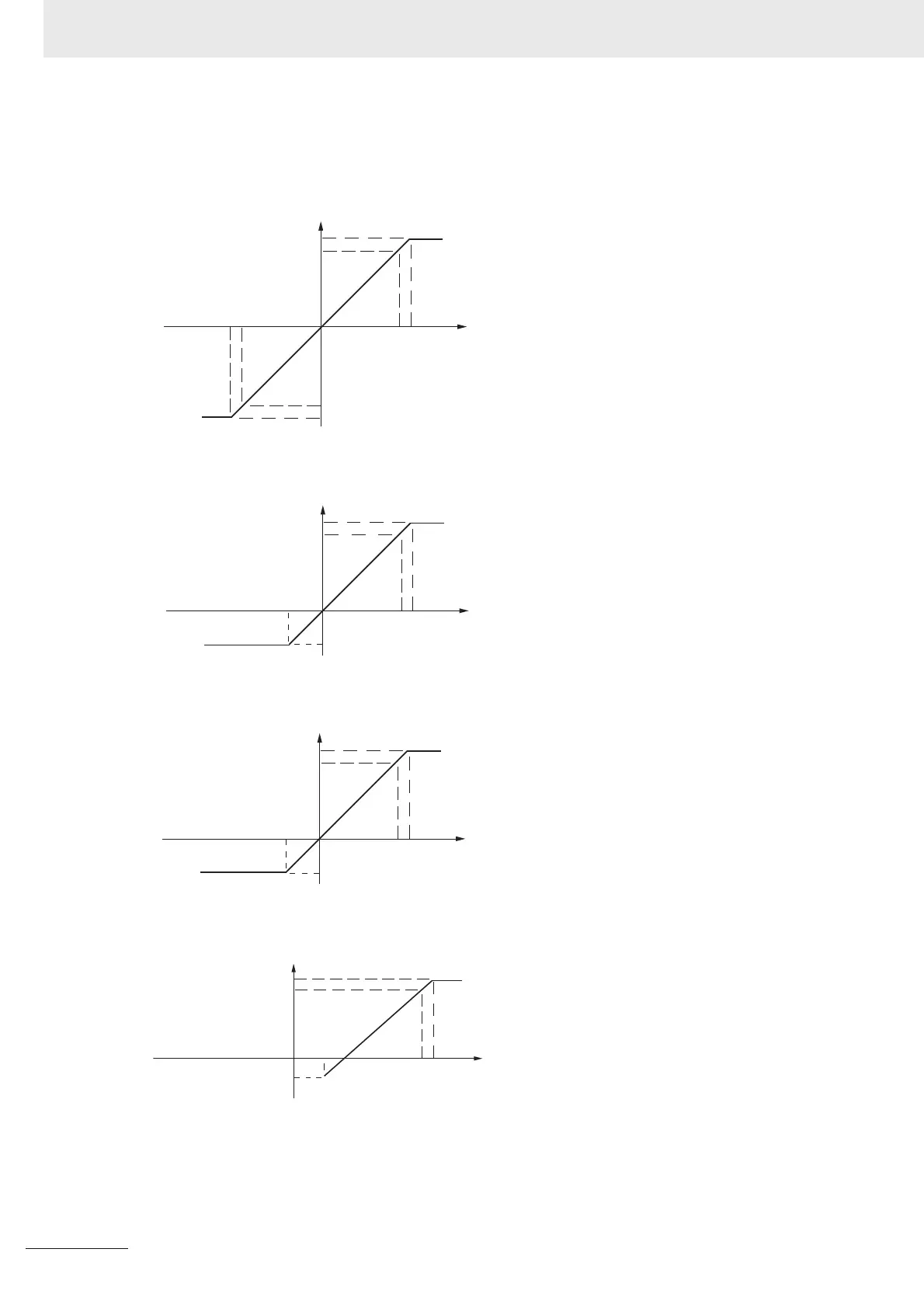

-10 to 10 V Inputs
Voltages in the -10 to 10 V range correspond to
hexadecimal values F448 to 0BB8 (-3,000 to
3,000). The range of data that can be converted is
F31C to 0CE4 hex (-3,300 to 3,300). A negative
voltage is expressed as a two’s complement.
0 to 10 V Inputs
Voltages in the 0 to 10 V range correspond to
hexadecimal values 0000 to 1770 (0 to 6,000).
The range of data that can be converted is FED4
to 189C hex (-300 to 6,300). A negative voltage
is expressed as a two’s complement.
0 to 5 V Inputs
Voltages in the 0 to 5 V range correspond to
hexadecimal values 0000 to 1770 (0 to 6,000).
The range of data that can be converted is FED4
to 189C hex (-300 to 6,300). A negative voltage
is expressed as a two’s complement.
1 to 5 V Inputs
Voltages in the 1 to 5 V range correspond to hexa-
decimal values 0000 to 1770 (0 to 6,000). The
range of data that can be converted is FED4 to
189C hex (-300 to 6,300).Voltage in the range of 0.8
to 1 V is expressed as a two’s complement.
If an input is below the range (i.e., less than 0.8 V),
the open-circuit detection function is activated and
the data becomes 8,000.
0 V 10 V
11 V
−11 V
−10 V
Converted data
Hexadecimal (Decimal)
0CE4 (3300)
0BB8 (3000)
0000 (0)
F448 (
−3000)
F31C (−3300)
0 V 10 V
10.5 V
−0.5 V
Converted data
Hexadecimal (Decimal)
189C (6300)
1770 (6000)
0000 (0)
FED4 (−300)
0 V 5 V
5.25 V
−0.25V
Converted data
Hexadecimal (Decimal)
189C (6300)
1770 (6000)
0000 (0)
FED4 (−300)
1 V 5 V
5.2 V
0.8 V
Converted data
Hexadecimal (Decimal)
189C (6300)
1770 (6000)
0000 (0)
FED4 (−300)
