2 Basic System Configuration and Devices
2-4
CP1E CPU Unit Hardware User’s Manual(W479)

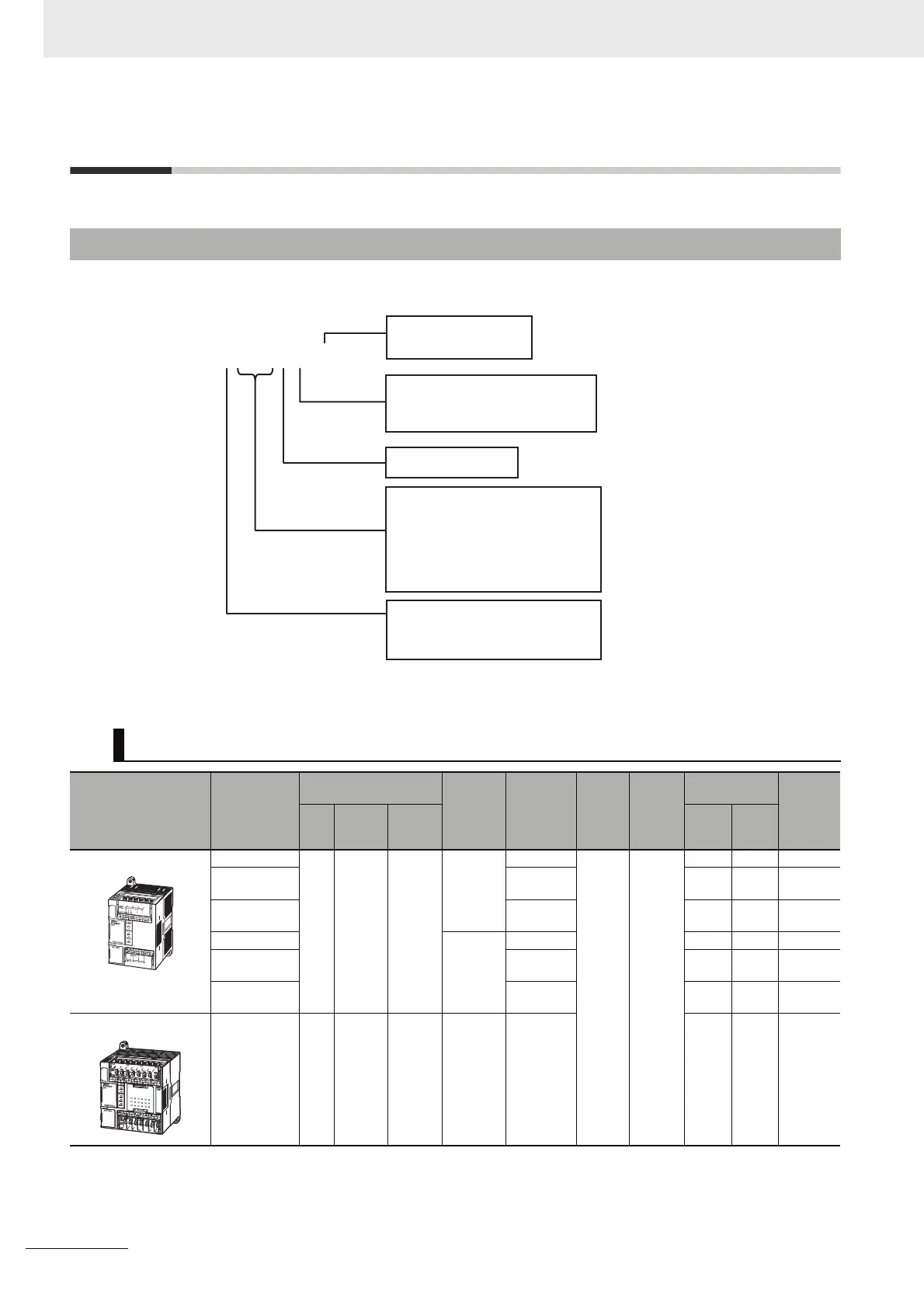

2-2 CPU Units
This section describes the models of CP1E CPU Units.
The CP1E CPU Unit model numbers are configured as shown below.
The following is a list of available CP1E CPU Unit models.
2-2-1 CPU Unit Models
E-type CPU Units
Name and appearance Model number
Number of built-in I/O
points
Power
supply
specifica-
tions
Output type
Pro-
gram
capacity
DM Area
capacity
Current
consumption
Weight
Total
Number
of
inputs
Number
of
outputs
5 VDC 24 VDC
CPU Unit with 10 I/O Points CP1E-E10DR-A 10 6 4 AC power
supply 100
to 240 VAC
Relays 2K steps 2K words 0.08A 0.04A 300g max.
CP1E-E10DT-A Sinking tran-
sistor
0.11A 0.00A 280g max.
CP1E-E10DT1-A Sourcing
transistor
0.11A 0.00A 280g max.
CP1E-E10DR-D DC power
supply
24VDC
Relays 0.08A 0.04A 280g max.
CP1E-E10DT-D Sinking tran-
sistor
0.11A 0.00A 260g max.
CP1E-E10DT1-D Sourcing
transistor
0.11A 0.00A 260g max.
CPU Unit with 14 I/O Points CP1E-E14DR-A 14 8 6 Relays 0.16A 0.07A 350g max.
CP1E-D-
Power supply
A: AC power supply
D: DC power supply
Output type
R: Relays outputs
T: Transistor outputs, sinking
T1: Transistor outputs, sourcing
Input type
D: DC inputs
I/O capacity
14: 14 I/O points (8 inputs, 6 outputs)
Unit type
E: Basic model
N: Application model
NA: Application model with built-in analog
10: 10 I/O points (6 inputs, 4 outputs)
30: 30 I/O points (18 inputs, 12 outputs)
20: 20 I/O points (12 inputs, 8 outputs)
40: 40 I/O points (24 inputs, 16 outputs)
60: 60 I/O points (36 inputs, 24 outputs)
E
E
