Overview
1.1 Overview of Communications Methods
1-7
■ Communications Parameters
The E5CN/AN/EN/GN’s communications specifications are set in the
communications setting level. These parameters are set on the E5CN/
AN/EN/GN’s front panel. The following table shows the communications
parameters and their setting ranges.
Highlighted values indicate default settings.
Note: The communications data length for Modbus must be 8 bits.
● Communications Parameter Setup
Before you carry out communications with the E5CN/AN/EN/GN, set up
the communications unit number, baud rate, and other parameters by
carrying out the following procedure. For details on operations other
than communications parameter setup, refer to the E5CN/E5AN/E5EN/
E5GN Digital Temperature Controllers User's Manual Basic Type (Cat.
No. H156) for the devices being used.
1. Press the O Key for at least three seconds to move from the
“operation level” to the “initial setting level.”
2. Press the O Key for less than one second to move from the “initial
setting level” to the “communications setting level.”
3. Select the parameters as shown below by pressing the M Key.

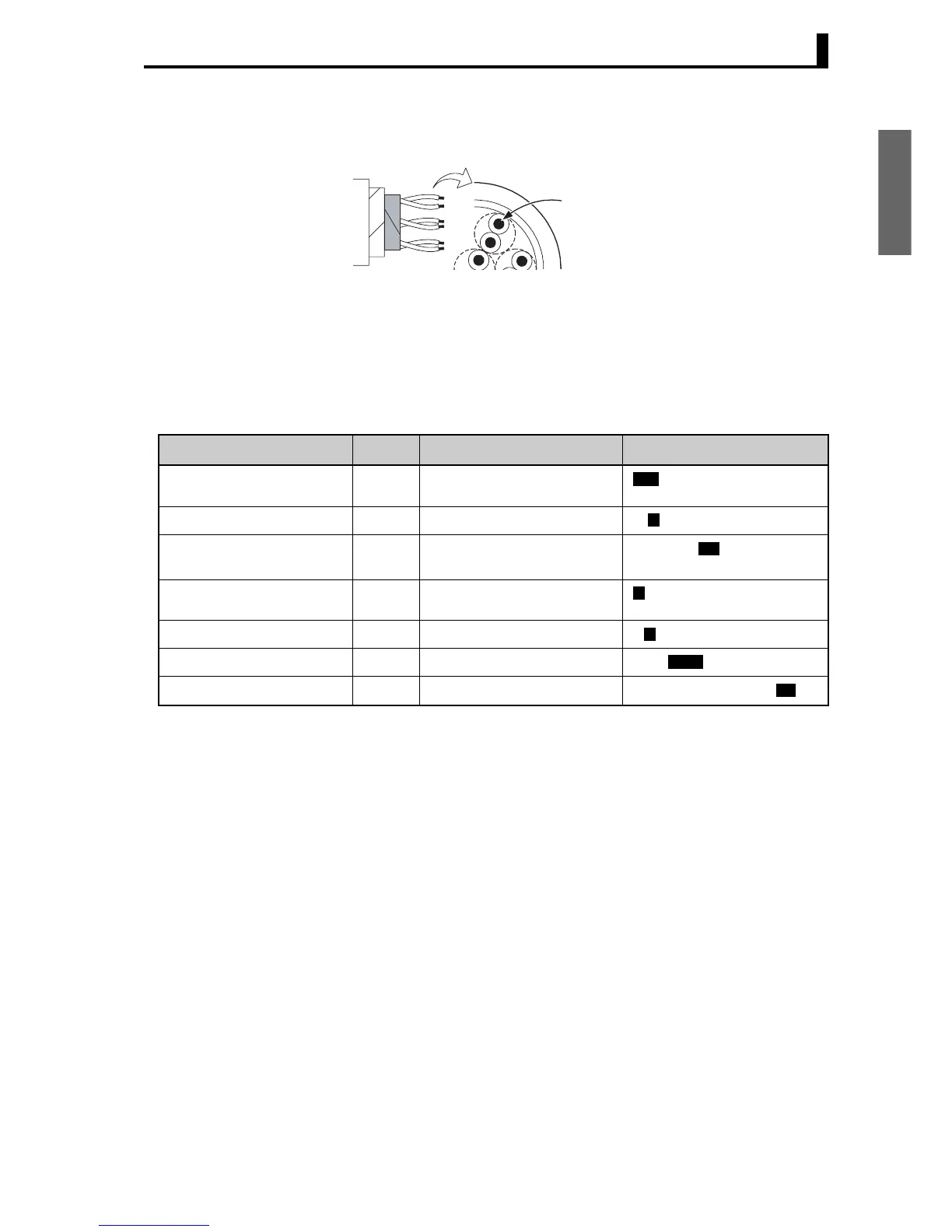

Cable Diagram
Cross-sectional area of
conductor
AWG24: 0.205 mm
2
AWG14: 2.081 mm
2
Item Code Settings Set Values
Communications protocol psel CompoWay/F (SYSWAY)/Mod-
bus
/mod
Communications unit number u-no 0 to 99
0, to 99
Communications baud rate bps 1.2/2.4/4.8/9.6/19.2/38.4/57.6
(kbit/s)
1.2/2.4/4.8/ /19.2/38.4/57.6
(kbit/s)
Communications data length
(See note.)
len 7/8 (bit)
/8 (bit)
Communications stop bits sbit 1/2
1/
Communications parity prty None, Even, Odd
none//odd
Send data wait time sdwt 0 to 99
0 to 99 ms, default time: ms
cwf
1
9.6
7
2
even
20
