Meaning of the PV input correction value ins (INS):
The ins amount is added to the input value from the sensor.
Example) ins = 30.0; When the input value is 100.0ºC, the indicated temperature will be
130.0ºC.
ins = -20.0; When the input value is 100.0ºC, the indicated temperature will be
80.0ºC.
 Checking the PV Input Slope Correction Coefficient
* If the setting value is to be changed for the purpose of checking, OMRON recommends that you make a
note of the setting value before change.

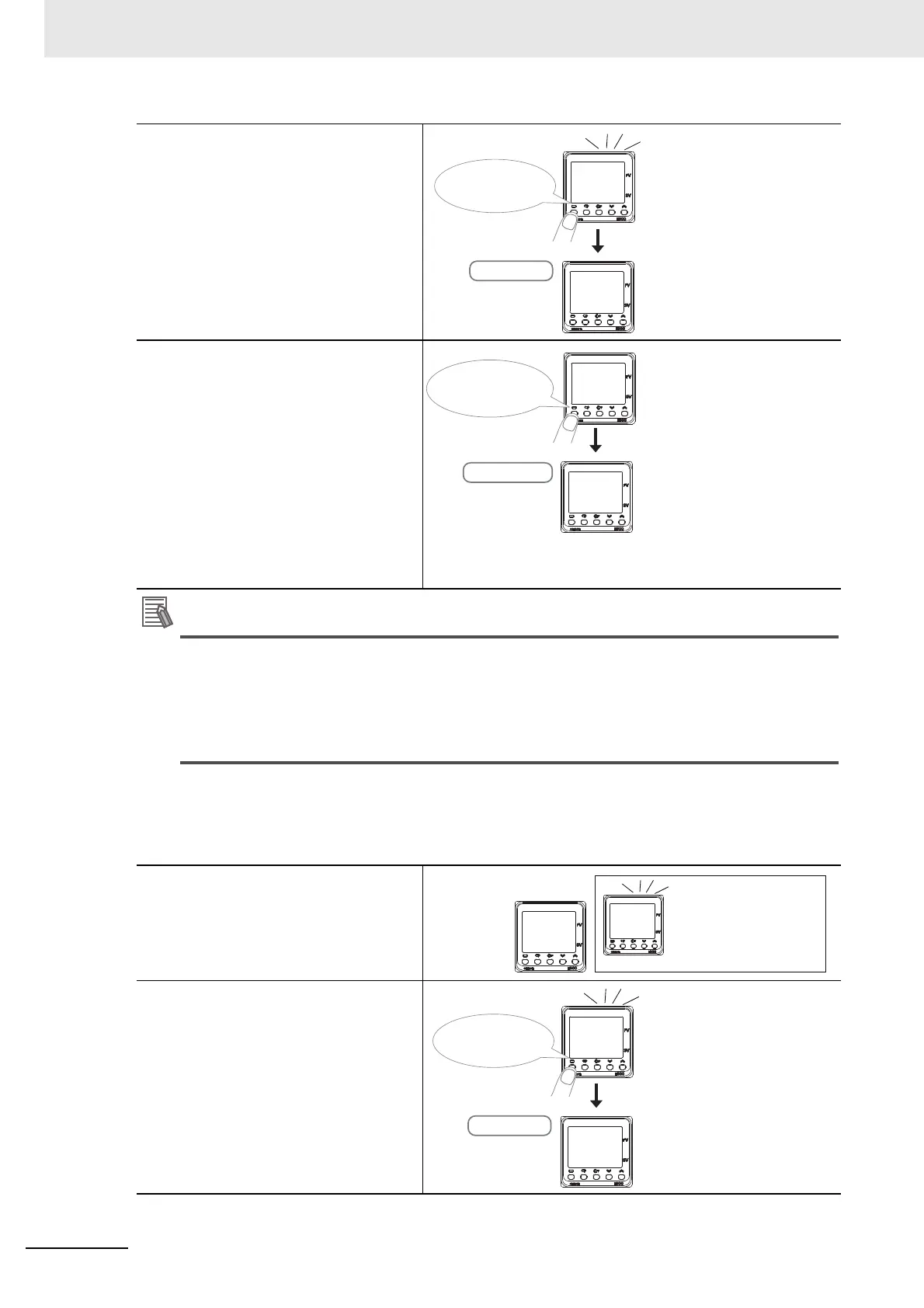

2 Press the O (Level) key for less
than one second.
Move to the adjustment level.
3 Change the parameter that is
displayed with the O (Mode)
Key.
After completion, press the O
(Level) key for less than one
second to return to the
Operation screen.
1 Turn ON the power.
2 Press the O (Level) key for less
than one second.
Move to the Adjustment Level.
25
0
l.adj
0
Adjustment Level
 l.adj (L.AdJ) will be displayed
to indicate that the Adjust-
ment Level has been entered.
Press the O (Level)
key for less than one
second.
l.adj
0
in-t
0.0
Flashes three times
Press the O (Level)
Key for at least 3
seconds.
 Move to the screen on which iNs
(INS) is displayed.
The display in the lower row is the PV
input correction value.
The default value is 0.0 (0 in the case
of analog input).
Make sure an incorrect value is not set.
Refer to page for details.
Initial Setting Level
5-3, 6-27
Operation Display
If an input error occurs,
UGTT flashes on the display.
25
0
s.err
0
25
0
l.adj
0
Adjustment Level
 l.adj (L.AdJ) will be displayed
to indicate that the Adjust-
ment Level has been entered.
Press the O (Level)
key for less than one
second.
