DeviceNet Communications Cables Wiring Section 3-2
Parts, Installa-
tion, and Wiring
3-2 DeviceNet Communications Cables Wiring
The methods used for preparing DeviceNet communications cables to be con-
nected for DeviceNet communications are explained here.
For details on the DeviceNet Network, such as supplying the DeviceNet com-
munications power and grounding the DeviceNet Network, refer to the
DeviceNet Operation Manual (W267).
3-2-1 Preparing DeviceNet Communications Cables
Use the following procedure to prepare and connect the communications
cables to the connectors.
1,2,3... 1. Remove approximately 30 to 80 mm of the cable covering, being careful
not to damage the shield mesh underneath. Do not remove too much cov-
ering or a short circuit may result.
2. Carefully peel back the shield mesh to reveal the signal lines, power lines,
and the shield wire. The shield wire is slightly harder to the touch than the
mesh.
3. Remove the exposed mesh and the aluminum tape from the signal and
power lines. Strip the covering from the signal and power lines to the prop-
er length for the crimp terminals. Twist together the wires of each of the sig-
nal and power lines.
4. Attach crimp terminals to the lines and then cover any exposed areas with
vinyl tape or heat-shrink tubing.
Making sure that the connector hole numbers are correct, insert each of
the signal lines, power supply lines, and the shield wire into the corre-

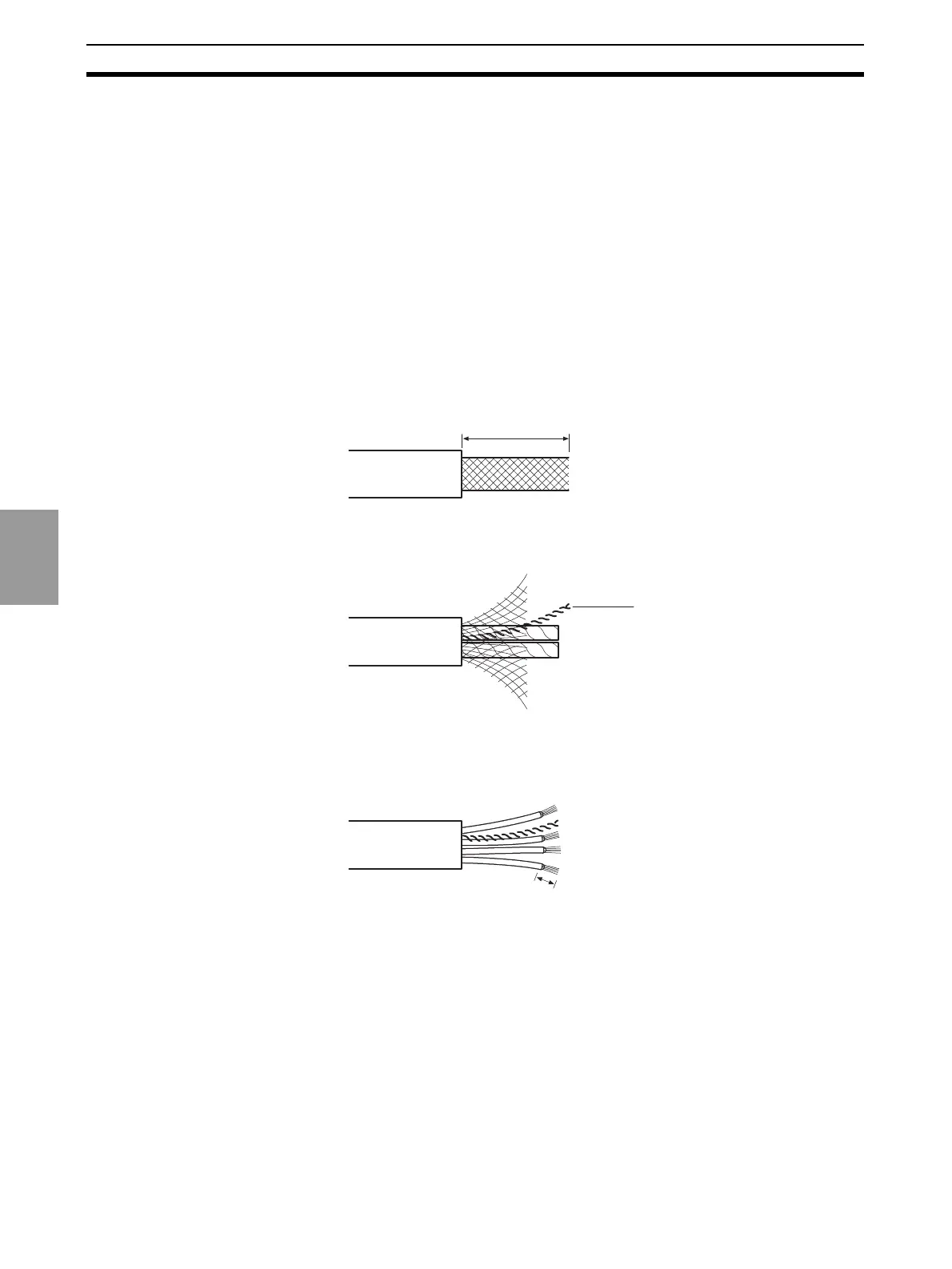

Approx. 30 to 80 mm
(Remove as little as possible.)
Shield wire
Strip to match the
crimp terminals.
