This section describes the models and connecting methods of the Sysmac Studio.
3-7-1
Model Numbers
The model numbers of the Sysmac Studio are given in the following table. The model numbers are
different for the media and licenses.
Product Configuration software Media
Number of
user licens-
es
Model
Sysmac Studio
Standard Edition
Sysmac Studio
The following Support Software is also
included.
Network Configurator
CX-Integrator
CX-Protocol
CX-Designer
DVD --- SYSMAC-SE200D
Licenses 1 SYSMAC-SE201L
3 SYSMAC-SE203L
10 SYSMAC-SE210L

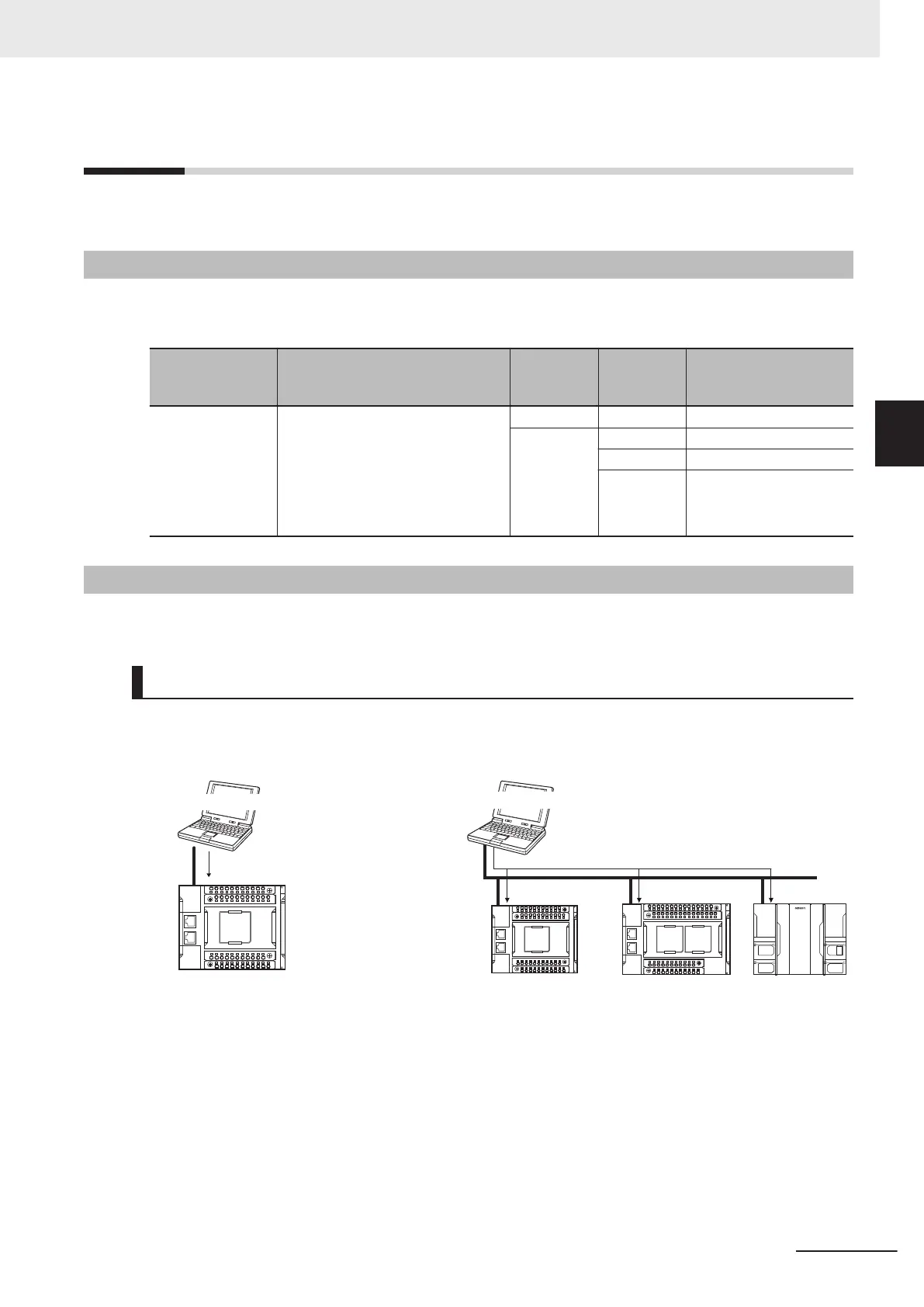

3-7-2
Connection
With an NX1P2 CPU Unit, you can connect the Sysmac Studio online in the following ways.
Configuration
l
Connection with EtherNet/IP
• 1:1 Connection • 1:N Connection
• A direct connection is made from the Sys-
mac Studio. The IP address and connec-
tion device do not need to be specified.
*1
• You can make the connection whether or
not an Ethernet switch is used.
• Support for Auto-MDI enables the use of
cross cables or straight cables if a direct
connection is made.
Directly specify the IP address of the remote device.
