Omron NX1P2 series Hardware User Manual

A-2-2

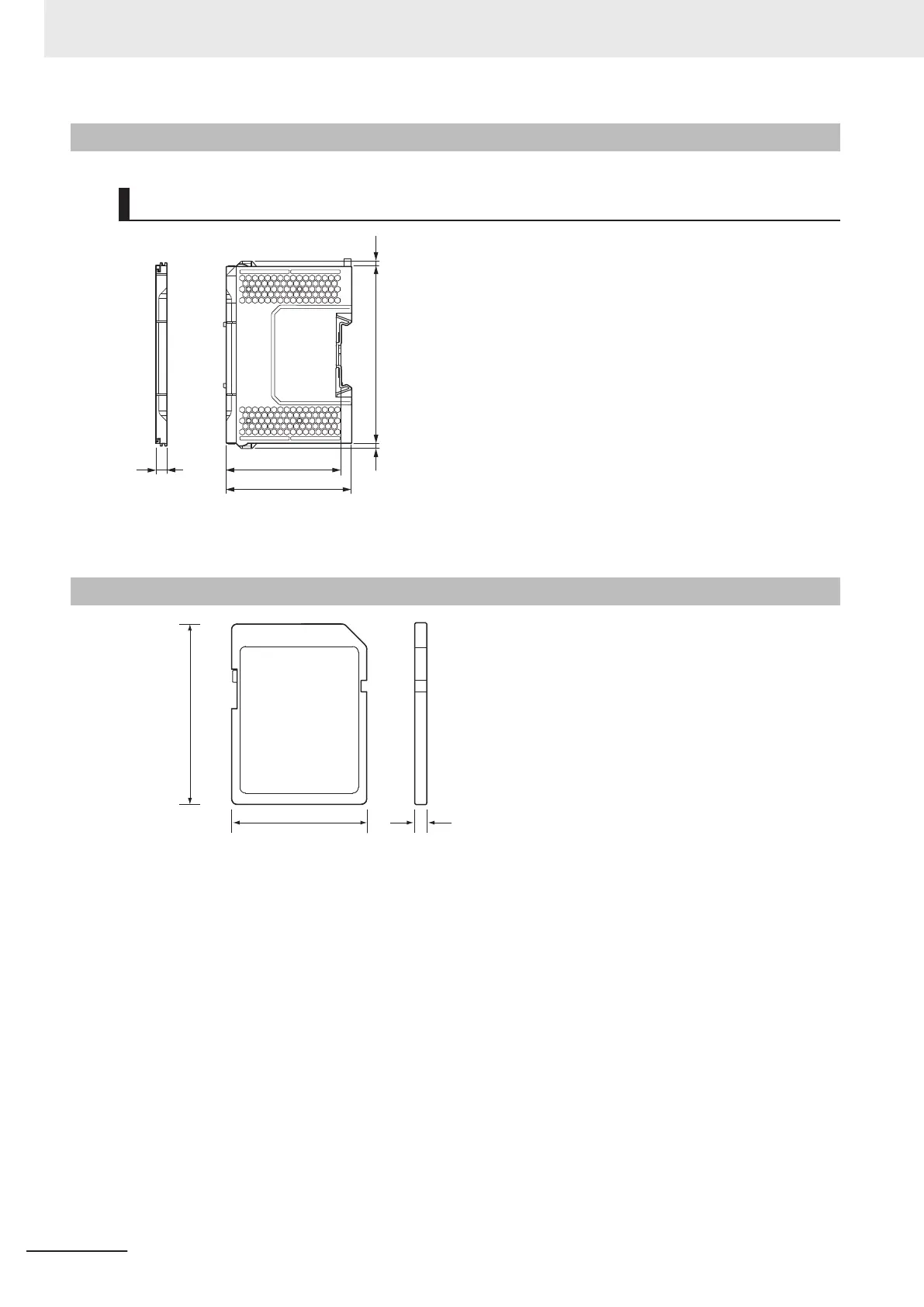

End Cover
NX-END02
Unit: [mm]
65.2
*1
71
6
100
1.5 1.5
*1. The dimension from the attachment surface of the DIN Track to the front surface of the end cover.
A-2-3
SD Memory Card
2.1±0.15
32
±0.1
24±0.1
Unit: [mm]
Appendices
A-4
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)
