Omron NX1P2 series Hardware User Manual

5-3-6

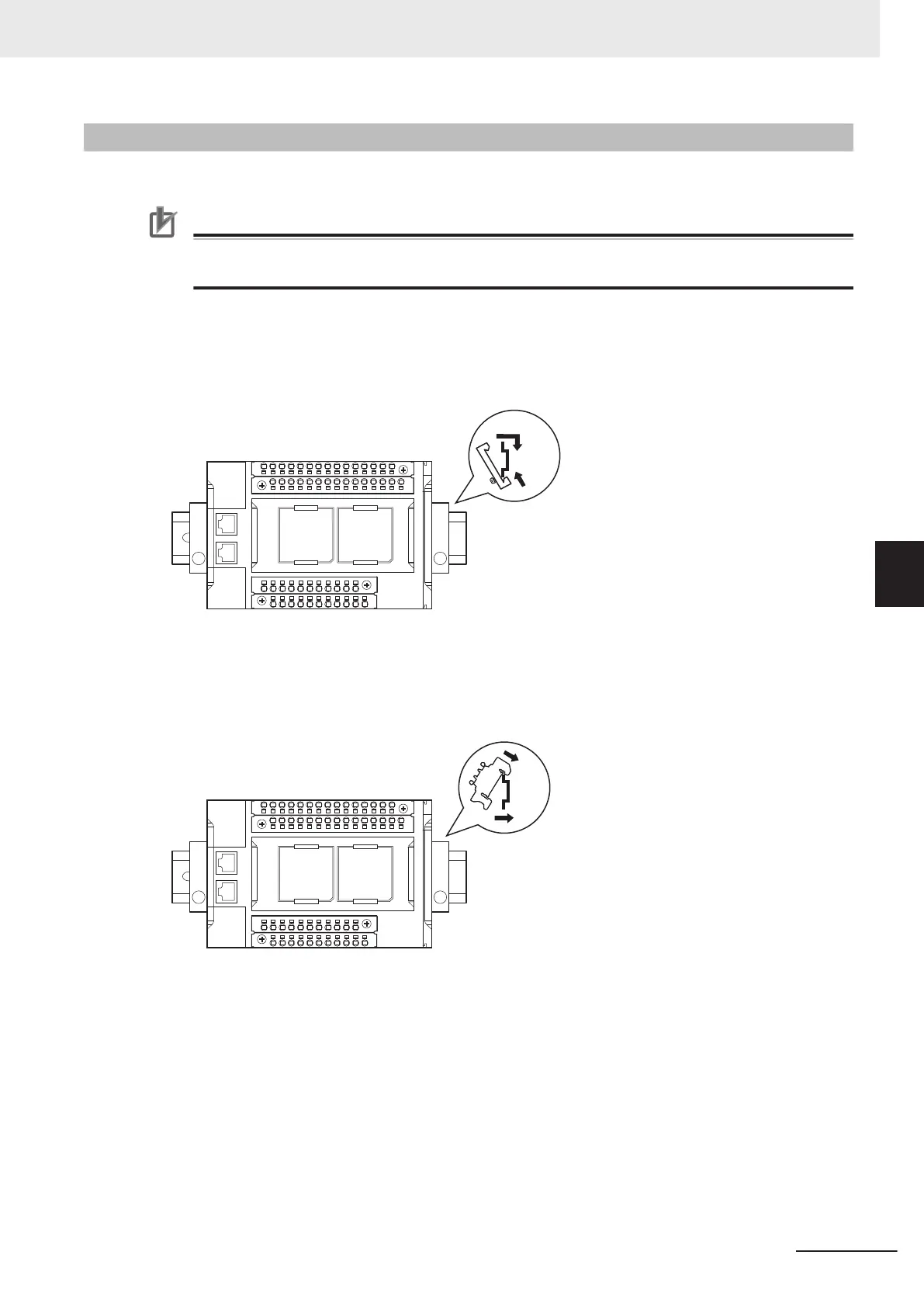

Mounting the End Plates
After you mount the End Cover, always secure the Unit with End Plates at both sides.
Precautions for Correct Use
After you mount the Unit on the DIN Track, always secure it with End Plates at both sides. If you
do not secure it, the Unit may be damaged or malfunction.
l
Using PFP-M (OMRON)
To mount an End Plate, 1) hook the bottom of it on the bottom of the DIN Track and 2) rotate the
End Plate to hook the top of it on the top of the DIN Track.
Then tighten the screw to lock the End Plate in place.
1)
2)
l
Using CLIPFIX 35 (Phoenix Contact)
To mount an End Plate, 1) hook the top of it on the top of the DIN Track and 2) rotate the Plate to
hook the bottom of it on the bottom of the DIN Track. Press in until you hear the End Plate lock into
place.
1)
2)
To remove an End Plate 1) insert the tip of a flat-blade screwdriver into groove “a” and 2) use “b” as
a fulcrum and lift the end of the screwdriver, as shown in the following diagram.
5 Installation and Wiring
5-25
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)
5-3 Mounting and Removing Units
5
5-3-6 Mounting the End Plates
