5-3-7
Attaching Markers
Markers can be attached to NX Units and their terminal blocks to identify them.
The plastic markers made by OMRON are installed for the factory setting. The ID information can be
written on them.
Commercially available markers can also be installed.
Replace the markers made by OMRON if you use commercially available markers now
.
The marker attachment locations on the NX Units depend on the type of external connection termi-
nals. Refer to the user
’
s manual for the NX Units that you will use for the marker attachment locations.
l
Installation Method

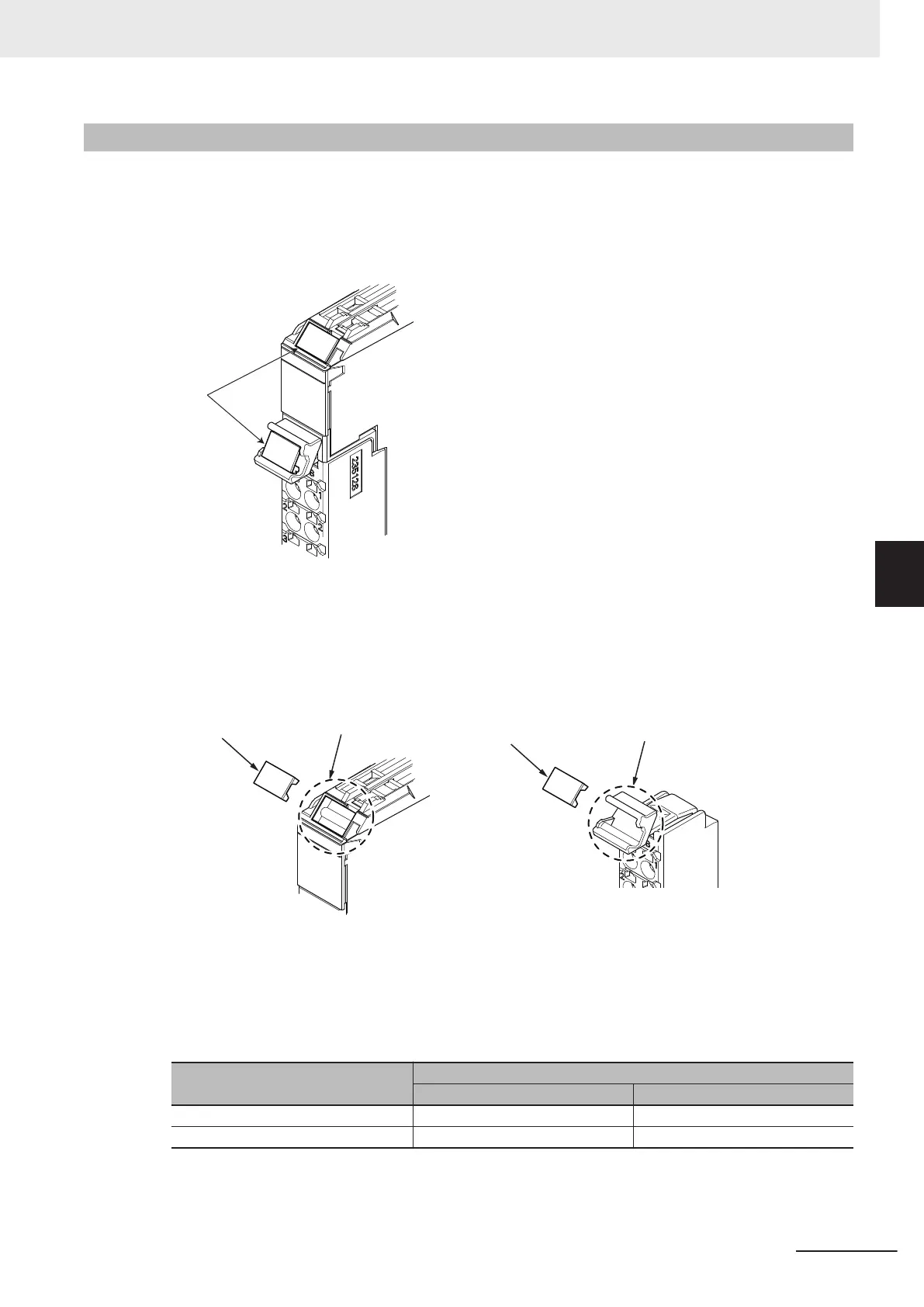

Insert the protrusions on the markers into the marker attachment locations on the NX Units and ter-
minal blocks on NX Units.
Marker
Marker
Marker attachment location
Marker attachment location
<Terminal block><Unit>
l
Commercially Available Markers
Commercially available markers are made of plastic and can be printed on with a special printer.
To use commercially available markers, purchase the following products.
Product name
Model number
Manufactured by Phoenix Contact Manufactured by Weidmuller
Markers UC1-TMF8 DEK 5/8
Special marker printer UM EN BLUEMARK X1 PrintJet PRO
The markers made by OMRON cannot be printed on with commercially available special printers.
5 Installation and Wiring
5-27
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)
5-3 Mounting and Removing Units
5
5-3-7 Attaching Markers
