Omron SMARTSTEP 2 R7D-BP04H User Manual

3-47
3-4 Cable and Connector Specifications
3
Specifications
Control Cable Specifications
 General-purpose Control Cables
A General-purpose Control Cable connects to the Servo Drive's Control I/O Connector
(CN1). Do not wire the pins that have no signals allocated.
Cable Models

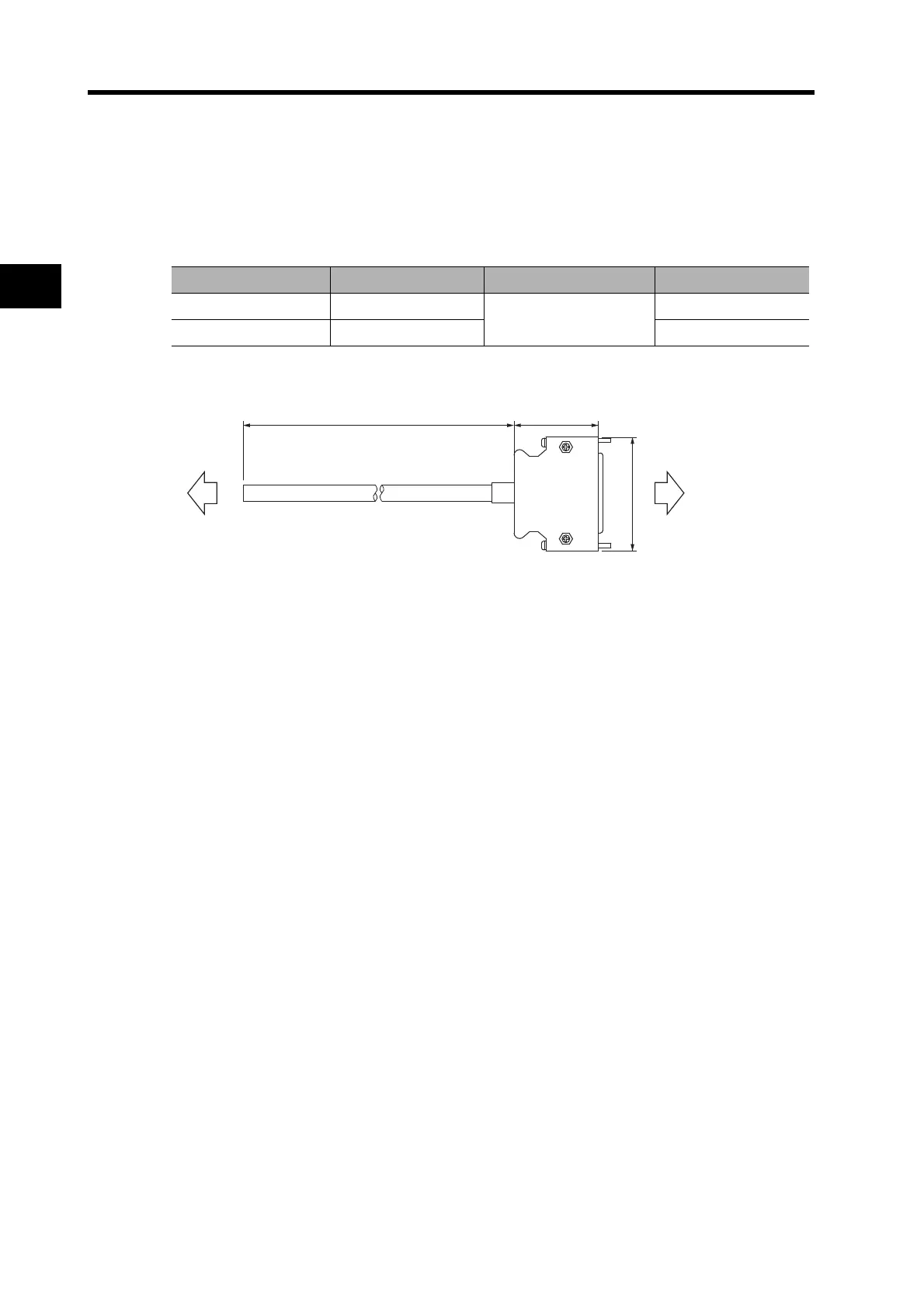

Connection Configuration and External Dimensions
Model Length (L) Outer diameter of sheath Weight
R7A-CPB001S 1 m
9.5
dia.
Approx. 0.2 kg
R7A-CPB002S 2 m Approx. 0.3 kg
Controller end Servo Drive end
R7D-BP@
L
37.2
39
t = 14
