2-2-1 Removing and Mounting the Covers
It
is necessary to remove the front cover
, optional cover
, top protection cov
-
er, and the bottom protection cover from the Inverter to wire the terminal
block.
Follow the instructions below to remove the covers from the Inverter.
To mount the covers, take the opposite steps.

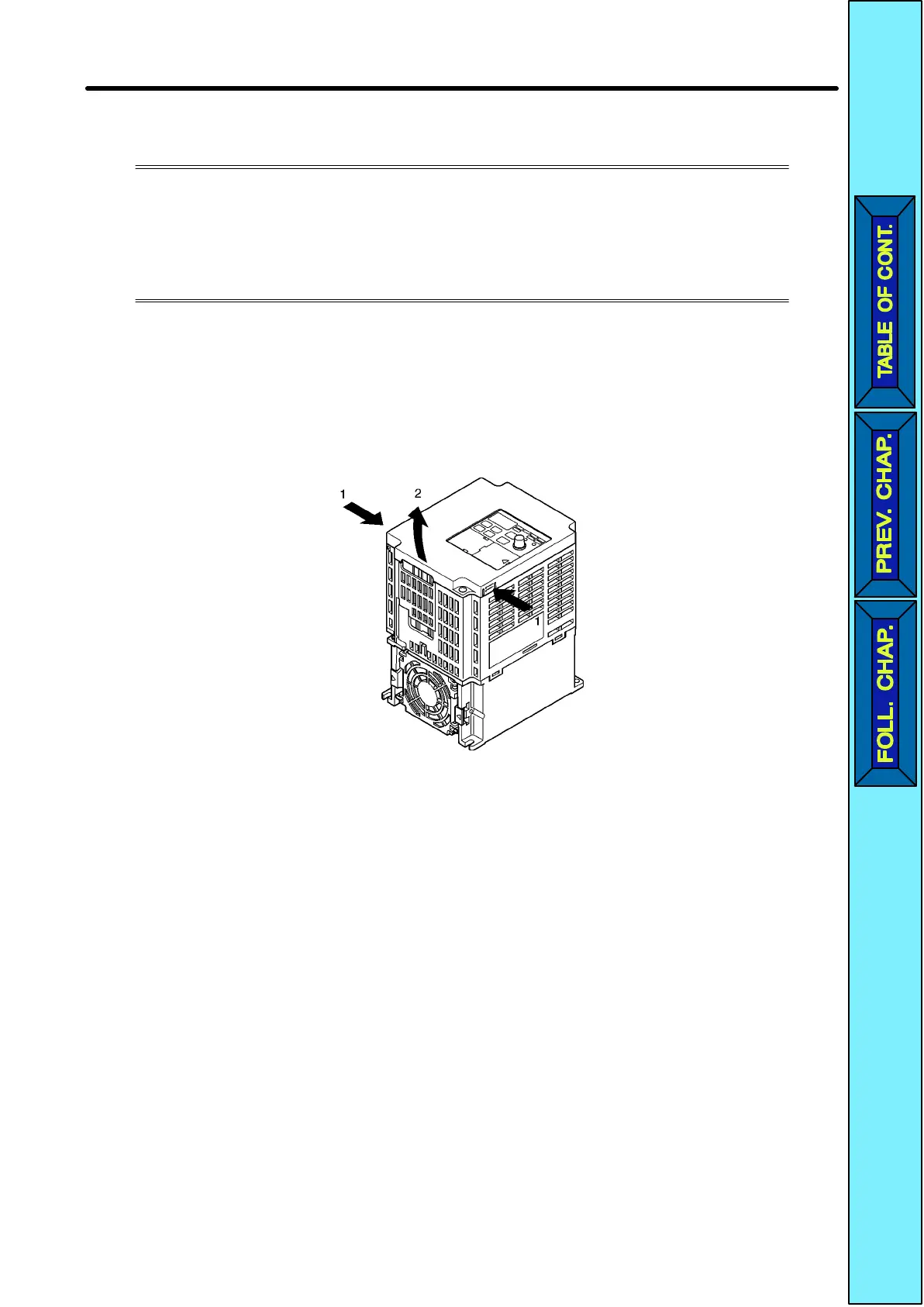

H Removing the Front Cover
•Loosen the front cover mounting screws with a screwdriver.
•Press
the left and right sides of the front cover in the arrow 1 directions and lift the bot
-
tom
of the cover in the arrow 2 direction to
remove the front cover as shown in the fol
-
lowing illustration.
