Useful Functions for Operation
128
Vision System FH/FZ5 Series
User’s Manual (Z340)
Saving Data to an External Device
To Save Logged Image Files to a Computer (FTP)
The FTP is useful when you need to save logged image files to a computer.
For example, if you need to move logged images to a computer before the RAM disk or external memory device
becomes full, you can use the FTP to access the FH Controller through a browser and directly specify the files in
the RAM disk or an external memory device to move.
Operating Procedure
Use the following procedure to access the RAM disk in the FH Controller.
1 Set up the computer and Controller for communications through Ethernet.
2 Start the Explorer on the computer.
3 In the address bar, type the IP address and destination and press the Enter Key.
Example: [ftp://10.5.5.100/RAMDisk/]
4 The contents of the RAM disk is displayed as shown below.
5 Drag files as you would with normal file operations.
Use only single-byte alphanumeric characters for the file names of files to send and receive with the FTP.
• There are no limitations on when you can perform FTP file transfers.
• Processing of FTP file transfers does not affect the transaction time. However, It does affect the load on the network.

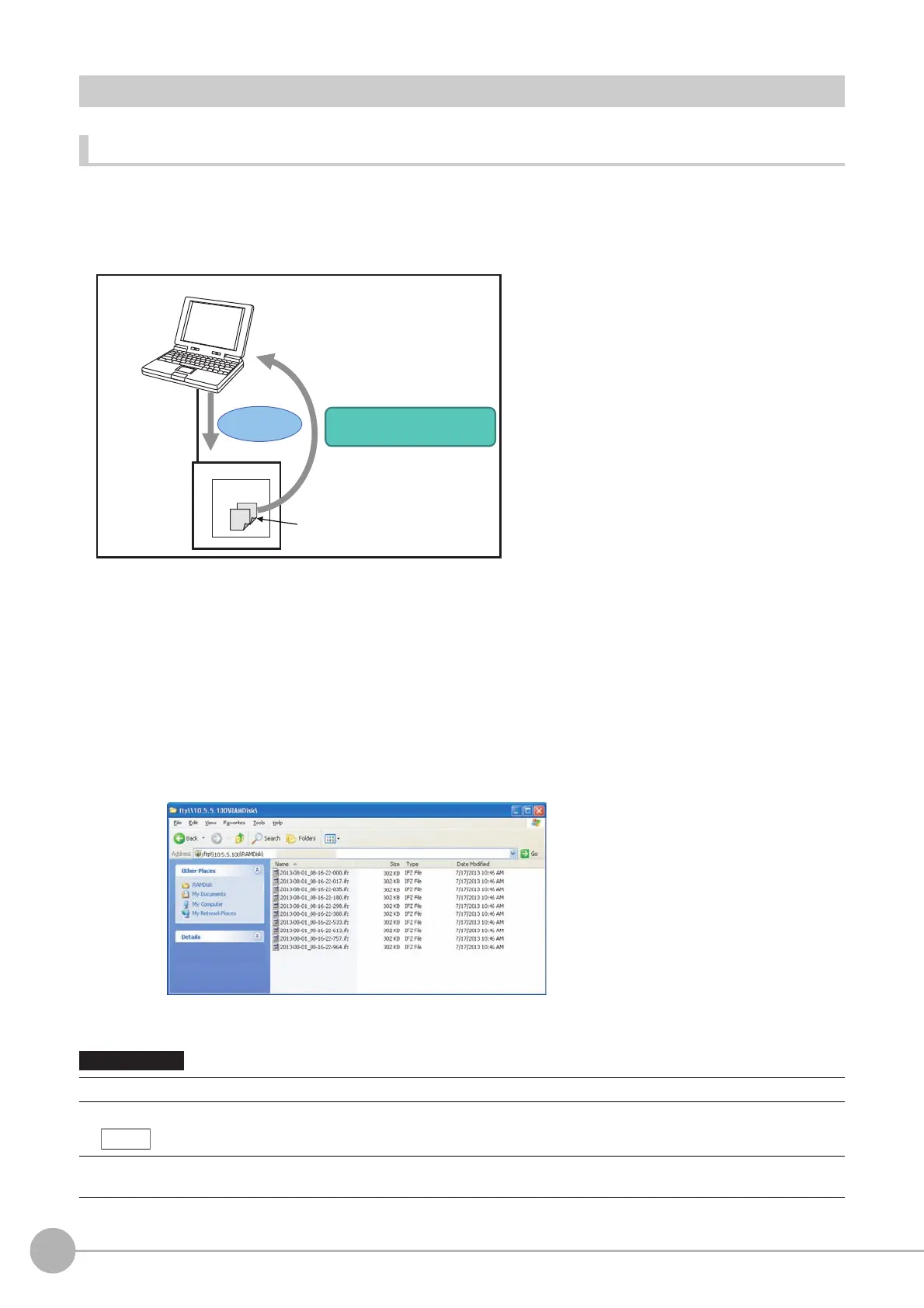

Computer
RAMDisk
Ethernet
Image Files
Access through
FTP
Browser
(FTP client)
FH Controller
(FTP server)
Moving image files to a computer
(and deleted from the RAM disk)
