Saving Settings Data to the Controller RAM Disk
or an External Memory Device
258
Vision System FH/FZ5 Series
User’s Manual (Z340)
Saving Settings Data to the Controller RAM Disk or an External Memory Device
Setting data files are saved to the RAM disk or to an external memory device. The following table lists the data
that can be saved.
1 To save to a USB memory device (or an SD memory card), insert the USB memory device (or
SD memory card) in the Controller.

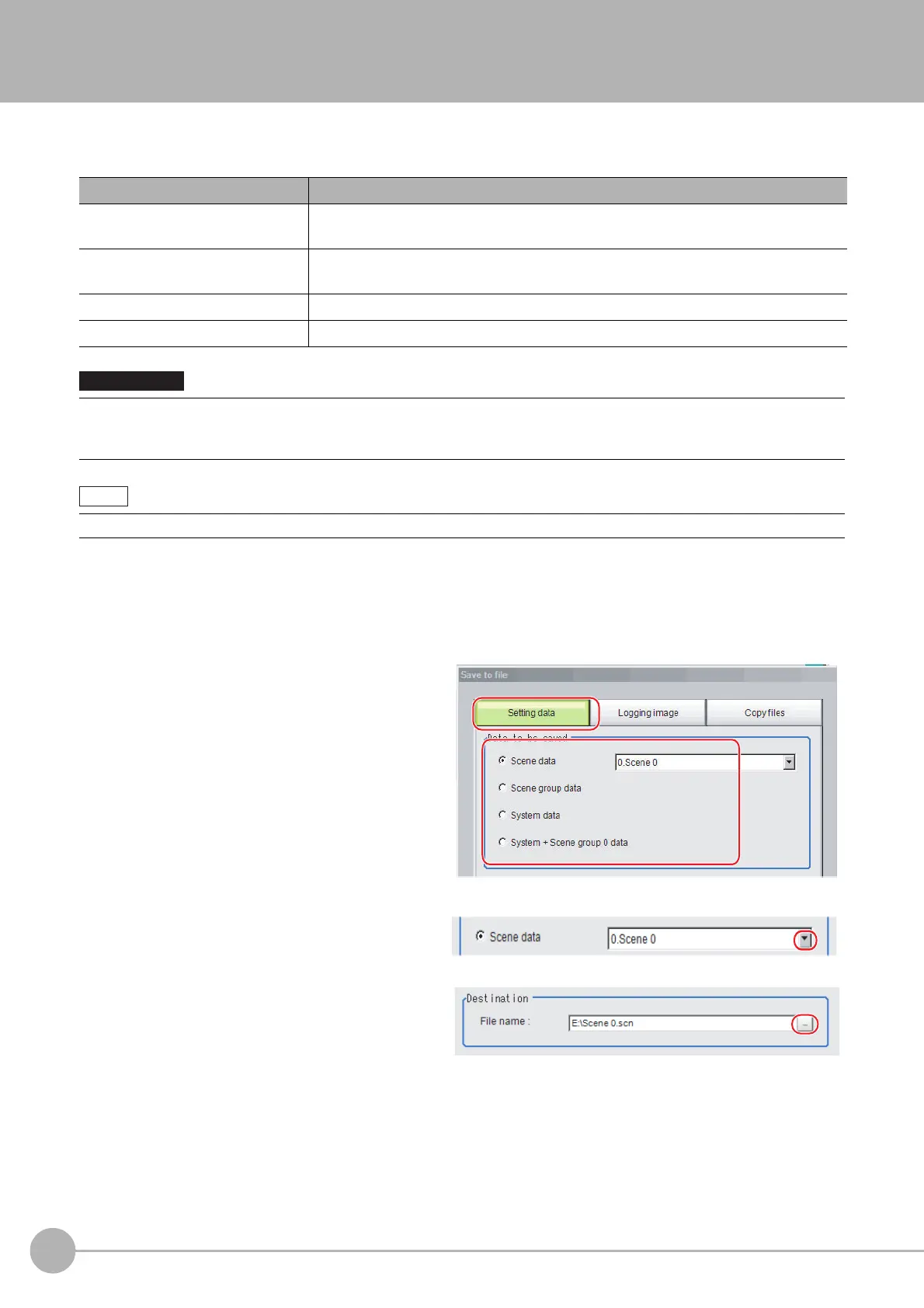

2 In the Main Window, select [Save to file] from the [Function] menu.
The [Save to file] dialog box is displayed.
3 Click the [Setting data] button to select
the data to save.
4 If you selected [Scene data], click the [â–¼]
button to select the number of the scene
to save.
5 Specify the destination folder and file
name.
6 Click [OK].
The dialog box showing transfer status is displayed, and the data is sent to the save destination.
Data Description
System data (*.ini)
This is the setting data, such as the [System] menu setting contents, that is shared
within the Controller.
Scene data (*.scn)
This is the data for one scene. It contains the sequence of units set in each scene and
the set values of units within the scenes.
Scene group data (*.sgp) The data of scene group with 128 scenes.
Scene + Scene group 0 data (*.bkd) This is the system data and the data from scene group 0 combined.
During saving, do not restart, turn OFF the power supply, or remove the external memory device. Data will be corrupted and
the system will not work properly at the next start-up. Be particularly careful if you use [Save to file] for [System + Scene
group 0 data] because the data to be saved will also be saved to the flash memory in the Controller at the same time.
When [Save to file] is executed, the data to save is also saved in the Controller (except scene group data 1 to 31).
