Checking the System Configuration
41
1
Before Operation
Vision System FH/FZ5 Series
User’s Manual (Z340)
FZ5-6/11
* Items indicated with an asterisk are dedicated items, and cannot be substituted.
USB memory
FZ-MEM2G
FZ-MEM8G
Mouse, track ball
(Commercially available USB devices)
*
Camera cable
FZ-VS (2m, 5m,10m, min. bending radius: 69mm)
Bend resistant camera cable
FZ-VSB (2m, 5m, 10m min. bending radius: 69mm)
Right-angle camera cable
FZ-VSL (2m,5m,10m min. bending radius: 69mm)
Long-distance camera cable
FZ-VS2 (15m min. bending radius: 93mm)
Long-distance Right-angle camera cable
FZ-VSL2 (15m min. bending radius: 93mm)
Standalone camera
FZ-SC/FZ-S/
FZ-SC2M/FZ-S2M/
FZ-SFC/FZ-SF/
FZ-SPC/FZ-SP/
FZ-SHC/FZ-SH
FZ-SC5M2/FZ-S5M2
Intelligent compact camera
FZ-SQ010F/FZ-SQ050F/
FZ-SQ100F/FZ-SQ100N
Intelligent camera
FZ-SLC15/FZ-SLC100
Automatic focus camera
FZ-SZC15/FZ-SZC100
*

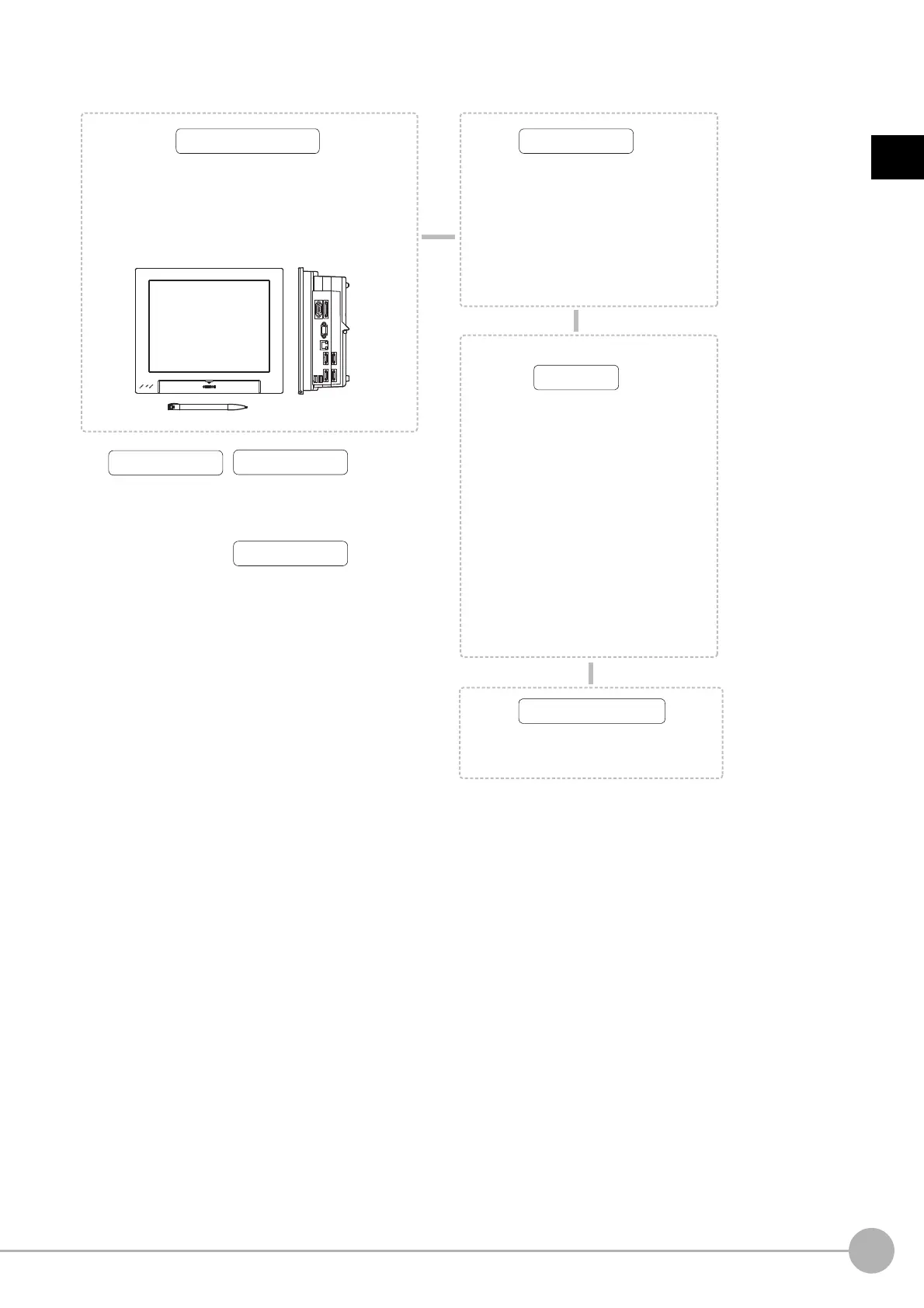

The Controller performs the image processing specified by
the user settings and outputs the measurement results.
Camera 4ch type
FZ5-110□-10
FZ5-60□-10
Sensor controller Camera cable
*
Detects workpieces as images.
Camera
Power Supply
Peripheral Device
Power Supply
*
Camera 2ch type
FZ5-110□
FZ5-60□
Camera 4ch type
Touch pen (standard accessory)
Right-side view
Recommended Model by OMRON:
S8VS-18024
Lighting controller
FLV-TCC1/FLV-TCC4/FL-TCC1
Camera with Lighting
