Omron ZFV Series User Manual

24
Section 2 INSTALLATION & CONNECTION
ZFV
User’s Manual
Section 2
Amplifier Unit

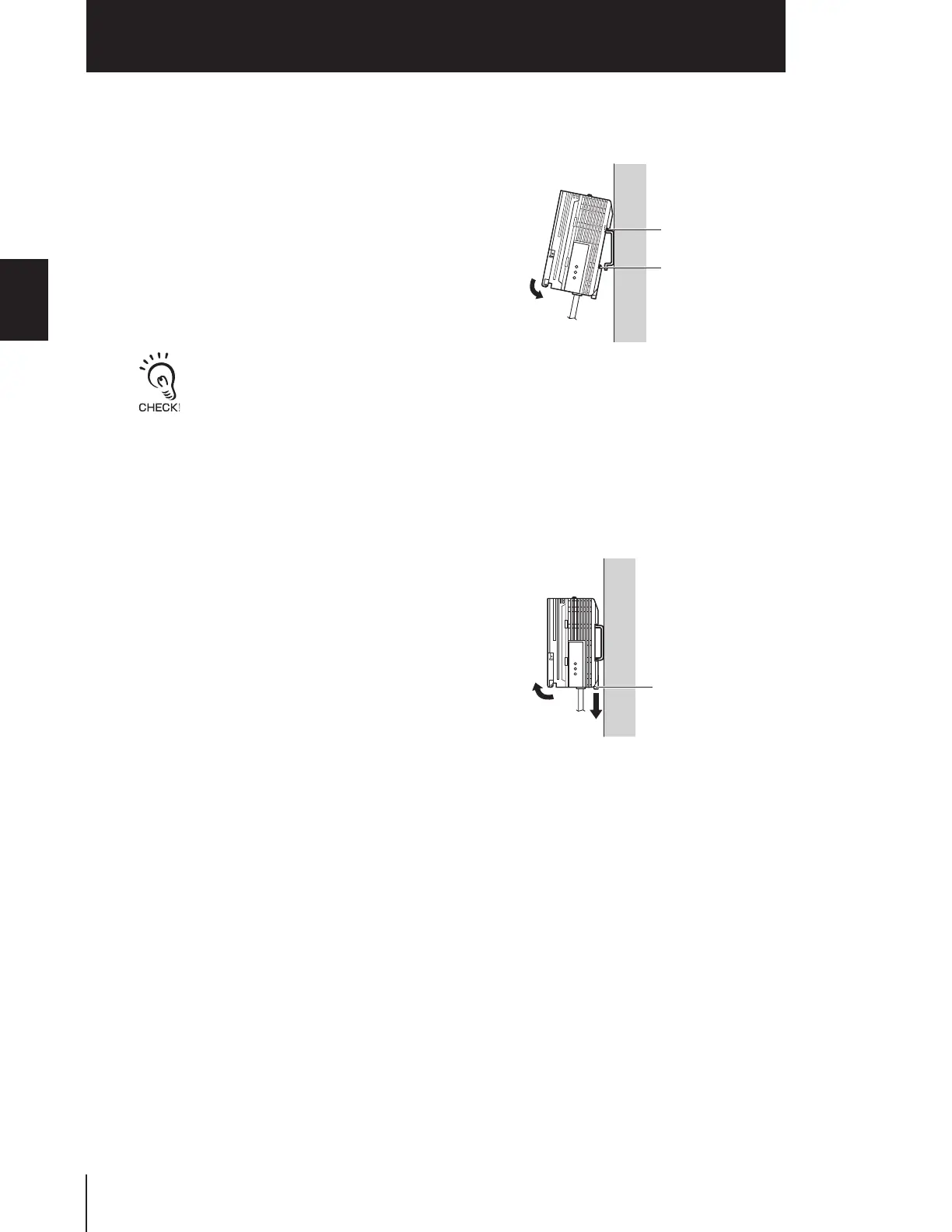

● Installation procedure
1.
Hook the connector end of the Amplifier Unit
onto the DIN track.
2.
Push the Amplifier Unit down onto the DIN
track until the hook on the I/O cable side is
locked.
Push down until you hear it snap into place.
Always hook the connector end of the Amplifier Unit on the DIN track first. Hooking the I/O cable
end on the DIN track first may impair the mounting strength of the DIN track attachment.
●
Removal procedure
The following describes how to remove the Amplifier Unit from the DIN track.
1.
Pull the hook on the I/O cable end of the
Amplifier Unit downwards.
2.
Lift up the Amplifier Unit from the I/O cable
end, and remove it from the DIN track.
Hook on connector
end
Hook on I/O cable
Hook on I/O cable
