Omron ZFV Series User Manual

Section 4 APPENDIX
Section 4
Specifications and External Dimensions
87
ZFV
User’s Manual

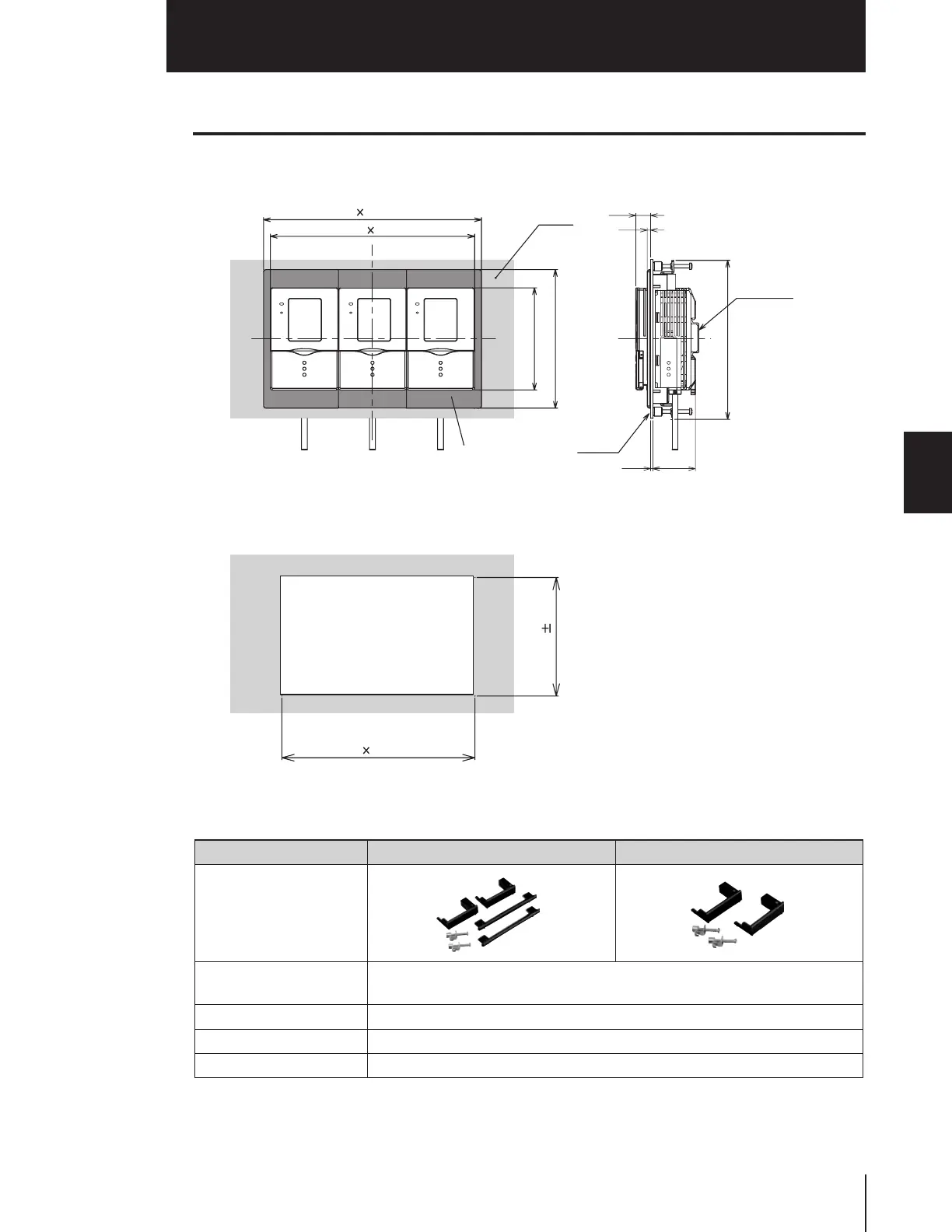

Panel Mount Adapters
ZS-XPM1/XPM2
When mounting on a panel
Item ZS-XPM1 (for 1st unit) ZS-XPM2 (for 2nd unit onwards)
Appearance
Vibration resistance
(destructive)
10 to 150 Hz, 0.7-mm double amplitude, 80 min each in X, Y, and Z directions
Shock resistance (destructive) 300 m/s
2
3 times each in six directions (up/down, left/right, forward/backward)
Materials Polycarbonate (PC), etc.
Weight Approx. 50g
(Note 1)
(60 n)+12
60 n
122
90
(140)
(2)
(37.5)
116 1
(60 n)+8
13
3
Panel
DIN track
Panel
Panel Mount
Adaptor
Note 1 : Dimensions are shown for a panel thickness of 2.0 mm.
Panel cutout dimensions
n : Number of gang-mounted controllers (1 to 10)
(Unit: mm)
