Section 2 INSTALLATION & CONNECTION
Section 2
Amplifier Unit
27
ZFV
User’s Manual

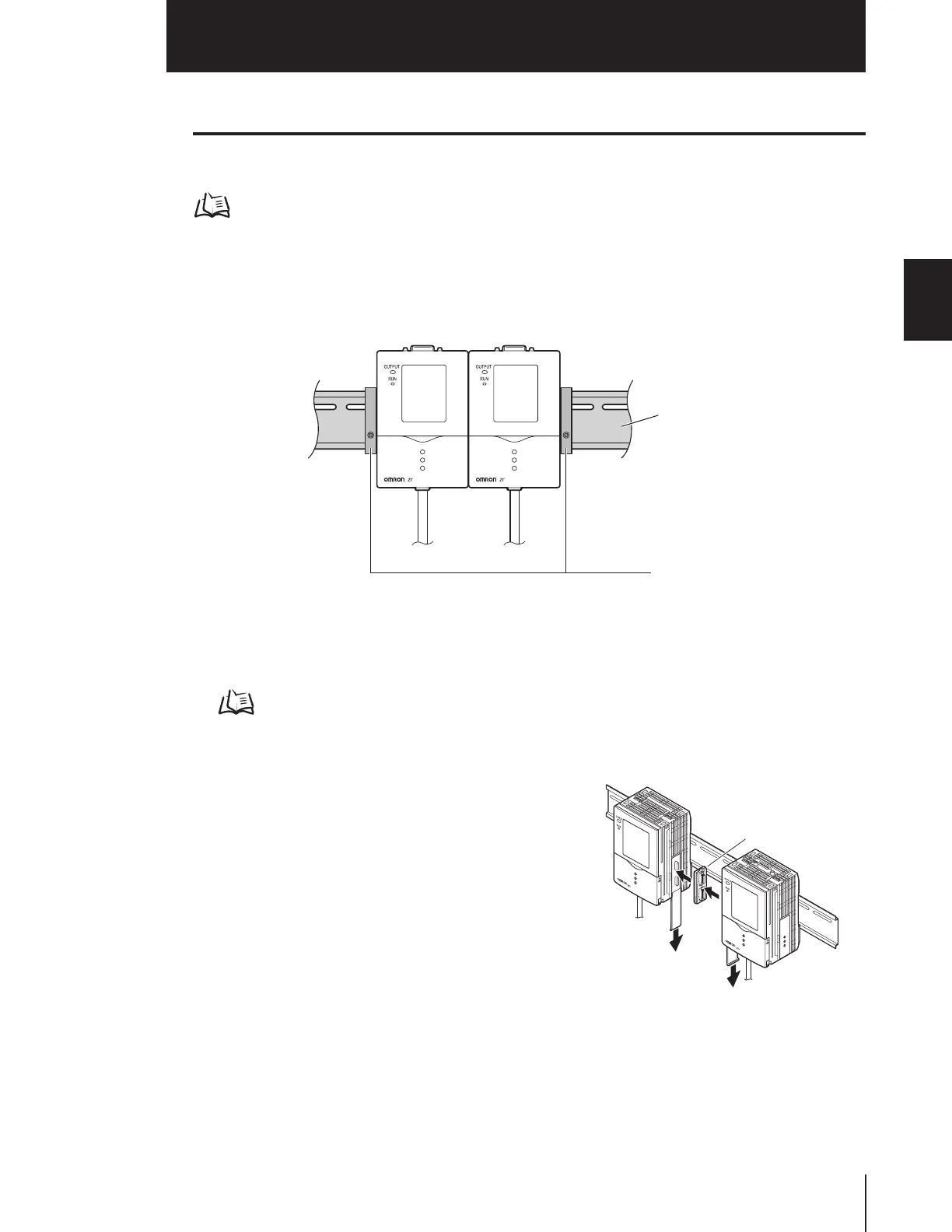

Gang mounting
Up to five Amplifier Units can be gang-mounted.
Application Expanded Configuration p.16
■ Installing on the DIN track
Amplifier Units can be easily mounted on the 35-mm DIN track.
● Installation procedure
1.
Install Amplifier Unit on the DIN track.
p.27
2.
Open the connector cover on the Amplifier
Unit.
Slide the cover to remove.
3.
Insert the Controller Link Unit into the
connector on the Amplifier Unit.
4.
Slide the Amplifier Unit, and insert into the connector on the Controller Link Unit.
DIN track (sold separately)
PFP-100N (1 m)
PFP-50N (0.5 m)
PFP-100N2 (1 m)
End plate (sold separately)
PFP-M
Controller
Link Unit
