Section 3 SETUP
ZFV
User’s Manual
Section 3
Customizing Measurement conditions
PATTERN/SEARCH, MATCH
■

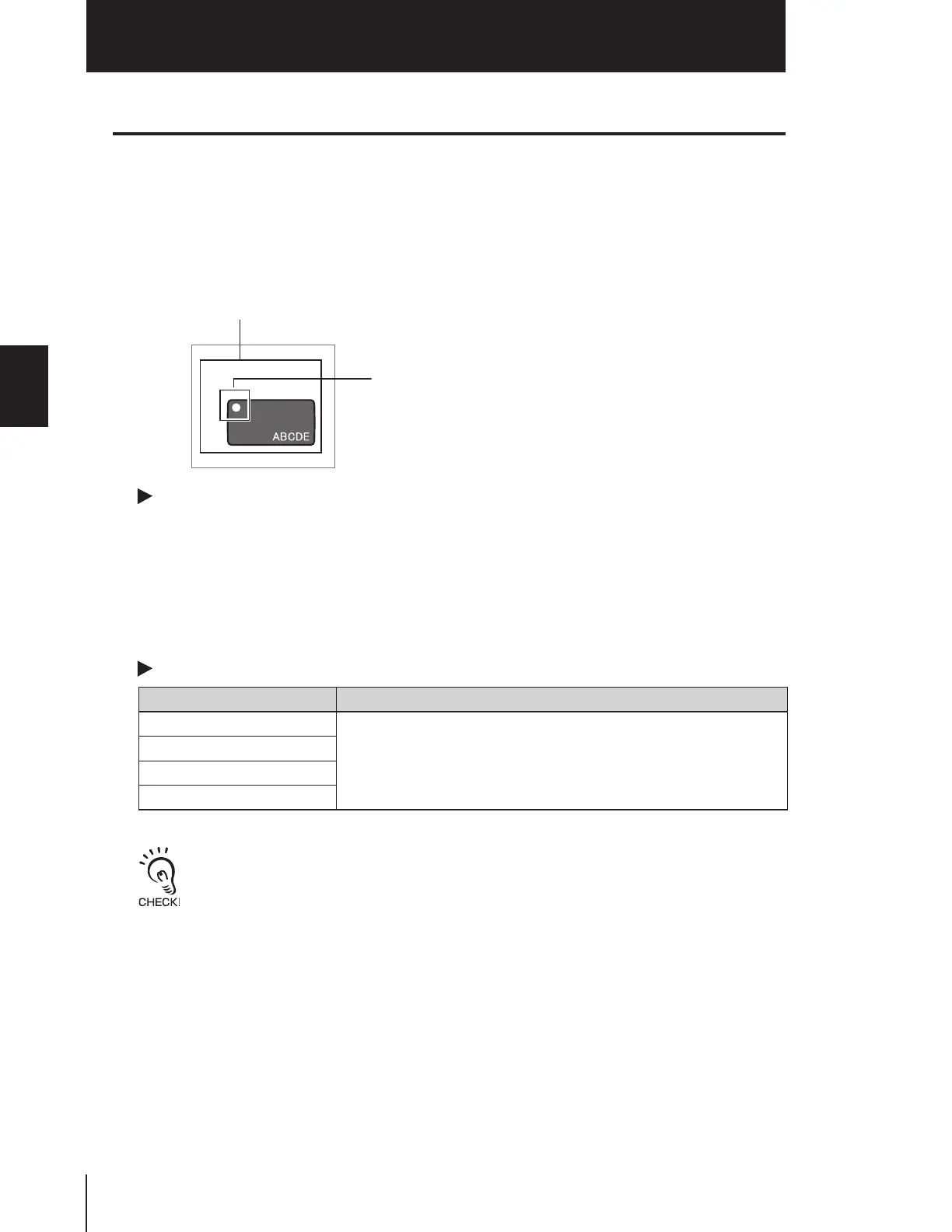

Changing the search area
Change the area to search the model in.
Searches can be performed in the entire detection range. However, restricting the
search area can reduce the processing time and increase detection accuracy.
Specify the top left and bottom right of the search area.
MENU Mode-[CUSTM]-[SEARCH AREA]
■
Setting the rotation range of a workpiece
This item is displayed only when [SEARCH] is set.
Set this item when even a tilted workpiece is to be set as a non-defective item.
MENU Mode-[CUSTM]-[ROTATION]
The larger the range of acceptable tilt, the longer it takes to performe measurement.
Setting Description
±10° (default value) Set the range of acceptable tilt
±20°
±30°
±45°
Search area
Model
