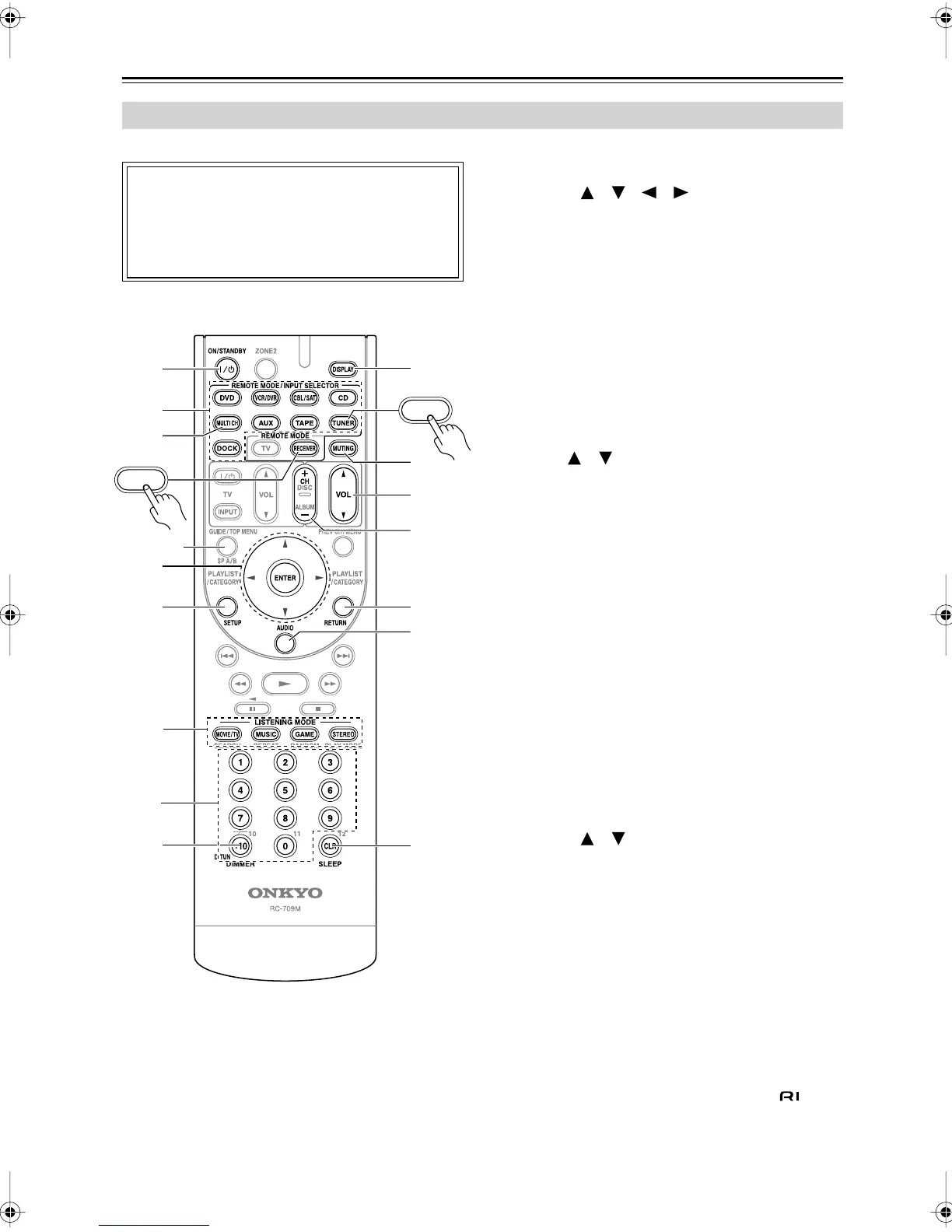

Remote Controller
For detailed information, see the pages in parentheses.
A
ON/STANDBY button (35)
Sets the AV receiver to On or Standby.
B
REMOTE MODE/INPUT SELECTOR buttons
(45, 83–89)
Selects the remote controller modes and the input
sources.
C
MULTI CH button (45)
Selects the multichannel DVD input.
D Arrow [ ]/[ ]/[ ]/[ ] and ENTER buttons
Used to select and adjust settings.
E
SETUP button
Used to change settings.
F
LISTENING MODE buttons (55)
Used to select the listening modes.
G
DIMMER button (46)
Adjusts the display brightness.
H
DISPLAY button (47)
Displays information about the current input source.
I
MUTING button (46)
Mutes or unmutes the AV receiver.
J
VOL [ ]/[ ] button (45)
Adjusts the volume of the AV receiver regardless of
the currently selected remote controller mode.
K
RETURN button
Returns to the previous display when changing set-
tings.
L
AUDIO button (64)
Used to change audio settings.
M
SLEEP button (46)
Used with the Sleep function.
* SP A/B is not used in this AV receiver.
■ Controlling the tuner
To control the AV receiver’s tuner, press the [TUNER]
(or [RECEIVER]) REMOTE MODE button.
You can select AM or FM by pressing the [TUNER] but-
ton repeatedly.
1
Arrow [ ]/[ ] buttons
Used to tune into radio stations.
2
Number buttons (51)
Used to select AM and FM radio stations directly.
3
D.TUN button (51)
Selects the Direct tuning mode.
4
DISPLAY button (51)
Displays information about the band, frequency,
preset number, and so on.
5
CH +/– button (52)
Selects radio presets.
Note:
• An Onkyo cassette recorder connected via can
also be controlled in Receiver mode (see page 88).
Controlling the AV Receiver
To control the AV receiver, press the [RECEIVER]
REMOTE MODE button to select Receiver mode.
You can also use the remote controller to control
your DVD player, CD player, and other components.
See page 81 for more details.
6
7
5
*
A
2
L
M
8
K
J
9
RECEIVER
4
3
TUNER
4
5
1
2
3
