Onkyo TX-SR506 User Manual

47

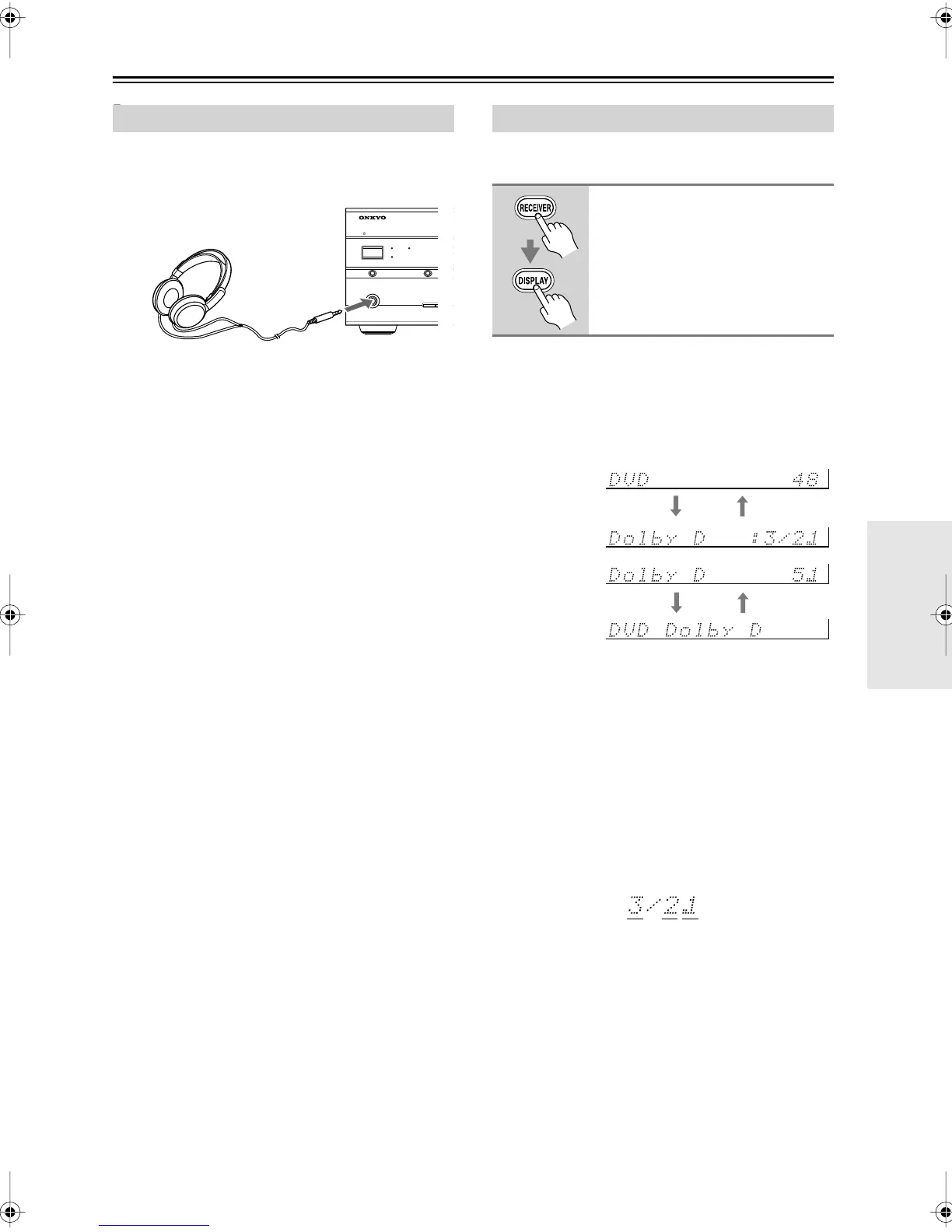

Common Functions —Continued
7
For private listening, you can connect a pair of stereo
headphones (1/4-inch phone plug) to the AV receiver’s
PHONES jack.
Notes:
•Always turn down the volume before connecting your
headphones.
• While the headphones plug is inserted in the PHONES
jack, the speakers are turned off. (The Powered Zone 2
speakers are not turned off.)
• When you connect a pair of headphones, the listening
mode is set to Stereo, unless it was already set to Pure
Audio, Mono, Stereo, or Direct, in which case it stays
the same.
• When the multichannel DVD input is selected, only
the front left and front right channels can be heard in
the headphones.
You can display various information about the current
input source as follows.
Note:
• This procedure can also be performed on the AV
receiver by using its [DISPLAY] button.
The following information can typically be displayed:
*1 When AM or FM radio is used, the band, preset num-
ber, and frequency are displayed.
*2 If the input signal is analog, or AM or FM radio is
selected, no format information is displayed. If the
input signal is PCM, the sampling frequency is dis-
played. If the input signal is digital but not PCM, the
signal format is displayed. Information is displayed
for about 3 seconds, then the previous display reap-
pears.
Interpreting Surround Channel Information
(TX-SR506)
A: The number of front channels (front left, front right,
and center).
B: The number of surround channels (surround left and
surround right). If there’s surround back channel
information, this number will be 3.
C: LFE channel for subwoofer (1 means yes).
Using Headphones
STANDBY/ON
STANDBY
PURE AUDIO
ZONE 2
ZONE 2 OFF
PHONES
MULTI CHPURE AUDIO
Displaying Source Information
Press the [RECEIVER] REMOTE
MODE button, and then press the
[DISPLAY] button repeatedly to
cycle through the available infor-
mation.
Input source &
volume*
1
Signal format*
2
or sampling
frequency
Input source &
listening mode
On the TX-SR506:
On the TX-SR576:
ABC
TX-SR506En.book Page 47 Friday, February 29, 2008 5:31 PM

Onkyo TX-SR506 Specifications

General

Frequency range	50 - 100000 Hz
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Radio Data System (RDS)	Yes
Connectivity technology	Wired
Product color	White
Dimensions (WxDxH)	435 x 379.2 x 149.6 mm
Power consumption (typical)	480 W

Weight and Dimensions

Weight	10600 g
