Onkyo TX-SR506 User Manual

30
Connecting Your Components —Continued

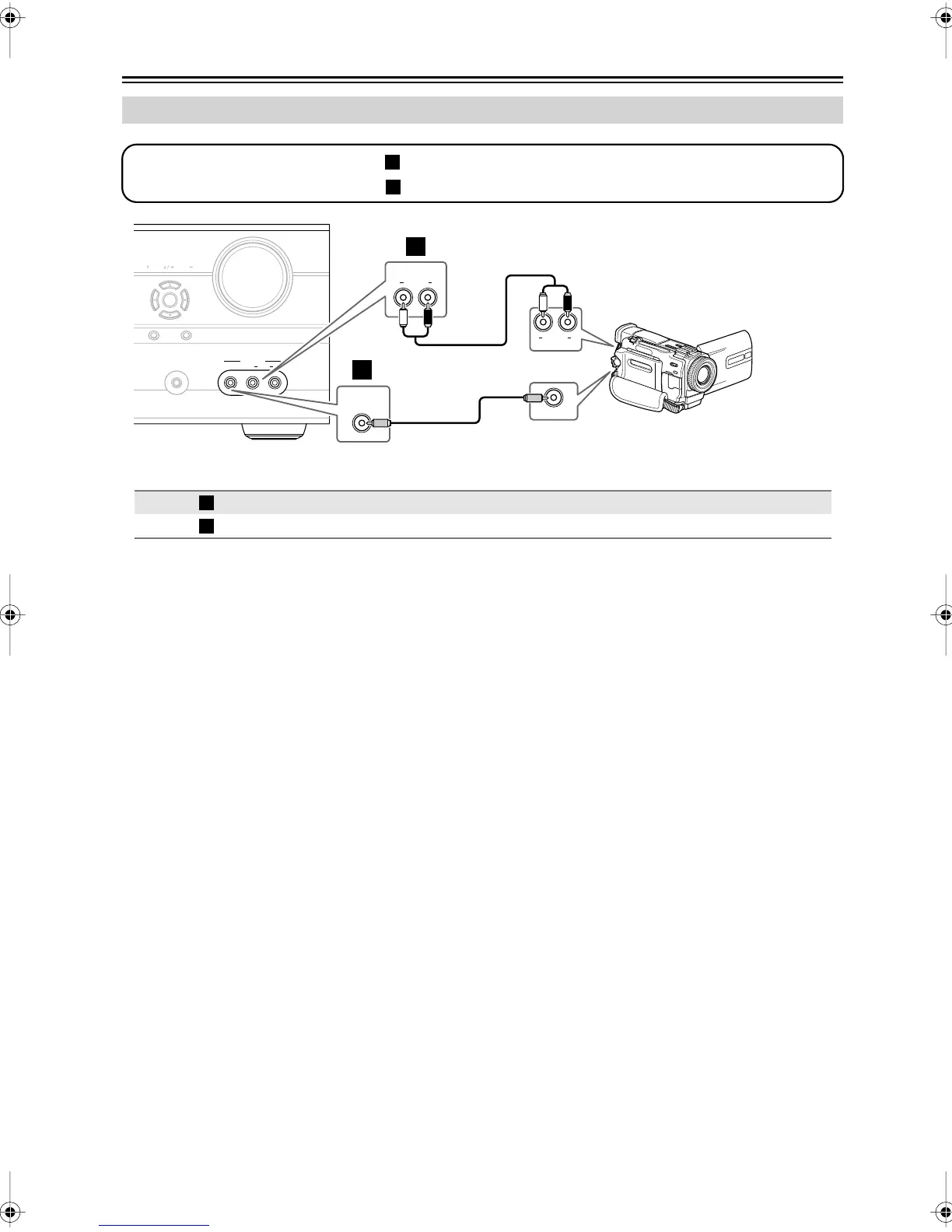

Connecting a Camcorder, Game Console, or Other Device
Connection AV receiver Signal flow Camcorder or console
AUX INPUT VIDEO
⇐
Composite video output
AUX INPUT L-AUDIO-R
⇐
Analog audio L/R output
SETUP
SETUP MIC
VIDEO
L AUDIO R
AUX INPUT
ENTER
RETURN
TUNING PRESET
MASTER VOLUME
VIDEO OUT
AUDIO
AUX INPUT
LR
AUDIO
OUT
LR
AUX INPUT
VIDEO
a
A
Step 1: Make the video connection .
Step 2: Make the audio connection .
A
a
Camcorder, game console, etc.
A
a
TX-SR506En.book Page 30 Friday, February 29, 2008 5:31 PM

Onkyo TX-SR506 Specifications

General

Frequency range	50 - 100000 Hz
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Radio Data System (RDS)	Yes
Connectivity technology	Wired
Product color	White
Dimensions (WxDxH)	435 x 379.2 x 149.6 mm
Power consumption (typical)	480 W

Weight and Dimensions

Weight	10600 g
