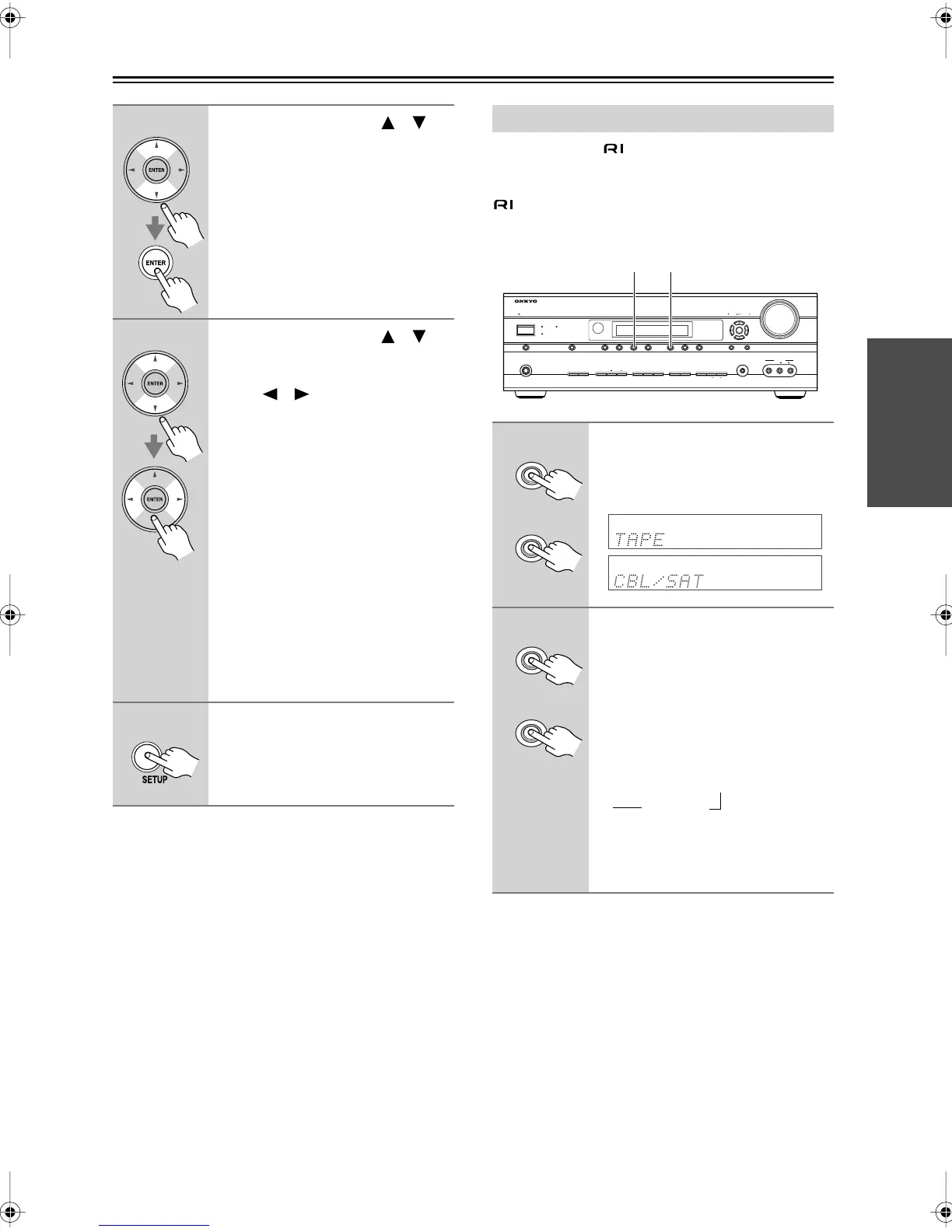

First Time Setup —Continued
Notes:
• When an HDMI IN is assigned to an input selector in
“HDMI Input Setup” on page 39, this input assign-
ment is automatically set to the same HDMI IN. And
in addition to the usual inputs (e.g., COAX1, COAX2,
etc.), you can also select HDMI inputs.
• This procedure can also be performed on the AV
receiver by using its [SETUP], [ENTER], and arrow
buttons.
If you connect an -capable Onkyo MiniDisc
recorder, CD recorder, or RI Dock to the TAPE IN/OUT
jacks, or connect an RI Dock to the CBL/SAT jacks, for
to work properly, you must change this setting.
This setting can only be changed on the AV receiver.
Note:
• DOCK can be selected for the TAPE input selector or
CBL/SAT input selector, but not both at the same time.
3
Use the Up and Down [ ]/[ ]
buttons to select “1-3.Digital,”
and then press [ENTER].
4
Use the Up and Down [ ]/[ ]
buttons to select an input selec-
tor, and then use the Left and
Right [ ]/[ ] buttons to select:
COAX1 : Select if the component is
connected to DIGITAL IN
COAXIAL 1.
COAX2 : Select if the component is
connected to DIGITAL IN
COAXIAL 2.
OPT1 : Select if the component is
connected to DIGITAL IN
OPTICAL 1.
OPT2 : Select if the component is
connected to DIGITAL IN
OPTICAL 2.
- - - - -: Select if the component is
connected to an analog
input.
5
Press the [SETUP] button.
Setup closes.
Changing the Input Display
1
Press the [TAPE] or [CBL/SAT]
input selector button so that
“TAPE” or “CBL/SAT” appears on
the display.
2
Press and hold down the [TAPE]
or [CBL/SAT] input selector but-
ton (about 3 seconds) to change
the setting.
Repeat this step to select MD, CDR, or
DOCK.
For the TAPE input selector, the setting
changes in this order:
For the CBL/SAT input selector, the
setting changes in this order:
CBL/SAT
↔
DOCK
STANDBY/ON
STANDBY
PURE AUDIO
ZONE 2
MOVIE/TV MUSIC GAME
TONE
DISPLAY
DIGITAL INPUT
RT/PTY/TP MEMORY
CLEAR
TUNING MODE
ZONE 2 OFF
PHONES
MULTI CHPURE AUDIO
DVD VCR /DVR CBL/SAT AUX
TAPE TUNER CD
SETUP MIC
VIDEO
L AUDIO R
AUX INPUT
ENTER
SETUP RETURN
TUNING PRESET
MASTER VOLUME
1, 2 1, 2
TAPE
CBL/SAT
or
TAPE
CBL/SAT
or
TAPE → MD → CDR
DOCK
→
→
TX-SR506En.book Page 43 Friday, February 29, 2008 5:31 PM

Onkyo TX-SR506 Specifications

General

Frequency range	50 - 100000 Hz
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Radio Data System (RDS)	Yes
Connectivity technology	Wired
Product color	White
Dimensions (WxDxH)	435 x 379.2 x 149.6 mm
Power consumption (typical)	480 W

Weight and Dimensions

Weight	10600 g
