Controlling Other Components —Continued
By pressing the [TV] REMOTE MODE button that’s
been programmed with the remote control code for your
TV (TV/DVD combination or TV/VCR combination),
you can control your TV with the following buttons.
For details on entering a remote control code for a differ-
ent component, see page 81.
TX-SR576 only: The [TV] REMOTE MODE button is
preprogrammed with the remote control code for con-
trolling a TV that supports the RIHD*. The TV must be
able to receive remote control commands via RIHD and
be connected to the AV receiver via HDMI. If controlling
your TV via RIHD doesn’t work very well, program
your TV’s remote control code into the [TV] REMOTE
MODE button and use the TV remote mode to control
your TV.
A
ON/STANDBY, TV [ ] buttons
Set the TV to On or Standby.
B TV VOL [ ]/[ ] button
Adjust the TV’s volume.
C
TV [INPUT] button
Selects the TV’s external inputs.
D
GUIDE button
Displays the program guide.
E
Arrow [ ]/[ ]/[ ]/[ ] and ENTER buttons
Used to navigate menus and select items.
F
SETUP button
Displays a menu.
G
Playback buttons
From left to right: Previous, Rewind, Pause, Play,
Stop, Fast Forward, and Next.
These buttons works for combination devices.
H
REPEAT button
Selects B (green).
I
SEARCH button
Selects A (red).
J
Number buttons
Enter numbers. 0 button enters 11 on some compo-
nents. +10 button works as “-.--” button or +10.
K DISPLAY button
Displays information.
L
MUTING button
Mutes the TV.
M
CH +/– button
Select channels on the TV.
N
PREV CH button
Selects the previous or last channel.
O
RETURN button
Exits the TV’s setup menu.
P
AUDIO button
Selects foreign language soundtracks and audio for-
mats (e.g., Dolby Digital or DTS).
Q
RANDOM button
Selects C (blue).
R
PLAY MODE button
Selects D (yellow).
S
CLR button
Cancels functions and clears entered numbers, or
enters 12.
* The RIHD supported by the AV receiver is the CEC
system control function of the HDMI standard.

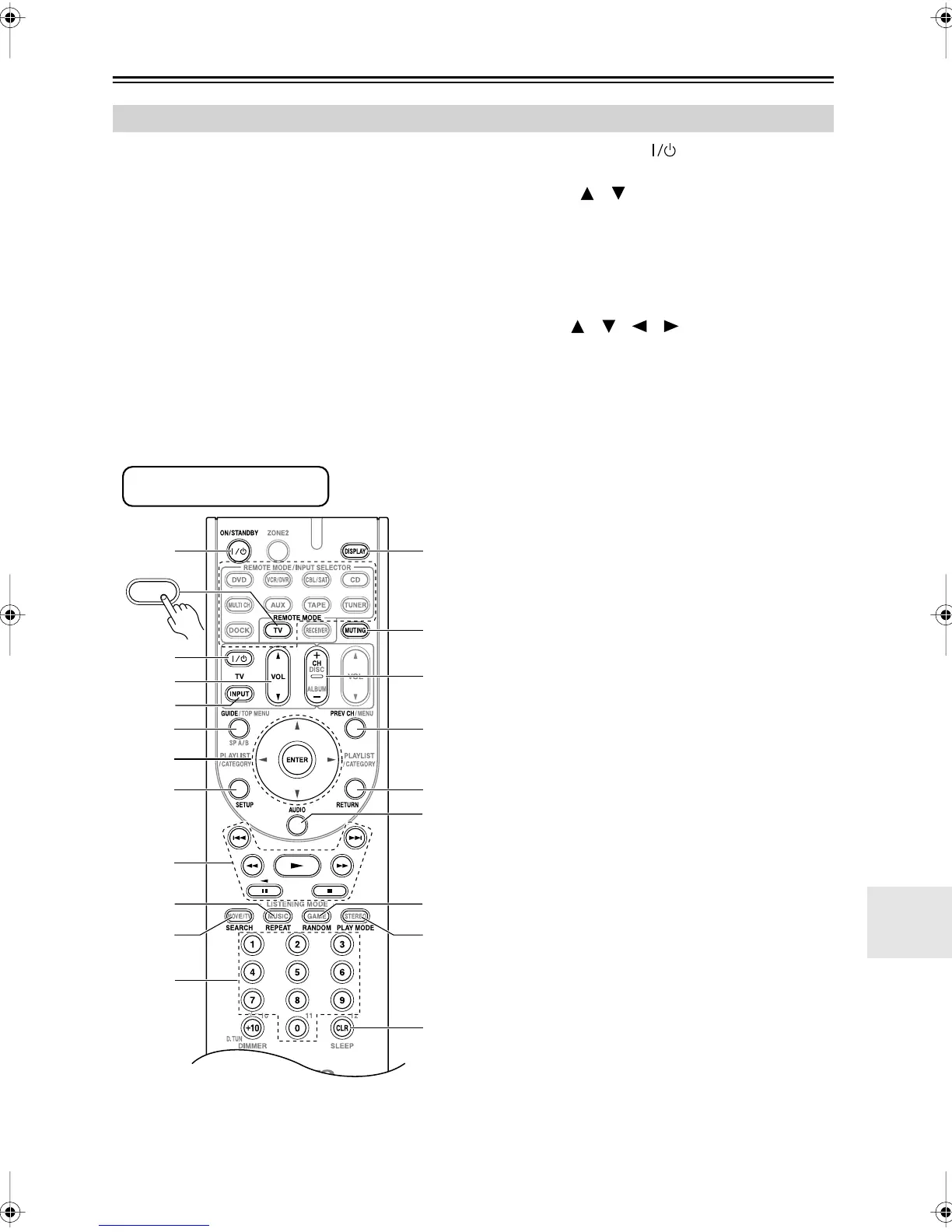

Controlling a TV
J
D
E
F
G
A
A
B
C
P
S
K
L
M
O
N
TV
R
Q
I
H
Press [TV] REMOTE MODE
button first
* With some components, certain buttons may not
work as expected, and some may not work at all.
TX-SR506En.book Page 89 Friday, February 29, 2008 5:31 PM
