Oriental motor BMU Series User Manual

Operating
−24−


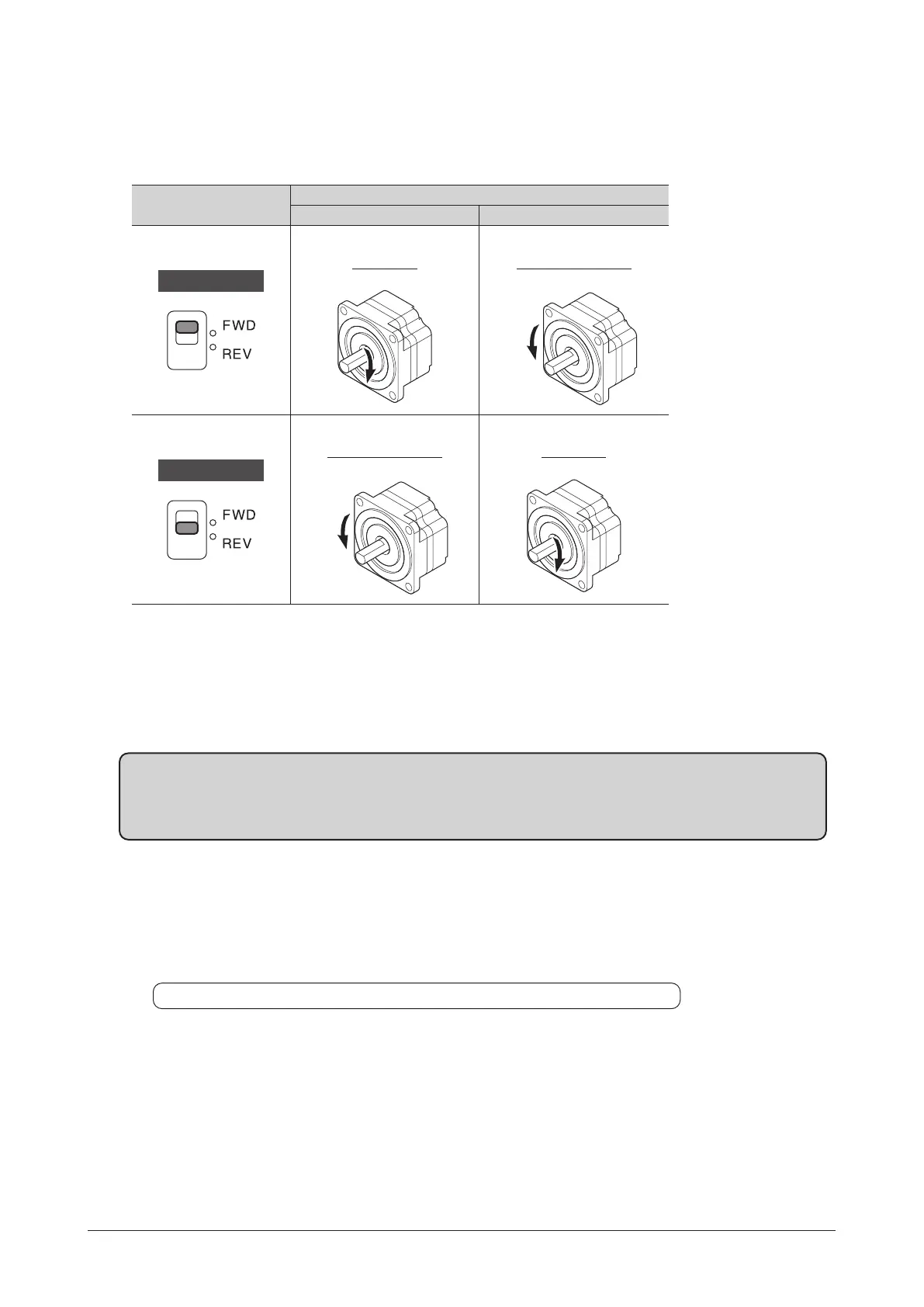

Switching the motor rotation direction
When turning the FWD input or REV input ON, the motor rotation direction varies depending on the state of the rotation
direction switch. The rotation direction shown in the gure below is as viewed from the motor output shaft.
Rotation direction switch
External operation input
FWD input ON REV input ON
"FWD" side
Motor rotation direction:
Clockwise
Motor rotation direction:
Counterclockwise
CW
CC
W
"
REV
" side
Motor rotation direction:
Counterclockwise
Motor rotation direction:
Clockwise
CC
W
CW
If the rotation direction switch is changed, the motor will decelerate to a stop and start rotating in the direction being
switched.
If the "external operation signal input" parameter is set to "RE," the rotation direction switch will be disabled.
The rotation direction at which "RE" was set is the same direction as the
"FWD" side
in the gure above.
Rotation direction of the gearhead output shaft
The rotation direction of the gearhead output shaft varies depending on the type or the gear ratio of the gearhead.
Check the operating manual of the motor for the rotation direction of the gearhead output shaft.
For switching the display or setting, refer to p.25 "8 Convenient functions."
