Panasonic TH-65EQ1W User Manual

17
English

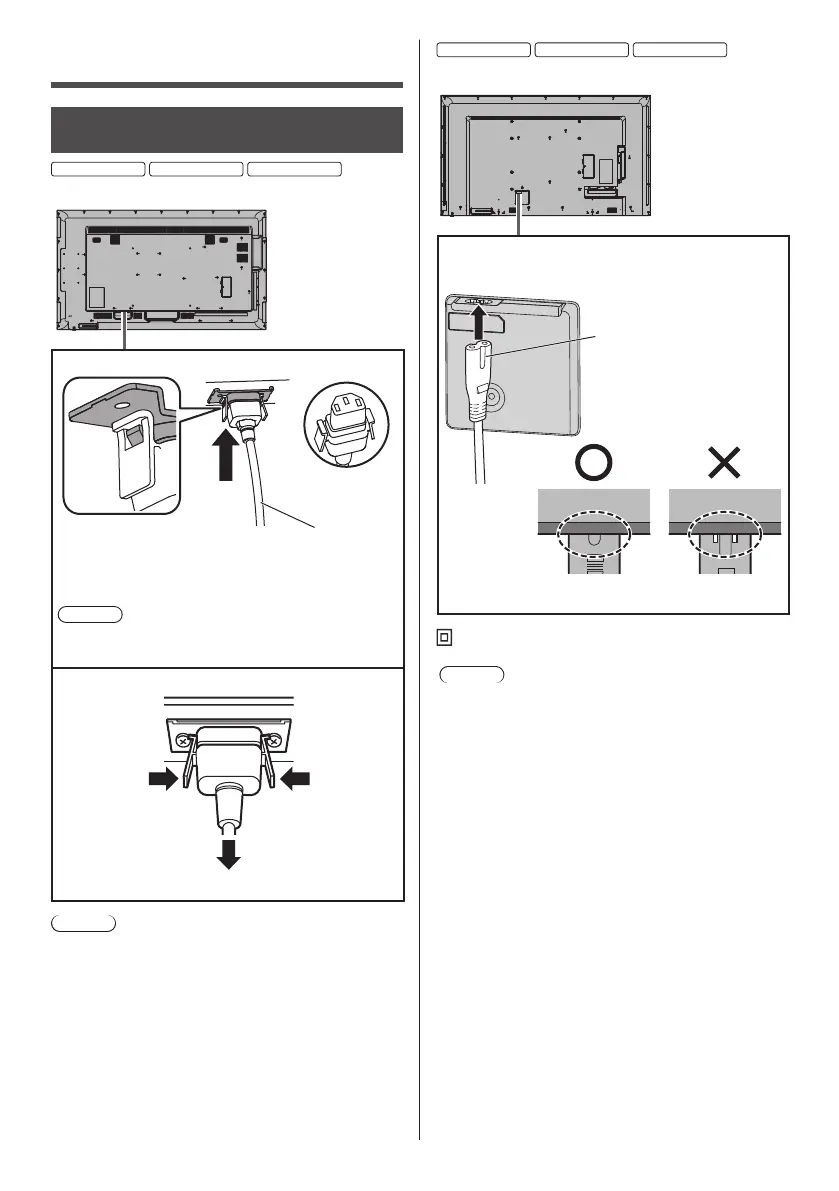

Connections
AC cord connection and fixing /
Cable fixing
86-inch model
75-inch model
65-inch model
Back of the unit
AC cord fixing
AC cord (supplied)
Plug the connector into the display unit.
Plug the connector until it clicks.
Note
●
Make sure that the connector is locked on both the
left and right sides.
Unplug the AC cord
Unplug the connector pressing the two knobs.
Note
●
Do not use an AC cord of which the knobs are
damaged. If it is used with the knobs damaged, a
bad connection may result between the AC cord
connector and the AC IN terminal. For the repair of
the AC cord, consult the dealer where you purchased
the product.
●
When disconnecting the AC cord, be absolutely sure
to disconnect the AC cord plug at the socket outlet
first.
●
The supplied AC cord is for this unit exclusive use. Do
not use this for other purposes.
55-inch model
50-inch model
43-inch model
Back of the unit
Insert the AC cord securely all the way seated on
the back side of the unit.
AC cord
(supplied)
Insert the plug until the line is hidden.
Class II equipment
Note
●
When disconnecting the AC cord, be absolutely sure
to disconnect the AC cord plug at the socket outlet
first.
●
The supplied AC cord is for this unit exclusive use.
Do not use this for other purposes.

Panasonic TH-65EQ1W Specifications

General

Response time	8 ms
Display diagonal	65 \
Display brightness	350 cd/m²
Display technology	VA
Native aspect ratio	16:9
LED backlighting type	Direct-LED
Contrast ratio (dynamic)	50000:1
Contrast ratio (typical)	4000:1
Display number of colors	1.06 billion colors
Display diagonal (metric)	163.9 cm
Active display area (W x H)	1428 x 803 mm
DisplayPorts quantity	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
VGA (D-Sub) input ports	1
RMS rated power	20 W
Orientation	Horizontal/Vertical
Product color	Black
Product design	Digital signage flat panel
Bezel width (side)	13.5 mm
Placement supported	Indoor
Bezel width (bottom)	14.5 mm
Panel mounting interface	400 x 400 mm
Purpose	Universal
HDCP version	2.2
Operating hours (hours/days)	18/7
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	0.5 W
Power consumption (typical)	185 W
Package depth	280 mm
Package width	1655 mm
Package height	1078 mm
Package weight	38000 g
Cables included	AC
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	82 mm
Width	1459 mm
Height	835 mm
Weight	27000 g
