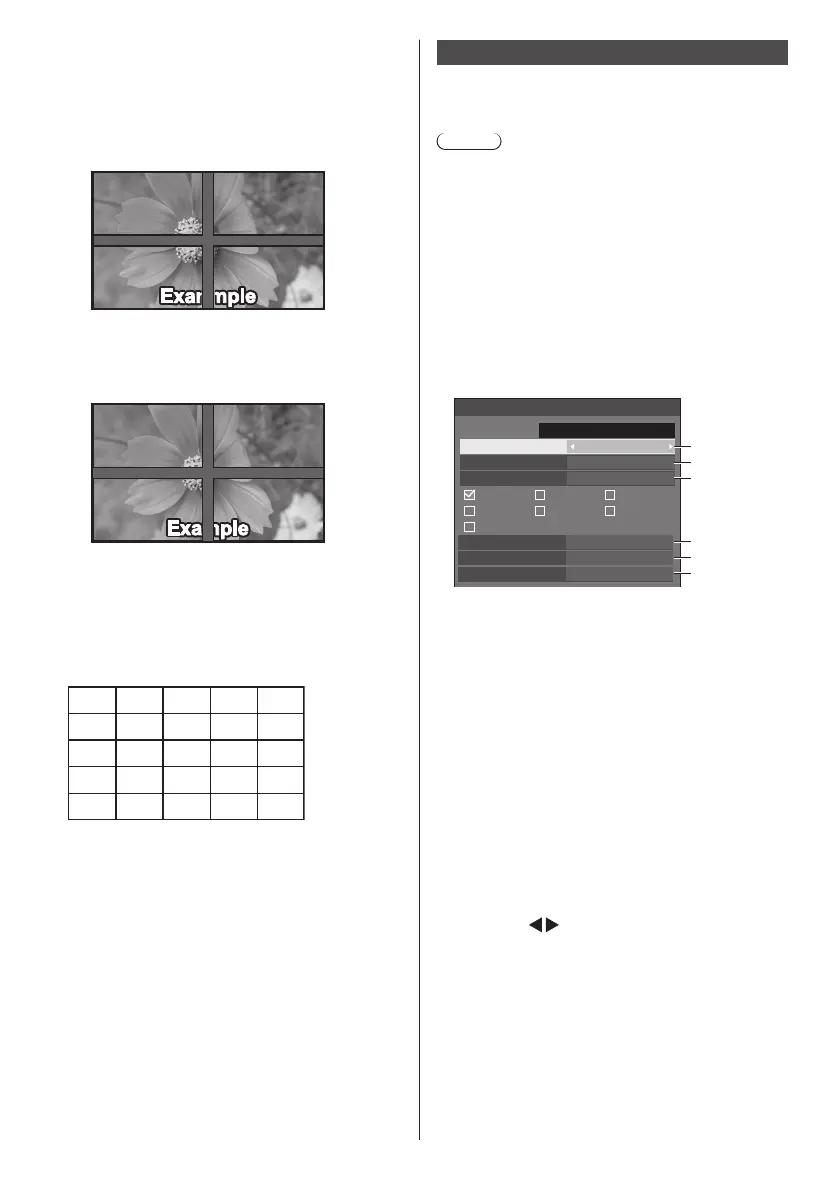

Panasonic TH-65EQ1W User Manual

63
English
■ [Bezel H adjustment] / [Bezel V adjustment]
Adjust the area of image hidden in the joint
horizontally and vertically respectively.
0 to 100
Display example:
Setting value: 0
Displays the entire image including the joint area.
(Suitable when displaying character information
on PC.)
Setting value: 100
Does not display the image of the joint area.
(Suitable when displaying motion pictures.)
■ [Location]
Assign the multi display position.
Example:
[Horizontal scale] [5], [Vertical scale] [5]
A1 A2 A3
B1 B2 B3
C1 C2 C3
A4
B4
C4
E1 E2 E3 E4
D1 D2 D3 D4
A5
B5
C5
D5
E5
Select from A1 - A5, B1 - B5, C1 - C5, D1 - D5, E1-
E5.
●
The displayed content for setting changes
according to the settings for the [Horizontal scale]
and [Vertical scale].
●
By setting [Multi display setting] to [Off], it is
possible to check the location on the screen while
the setting menu is displayed.
●
When [Image rotation] is set to [180 degrees] while
[Display orientation] is set to [Portrait], the enlarged
location also rotates. (see page 72)
Set up timer
Sets the program to turn the power on with the specified
time and video input, or to turn the power off at the
specified time. Up to 20 programmes can be set.
Note
●
When the current time is displayed as [- -], set [Date
and time] before setting [Set up timer]. (see page 64)
●
When multiple programs are set at the same time,
the program with the smallest program number is
enabled.
●
If [Power mode] is set to [Power on], executing the
program at power-on will switch to the input set for
[Input].
[Set up timer] - submenu screen
Setting Example:
Program 1, Every Monday, 12:00,
Power On, Input: HDMI1
12:00
Set up timer
Program
Timer function
1
On
Power on
HDMI1
Day
MONDAY TUESDAY
WEDNESDAY
THURSDAY FRIDAY SATURDAY
SUNDAY
Power mode
Time
Input
Custom
1
2
3
4
5
6
10:00 MONDAY 2018/01/01
1 Set the program number.
2 To execute the program, set to [On].
The program is disabled when [Off] is set.
3 Set the day.
[Everyday]:
Executes the program every day.
[Weekday]:
Executes the program from every Monday to
Friday.
[Weekend]:
Executes the program on Saturdays and
Sundays.
[Custom]:
Executes the program on selected days. (Refer
to “Customized setting for days of the week”.)
4 Set the time.
Pressing
once changes time 1 minute.
Pressing continuously changes time by 15
minutes.
5 Set the power On/Off.
6 Set the input.

Panasonic TH-65EQ1W Specifications

General

Response time	8 ms
Display diagonal	65 \
Display brightness	350 cd/m²
Display technology	VA
Native aspect ratio	16:9
LED backlighting type	Direct-LED
Contrast ratio (dynamic)	50000:1
Contrast ratio (typical)	4000:1
Display number of colors	1.06 billion colors
Display diagonal (metric)	163.9 cm
Active display area (W x H)	1428 x 803 mm
DisplayPorts quantity	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
VGA (D-Sub) input ports	1
RMS rated power	20 W
Orientation	Horizontal/Vertical
Product color	Black
Product design	Digital signage flat panel
Bezel width (side)	13.5 mm
Placement supported	Indoor
Bezel width (bottom)	14.5 mm
Panel mounting interface	400 x 400 mm
Purpose	Universal
HDCP version	2.2
Operating hours (hours/days)	18/7
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	0.5 W
Power consumption (typical)	185 W
Package depth	280 mm
Package width	1655 mm
Package height	1078 mm
Package weight	38000 g
Cables included	AC
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	82 mm
Width	1459 mm
Height	835 mm
Weight	27000 g
