Panasonic TH-65EQ1W User Manual

31
English

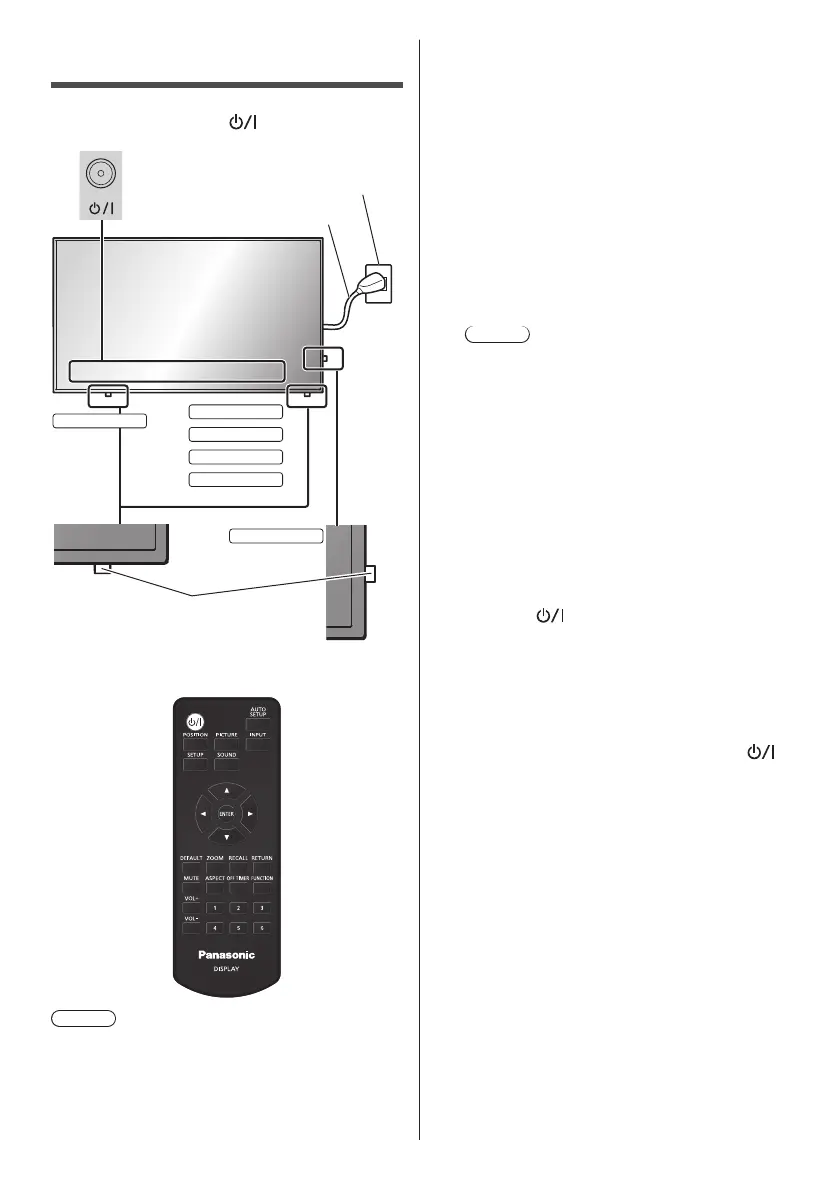

Basic Controls
MUTE
Remote Control Sensor /
Power Indicator
Main Power On / Off button (
)
(Back of the unit)
AC socket outlet
AC cord (supplied)
75-inch model
65-inch model
55-inch model
50-inch model
43-inch model
86-inch model
Operate pointing the remote control directly at the unit’s
Remote Control Sensor.
Note
●
For normal use, pull out the remote control sensor
from the edge side of the main unit by operating the
lever on the rear panel. (see page 28)
●
Do not put an obstacle between the remote control
sensor of the main unit and the remote control.
●
Operate the remote control in front of the remote
control sensor or from the area where the sensor can
be seen.
●
When directly aiming the remote control at the remote
control sensor of the main unit, the distance from
the front of remote control sensor should be approx.
7 m or less. Depending on the angle, the operation
distance may be shorter.
●
Do not subject the remote control sensor of the main
unit to the direct sunlight or strong fluorescent light.
1
Connect the AC cord plug to the
Display.
(see page 17)
2
Connect the plug to the socket outlet.
Note
●
Main plug types vary between countries. The
power plug shown at left may, therefore, not be
the type fitted to your set.
●
When disconnecting the AC cord, be absolutely
sure to disconnect the AC cord plug at the
socket outlet first.
●
The settings may not be saved if the power plug
is disconnected immediately after changing
settings with on-screen menu. Disconnect the
power plug after a enough period of time. Or,
disconnect the power plug after turning the
power off with the remote control, RS-232C
control or LAN control.
3
Press the <Main Power On / Off
button> ( ) on the unit to turn the
power of the unit on.
●
Power Indicator: Green (Picture is displayed.)
●
When the power of the unit is on, the power
indicator lights up and remote control operation is
possible.
●
When the power indicator is lit, it is not necessary
to press the <Main Power On / Off button> (
)
on the unit. Operate the remote control so that the
power indicator turns green (picture is displayed).

Panasonic TH-65EQ1W Specifications

General

Response time	8 ms
Display diagonal	65 \
Display brightness	350 cd/m²
Display technology	VA
Native aspect ratio	16:9
LED backlighting type	Direct-LED
Contrast ratio (dynamic)	50000:1
Contrast ratio (typical)	4000:1
Display number of colors	1.06 billion colors
Display diagonal (metric)	163.9 cm
Active display area (W x H)	1428 x 803 mm
DisplayPorts quantity	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
VGA (D-Sub) input ports	1
RMS rated power	20 W
Orientation	Horizontal/Vertical
Product color	Black
Product design	Digital signage flat panel
Bezel width (side)	13.5 mm
Placement supported	Indoor
Bezel width (bottom)	14.5 mm
Panel mounting interface	400 x 400 mm
Purpose	Universal
HDCP version	2.2
Operating hours (hours/days)	18/7
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	0.5 W
Power consumption (typical)	185 W
Package depth	280 mm
Package width	1655 mm
Package height	1078 mm
Package weight	38000 g
Cables included	AC
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	82 mm
Width	1459 mm
Height	835 mm
Weight	27000 g
