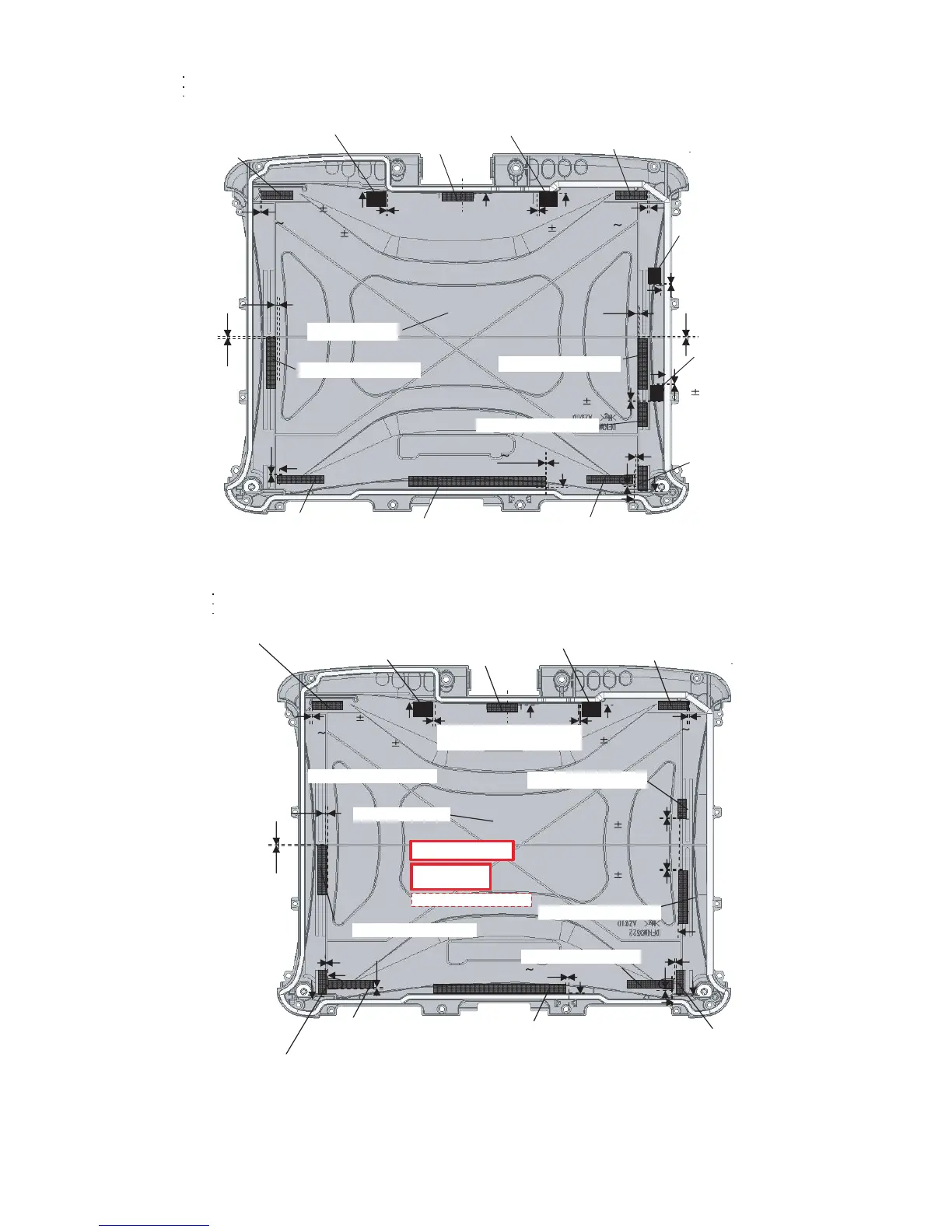

n Assembly of LCD Rear Case (Applicable Model : Touch Screen Model)
n Assembly of LCD Rear Case (Applicable Model : Digitizer Model)
0 1mm
0 1mm
0 1mm
0 0.5mm
0.5mm
0.5mm
Attach it between marking lines.
0 to 1 mm from one of the lines.
Marking line
0.5mm
Marking line
Marking line
0.5mm
Marking line
Marking line
(Note)
Arrow without specified measurement: 0 to 0.5 mm
Allowable right/left displacement of the Cushion: max. 0.5 mm
Attach and apply the load 30 to 40N (3.0 to 4.0 Kgf).
LCD Rear Cushion F
LCD Rear Cushion F
LCD Rear Cushion F
LCD Rear Cushion G
LCD Rear Cushion G
LCD Rear Cushion ALCD Rear Cushion A
LCD Rear Cushion B
LCD Rear Cushion B
LCD Rear Cushion C
LCD Rear Cushion C
LCD Rear Cushion D
LCD Rear Cushion ELCD Rear Cushion E
LCD Rear Assy
0 3mm0 3mm
0 1mm
0 1mm
0.5mm
0.5mm
0.5mm
0 0.5mm
0.5mm
LCD Rear Ass’y
LCD Rear Cushion F
LCD Rear Cushion F
LCD Rear Cushion F
LCD Rear Cushion A
LCD Rear Cushion A
LCD Rear Cushion A
LCD Rear Cushion C
LCD Rear Cushion C
LCD Rear Cushion C
LCD Rear Cushion C
LCD Rear Cushion D
LCD Rear Cushion E
LCD Rear Cushion E
LCD Rear Cushion C
Marking line
Marking line
Marking line
Marking line
Attach it between marking lines.
0 to 1 mm from one of the lines.
Safety Working
Safety critical component
Important Parts
for Safety
(Note)
Arrow without specified measurement: 0 to 0.5 mm
Allowable right/left displacement of the Cushion: max. 0.5 mm
Attach and apply the load 30 to 40N (3.0 to 4.0 Kgf).
