9-23

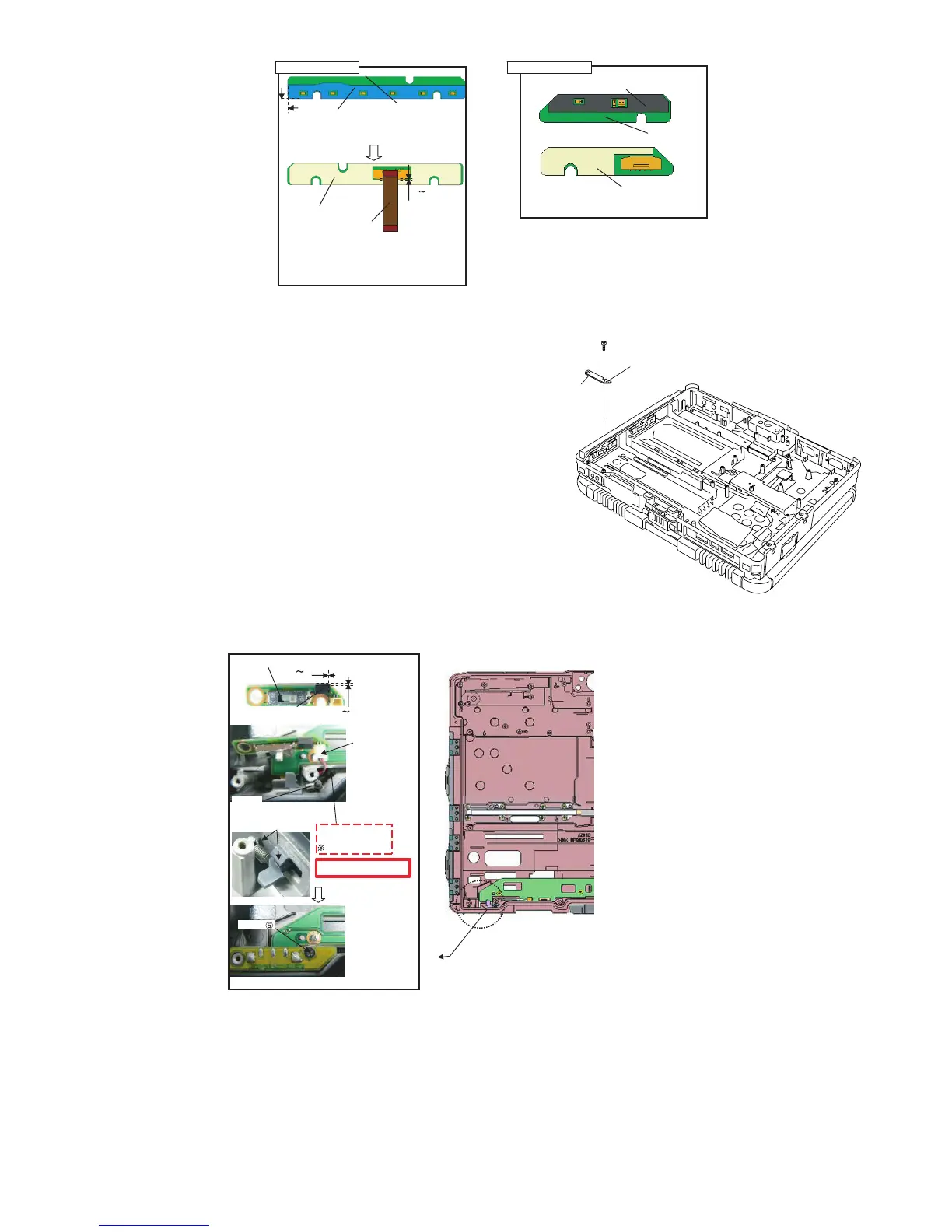

n Assembly of the left LED PCB and right LED PCB
9.2.9. Setting the Power SW PCB
1. Connect the Cable to the Connector. (CN9)
2. Fix the Power SW PCB using the Screw. <N1>
Screws <N1> : DFHE5025XA
n Assembly of the Power SW PCB
LED(L) PCB Ass’y
LED(R) PCB Ass’y
0 3mm
Back side
LED Light Guide Sheet(L)
LED PCB Tape(L)
LED PCB(L)
LED(L) FPC
LED Light Guide Sheet(R)
LED PCB(R)
LED PWB Tape(R)
Match the edge and attach it.
Match the edge and attach it.
Match the edge and attach it.
Avoid running over the LED.
Match the edge and attach it.
Ensure it does not come over the end
of the Board by 0.5 mm or more.
Avoid coming over it.
<N1>
Connector(CN9)
Power SW
PCB
1
2
Power SW PCB
Power Spring Sheet
Spring
Screw
Attach
Insert
Insert the Cushion
between the ribs.
Avoid coming over
Insert it to Knob and
Pin on the Top Case
Fold the board back and fix with screw.
(Note) Arrow without specified measurement: 0 to 0.5 mm
0 1mm
0 1mm
