9-30

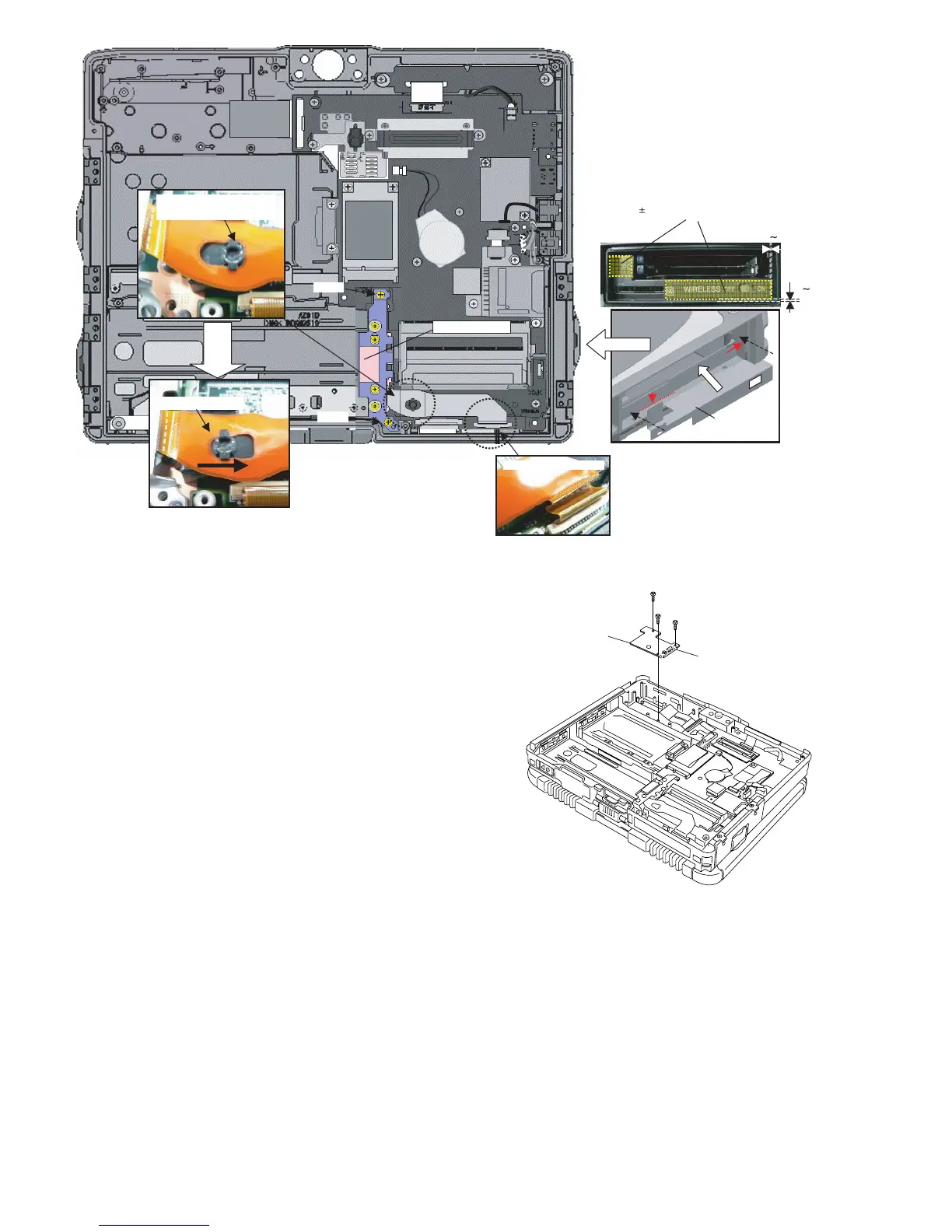

9.2.12. Setting the Audio PCB
1. Connect the Cable to the Connector. (CN901)
2. Fix the Audio PCB using the 3 Screws. <N9>
Note:
Tighten the Screws in the numbered order (No1 to No3).
Screws <N9> : DRSB2+5FKL
Screw
Screw
SD Blind Sheet
Battery FPC Ass’y
Ensure that both top and
bottom are hooked.
Slide the Battery FPC Ass’y
Insert the FPC as illustrated
Side surface
Insert the end of the Sheet into the space between the Main
Board and the bottom of the PCMCIA Slot.
(Left and Right 0.5mm, Apply 20 to 30N (2.0 to 3.0 Kgf))
Attach it fitting to the right.
0 0.5mm
0 0.5mm
<N9>:No1
<N9>:No.2
Audio PCB
Connector(CN901)
<N9>:No.3
To Next Page
