BODY PANELS
12
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles
BODY PANELS

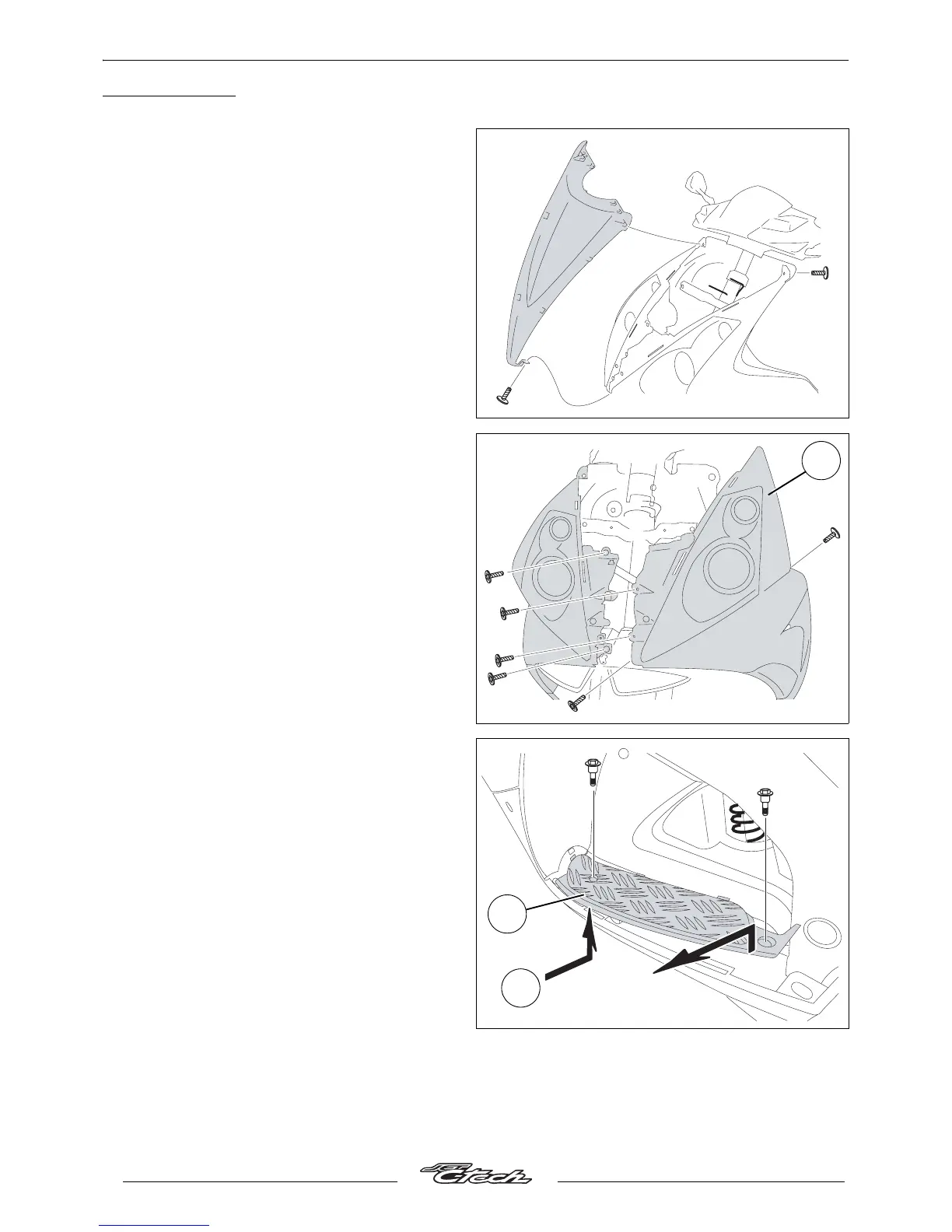

 Removal of the front shield panel.
Procedure 1.
- Remove the front upper shield panel
(3 screw).
 Removal of front lower shield panels.
Procedure 2.
- Remove the front lower left shield panel (1)
(3 screws), including the 2 fixing it to the RH
shield panel
- Remove the front lower RH shield panel
(3 screw).
 Removing the footboard and the LH
tunnel.
Procedure 3.
- Remove the 2 screws that hold the LH
footboard (1).
- Unclip the outer part of the footboard starting
at the rear.
- Unclip the footboard from the frame bottom.
- Raise the footboard by levering on the front
end (A) to release it from the rear shield panel.
