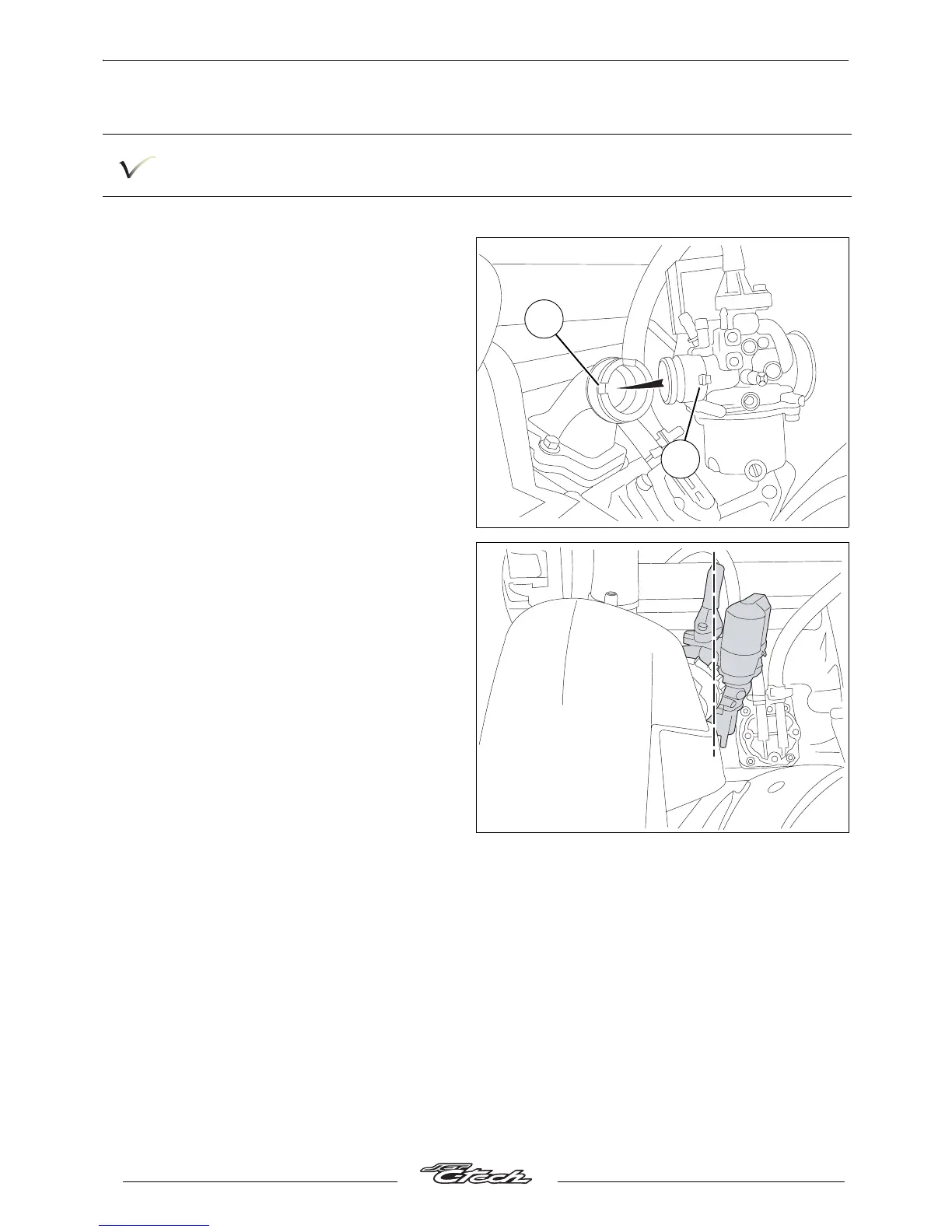

î Procedure to position the carburettor.
To make sure the carburettor is correctly positioned, it is recommended that you follow the
following procedure.
- Fit the carburettor by making sure its pin is
correctly positioned (A) in the recess (B)
provided in the intake pipe.
- Click the collar.
- Fit the air filter on the carburettor.
- Fit and tighten the screw that secures the air
filter to make sur it is positioned.
- Clip theclick collar by making sure the
carburettor is level.
- Remove the air filter attachment screw.
- Connect the lubrication and fuel supply hose.
- Fit the slide valve and the chamber cap.
- Fit the rear mudguard.
- Fit the compartment.
A
B
